Intake Manifold Cover Replacement - Rear

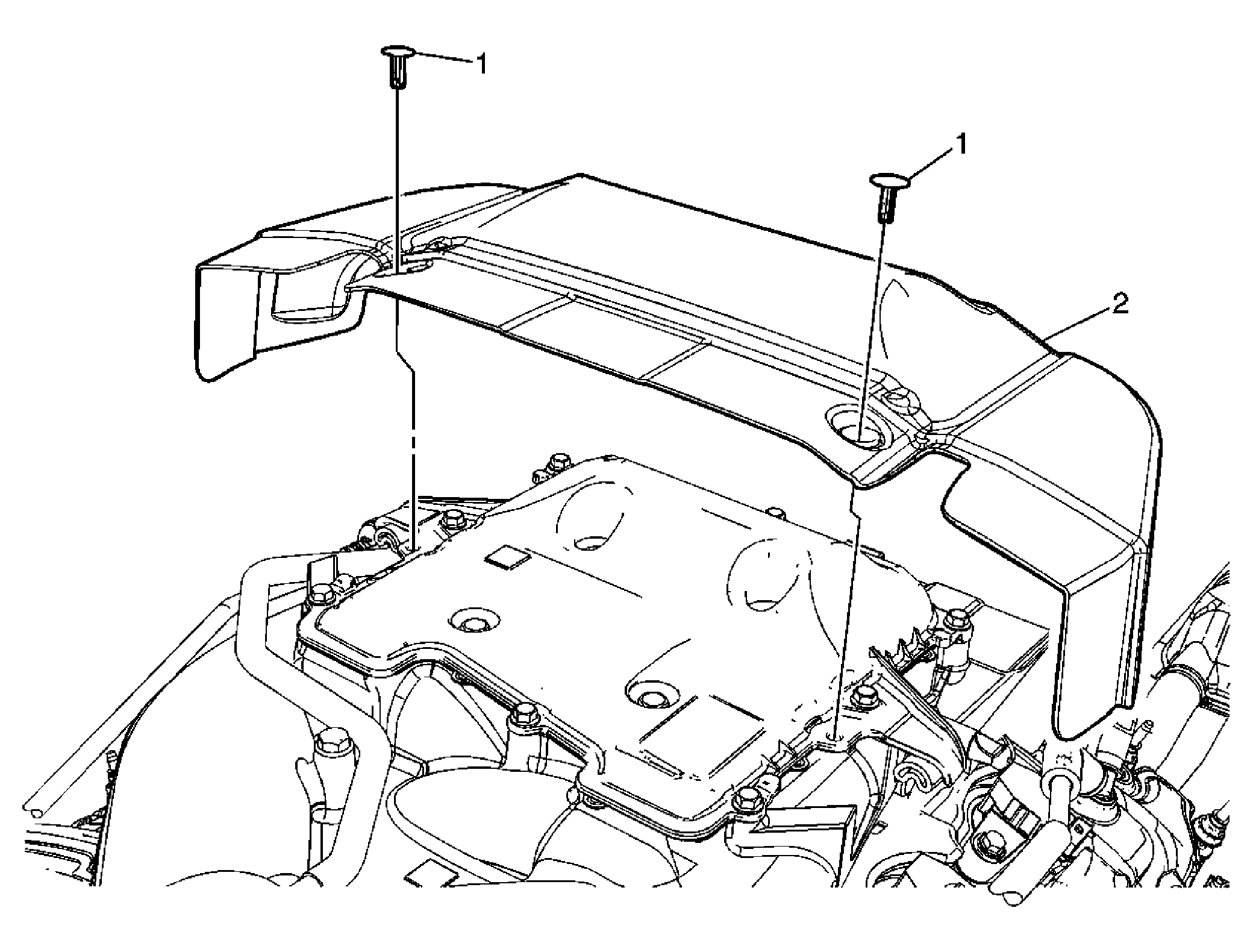

Fig 1: Intake Manifold Cover - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .
1	Intake Manifold Cover Fastener (Qty: 2)
2	Intake Manifold Cover Procedure:  Transfer components as necessary.
