Headlamp Replacement (OUTLOOK)

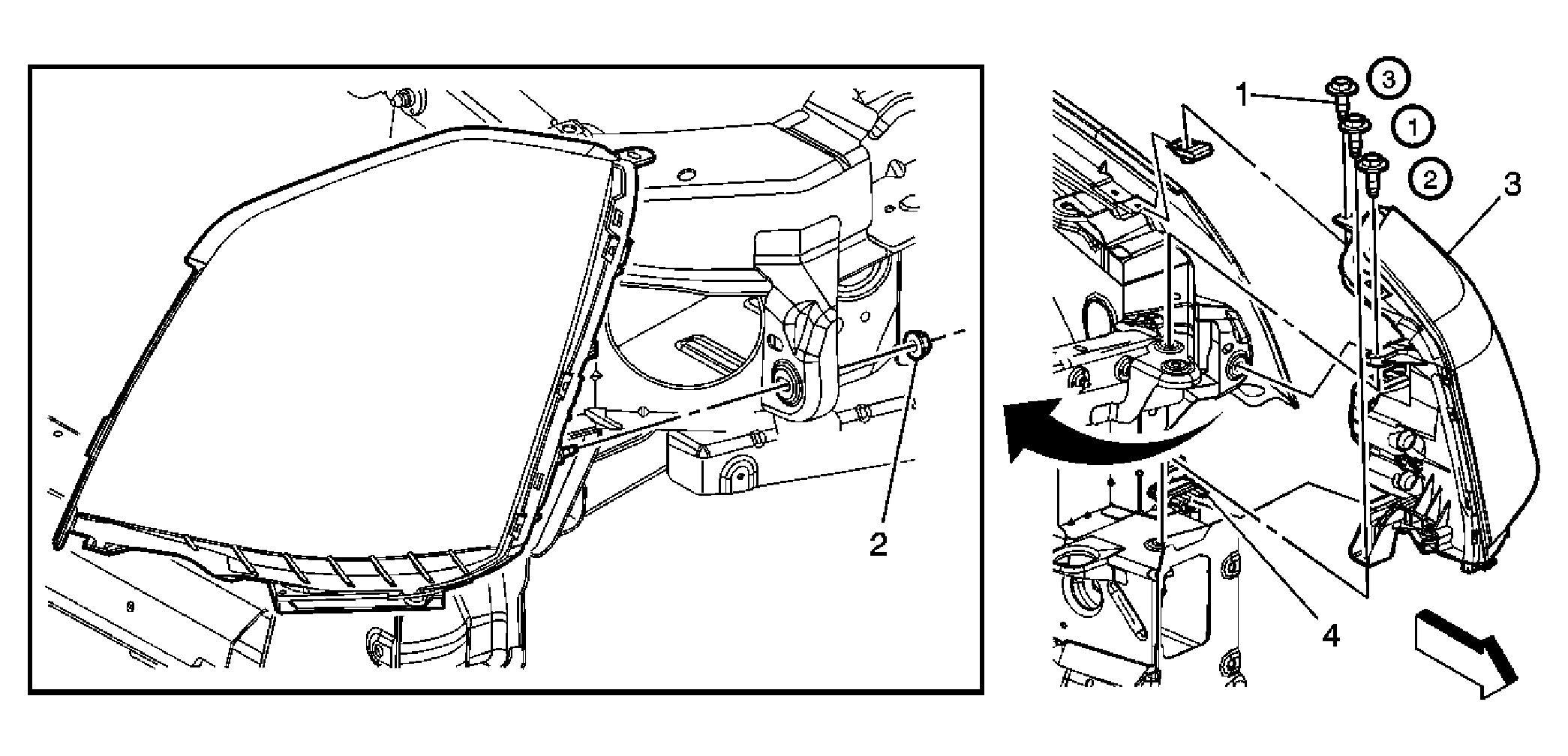

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Acadia) or Front Bumper Fascia Replacement (Enclave) or Front Bumper Fascia Replacement (OUTLOOK) or Front Bumper Fascia Replacement (Traverse) . |
|
| 1 | Headlamp Assembly Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Tip: Tighten the fasteners in sequence as shown. Tighten: 6 N.m (53 lb in) |
| 2 | Headlamp Assembly Nut Tighten: 6 N.m (53 lb in) |
| 3 | Headlamp Assembly Procedure: Pull outward on the housing in order to disconnect the electrical connection at the lower rear edge of the lamp. |
| 4 | Electrical Harness Connector Procedure: Disconnect the electrical connector from the headlamp assembly. |
