Front Bumper Fascia Replacement (OUTLOOK)

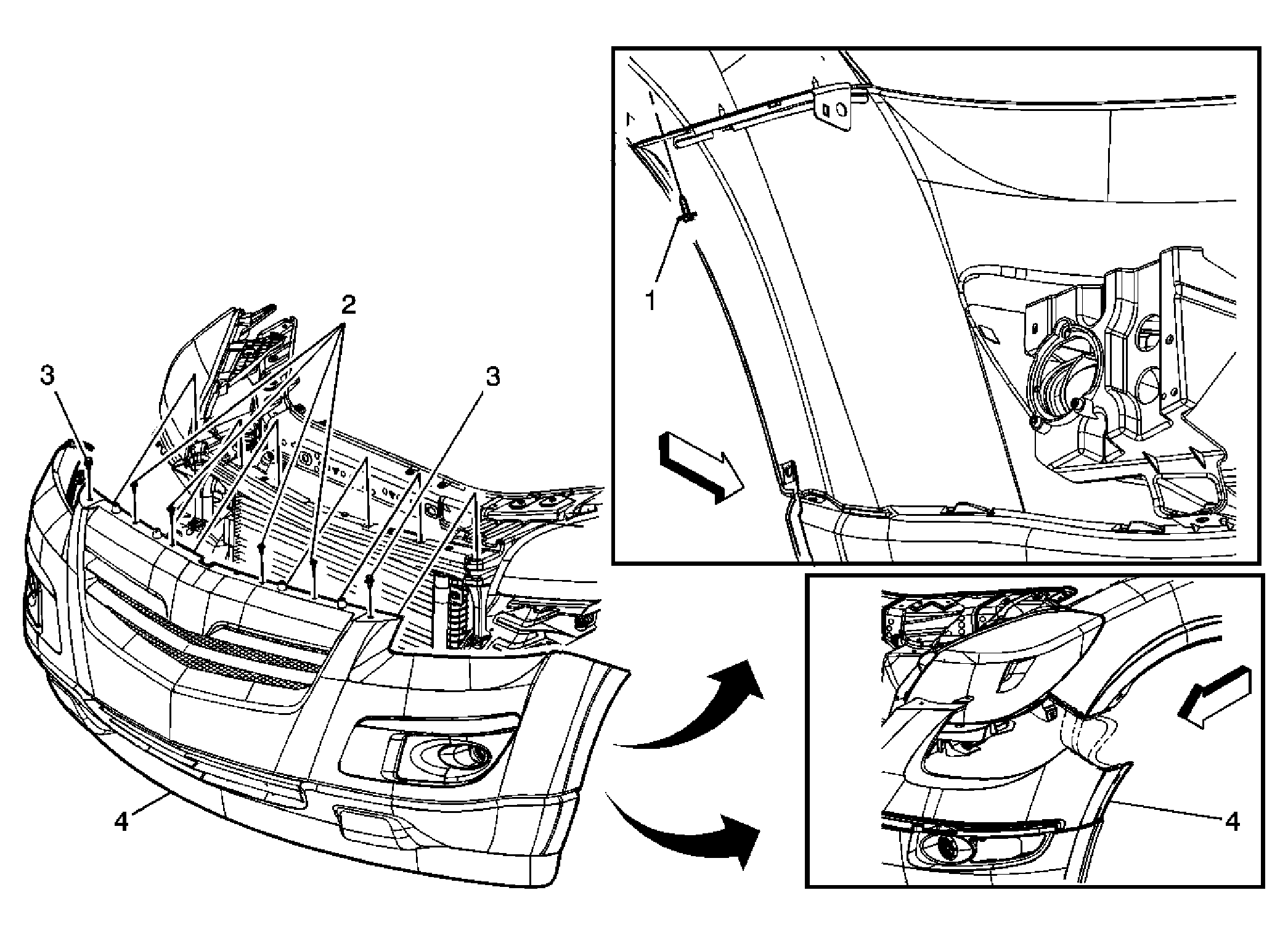

Fig 1: View Of Front Bumper Fascia (Outlook)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front compartment sight shields. Refer to Front Compartment Sight Shields Replacement (Acadia) or Front Compartment Sight Shields Replacement (Enclave) or Front Compartment Sight Shields Replacement (OUTLOOK) or Front Compartment Sight Shields Replacement (Traverse) . Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement (Traverse) or Front Wheelhouse Front Liner Replacement (Outlook) .
1	Front Fascia Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure: Reach underneath the fender to access the bolts. Tighten: 2 N.m (18 lb in)
2	Front Fascia Retainer (Qty: 4)
3	Front Fascia Bracket Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
4	Front Fascia Procedure Drill out the license plate bracket rivets, if equipped. Disconnect any electrical connectors. Transfer parts as needed. Pull forward to remove the front bumper fascia.
