Side Window Defogger Outlet Duct Replacement

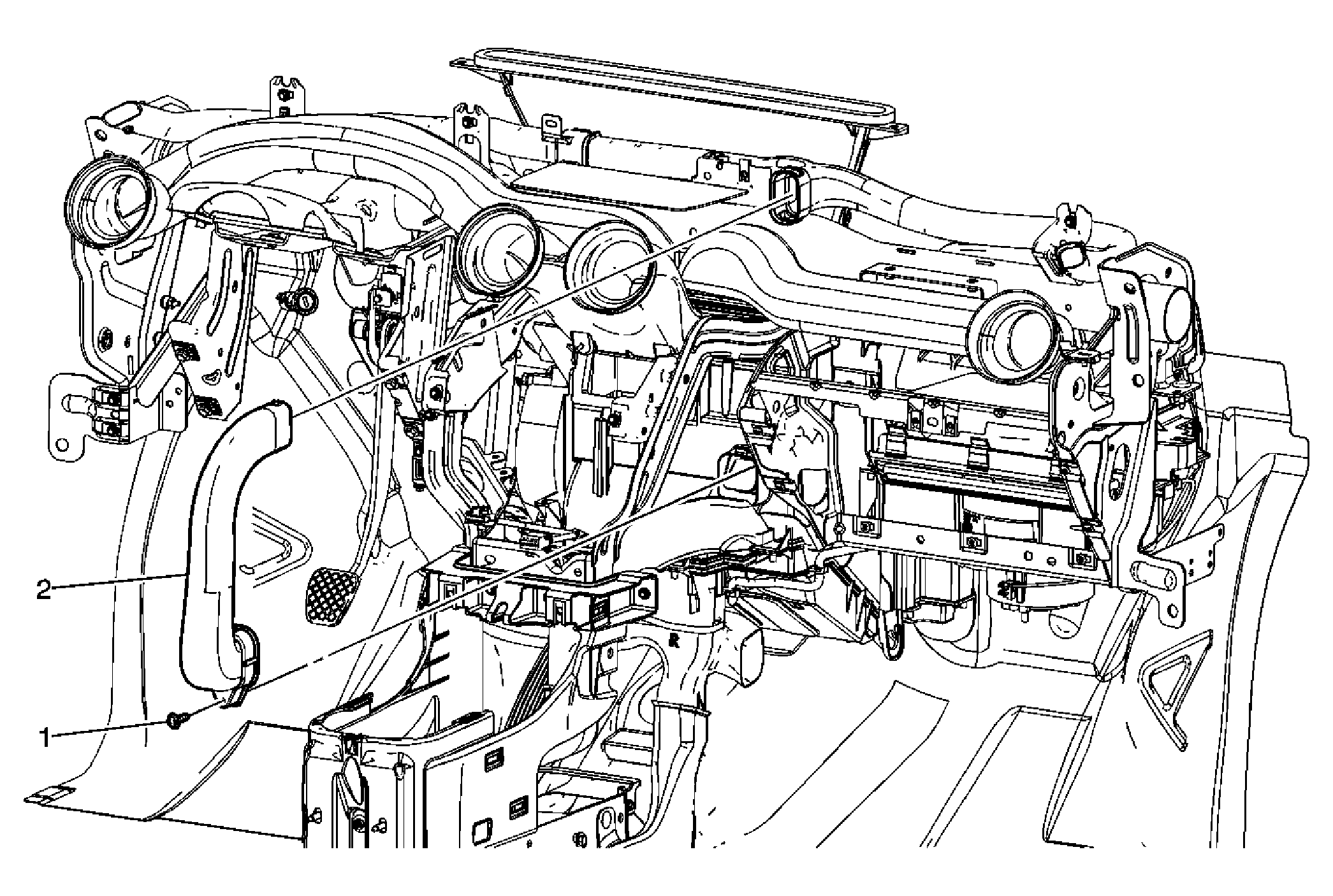

Fig 1: View Of Side Window Defogger Outlet Duct
GM1628090Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the lower instrument panel (I/P) retainer. Refer to Instrument Panel Retainer Replacement .
1 Side Window Defogger Outlet Duct Assembly Screw

Tighten:  1.5 N.m (13 lb in)
2 Side Window Defogger Outlet Duct Assembly
