Front Seat Armrest Replacement

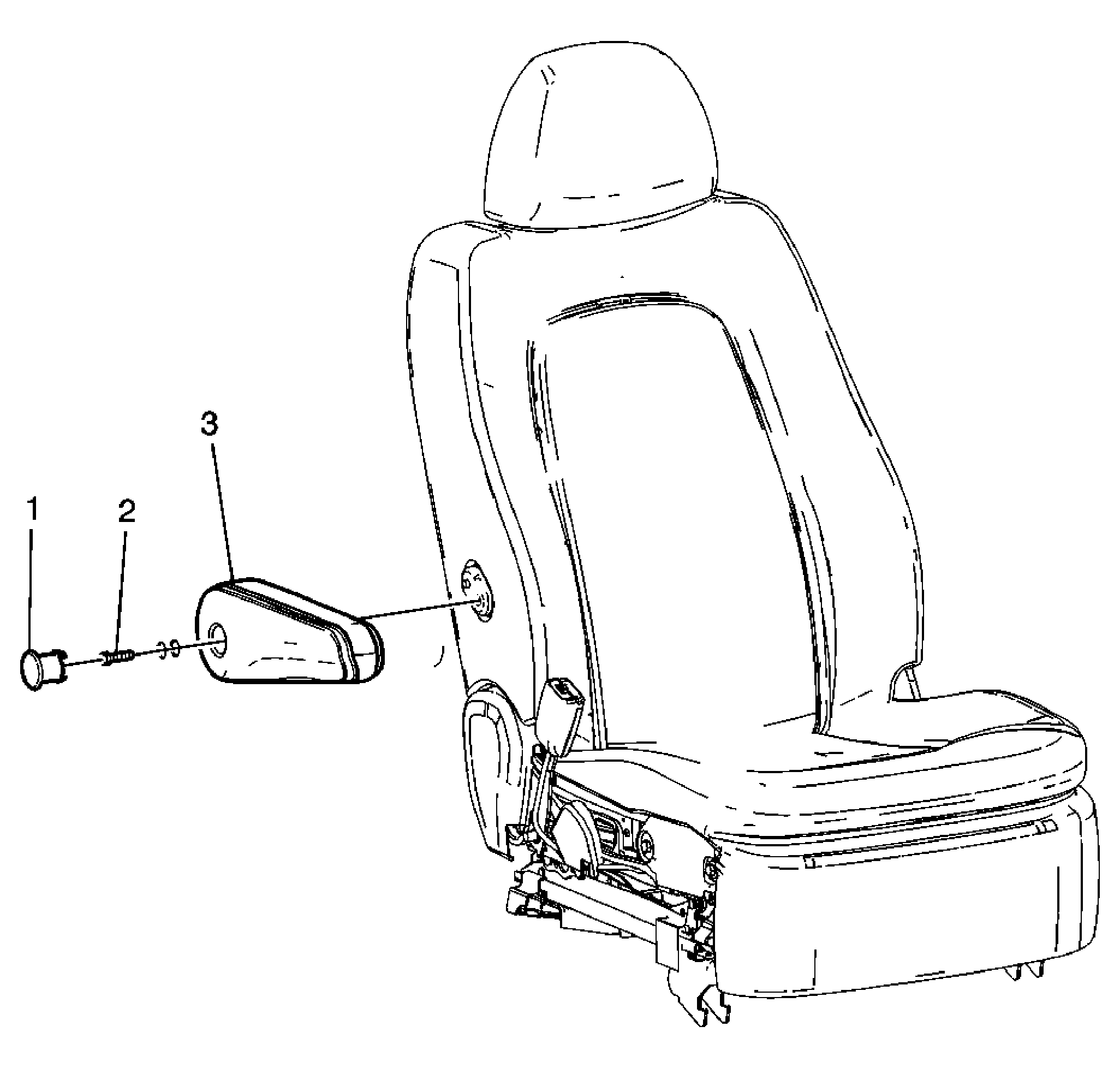

Fig 1: Front Seat Armrest Replacement
GM1592548Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cap, Seat Armrest
2 Bolt, Seat Armrest
Tip:  There are 2 washers on the outboard side of the armrest and a bushing on the inboard side of the armrest.
NOTE: Refer to Fastener Notice .

Tighten:  9 N.m (80 lb in)
3 Armrest Assembly, Seat
