Rear Seat Belt Buckle Replacement (Monte Carlo)

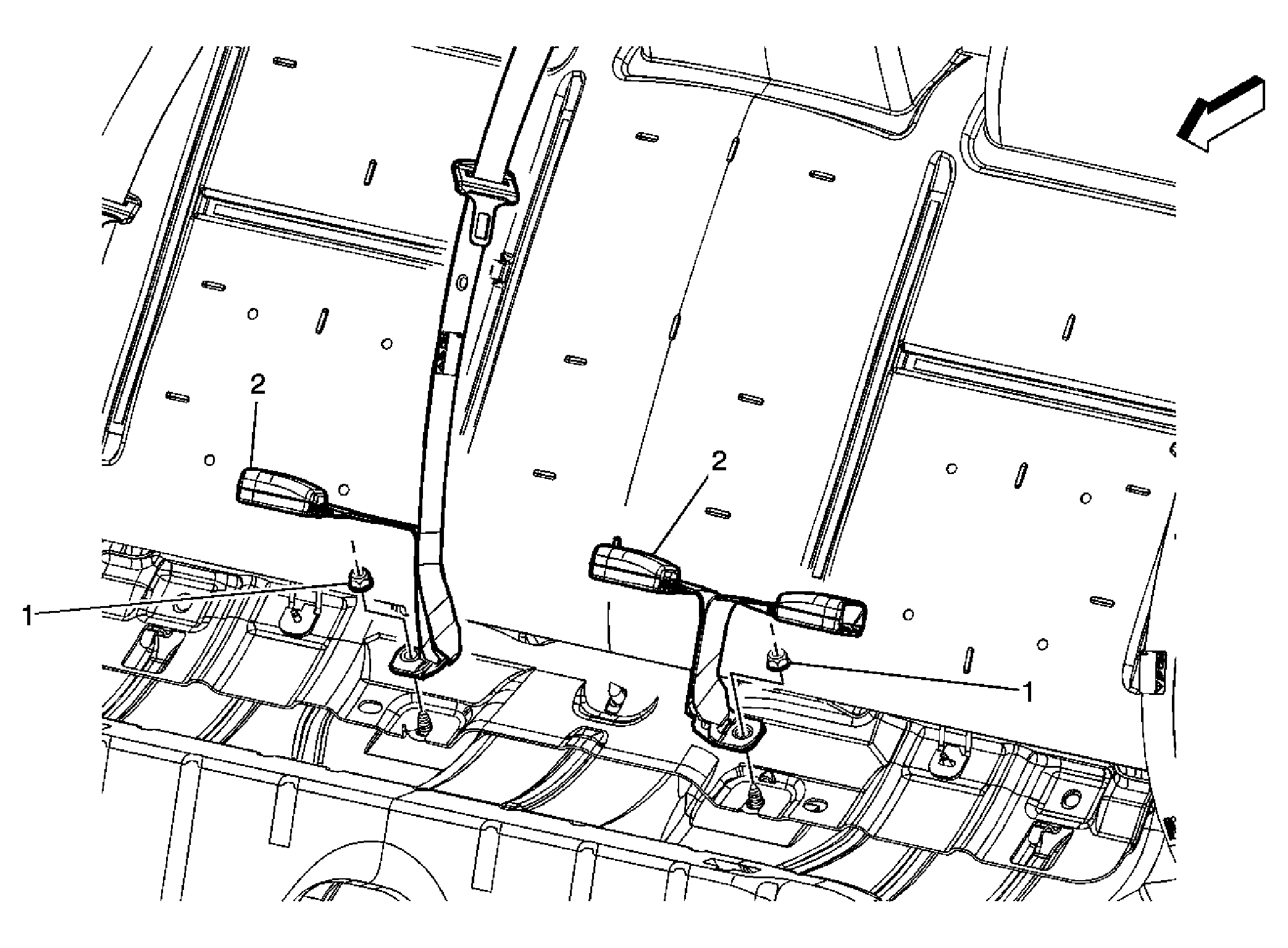

Fig 1: Identifying Rear Seat Belt Buckle Components (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement (Impala) or Rear Seat Cushion Replacement (Monte Carlo) .
1	Rear Seat Belt Buckle Nut (Qty: 2) Tighten: 42 N.m (31 lb ft)
2	Rear Seat Belt Buckle Assembly
