Rear Seat Belt Buckle Replacement (Impala with AM9)
Rear Seat Belt Buckle Replacement (Impala with AM9)

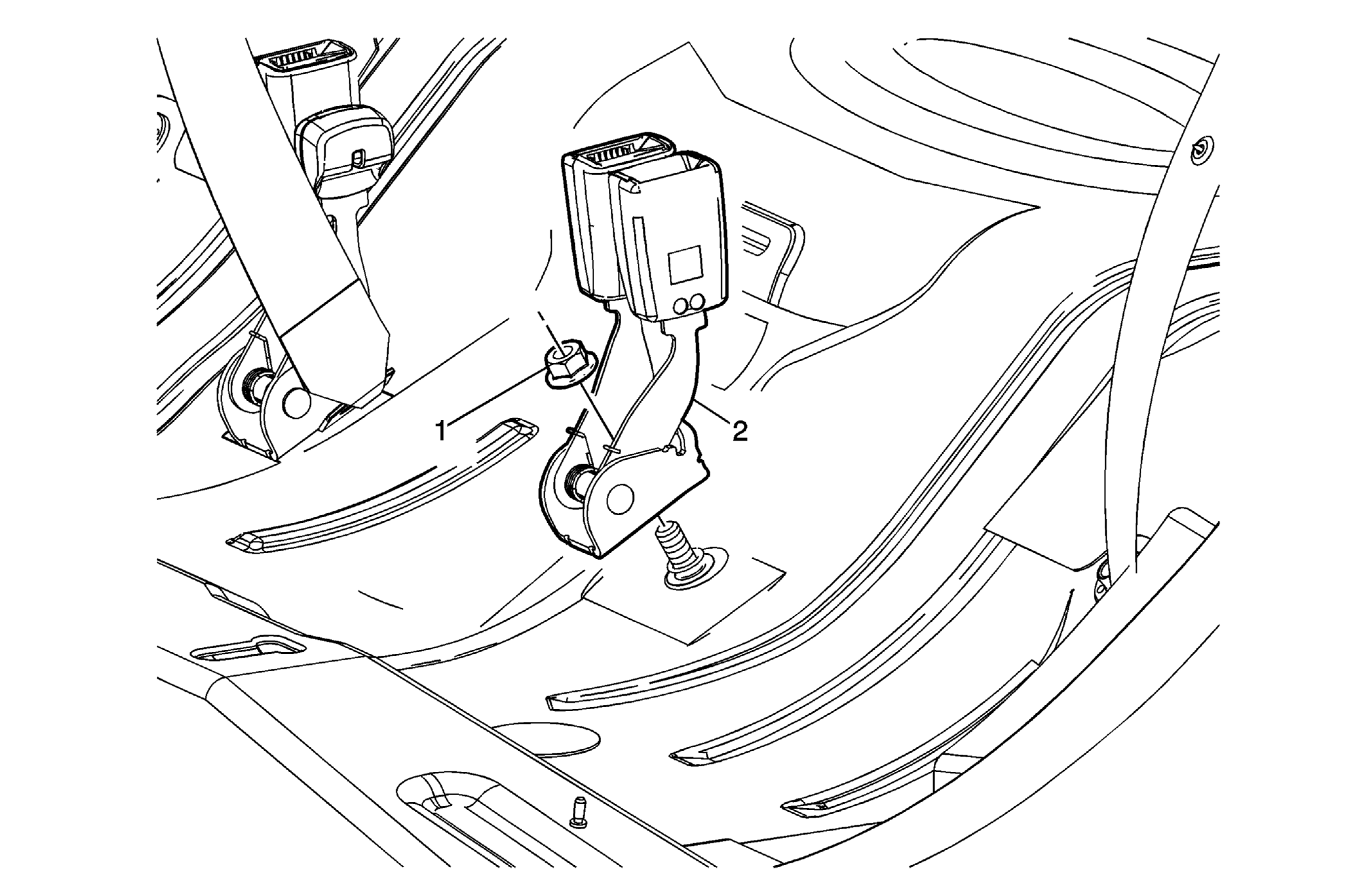

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement (Impala)
or Rear Seat Cushion Replacement (Monte Carlo)
. |
|
| 1 | Nut, Seat Belt Buckle Tighten: 42 N.m (31 lb ft) |
| 2 | Buckle, Seat Buckle Assembly |
