Front Floor Console Cup Holder Replacement (Impala)

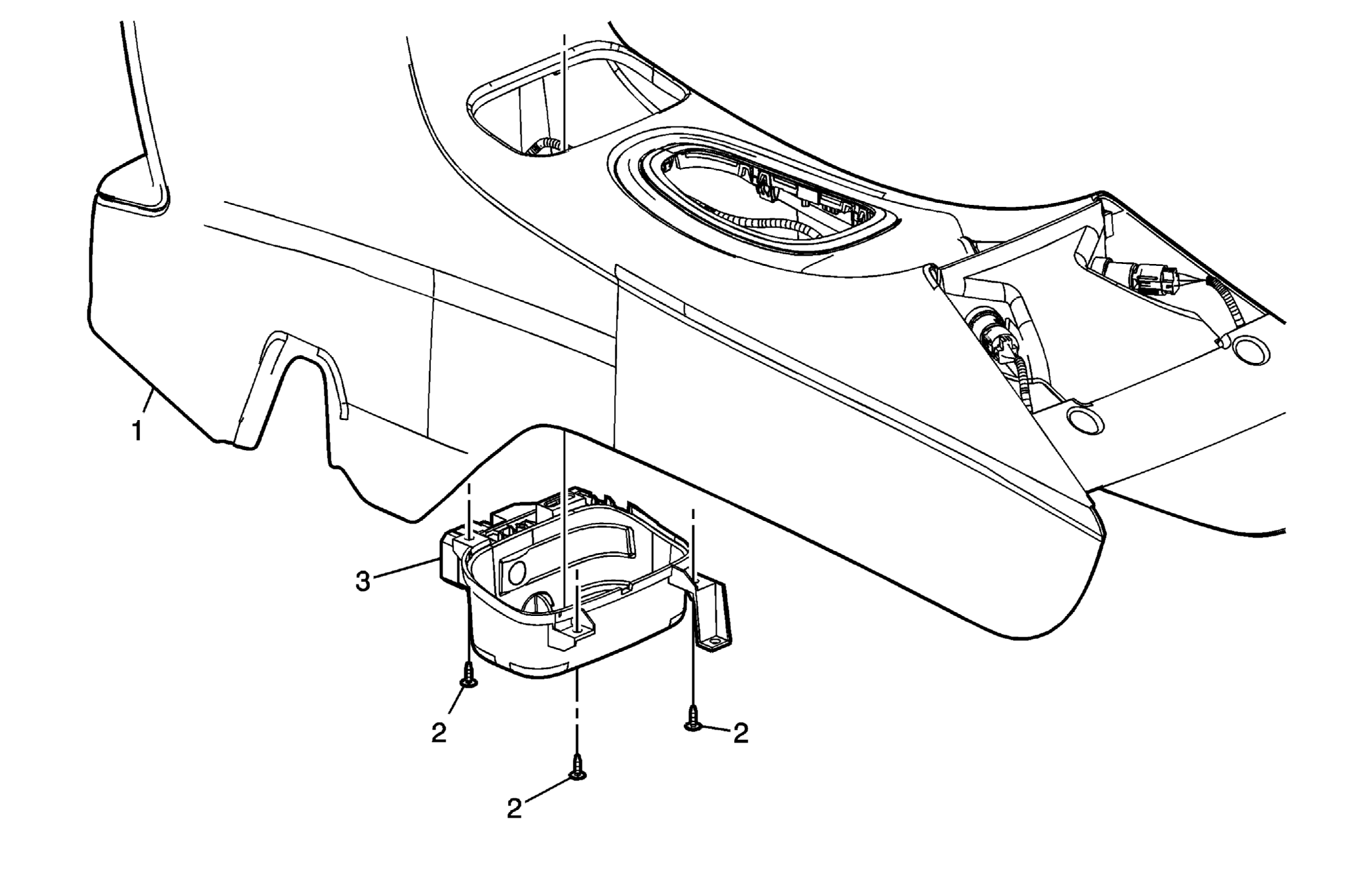

Fig 1: Identifying Front Floor Console Cupholder Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Front Floor Console Tip: Remove the front floor console. Refer to Front Floor Console Replacement (Impala) or Front Floor Console Replacement (Monte Carlo) .
2	Front Floor Console Cup Holder Screw (Qty: 3) Tighten: 2 N.m (18 lb in)
3	Front Floor Console Cup Holder Assembly
