Front Floor Console Replacement (Monte Carlo)

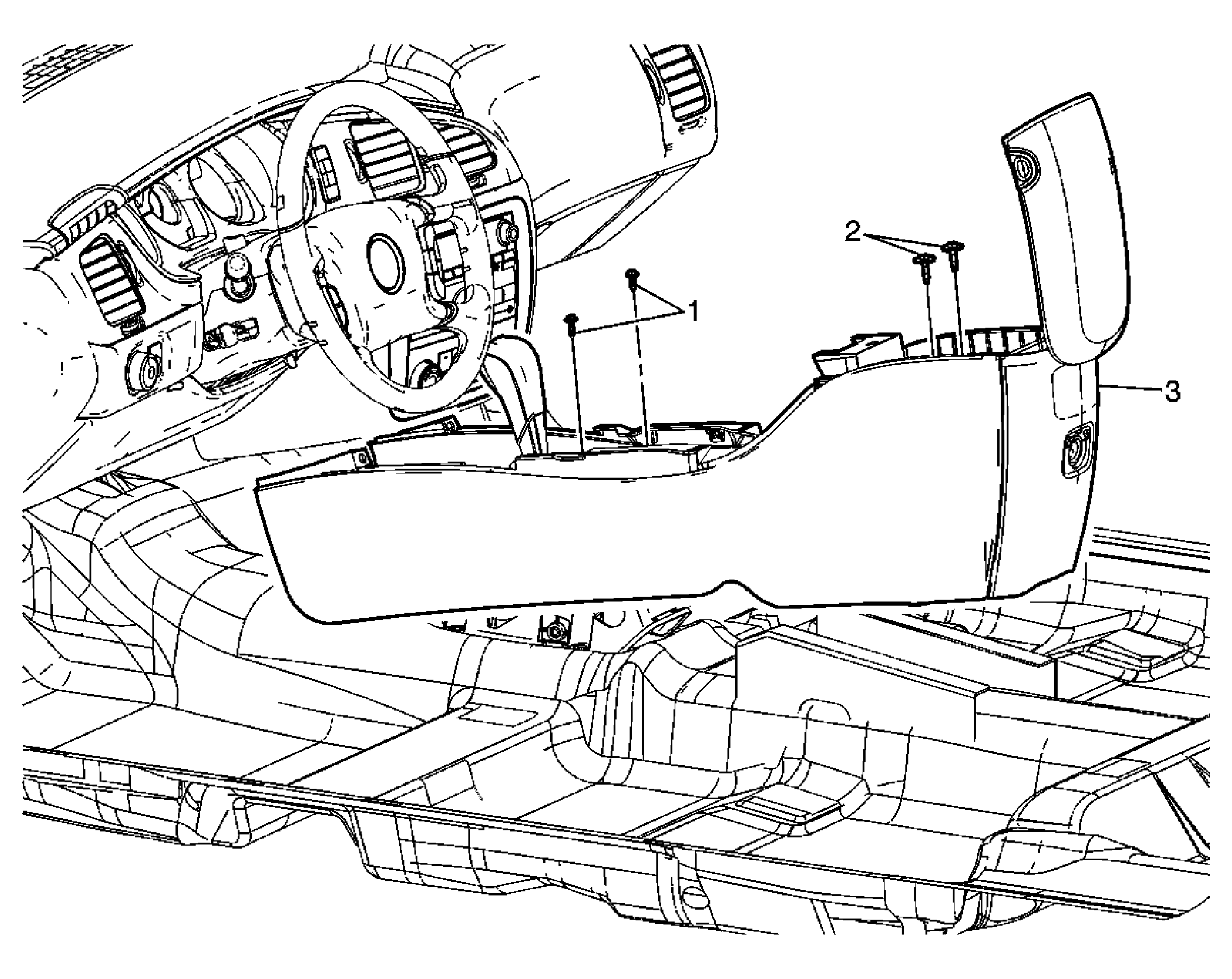

Fig 1: Identifying Front Floor Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: To prevent component damage, DO NOT use metal tools to remove the trim. NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front floor console upper trim plate assembly. Refer to Front Floor Upper Console Trim Plate Replacement .Tip: Use ONLY a plastic trim tool to lift the shift lever trim plate from the console. Do not use any tool between the trim plate and the shifter. Apply the park brake and shift lever rearward. The sound deadener must be reinstalled if the wire harness is removed or replaced.
1	Front Floor Console Screws (Qty: 2) Tighten: 7 N.m (62 lb in)
2	Front Floor Console Bolts (Qty: 2) Tighten: 7 N.m (62 lb in)
3	Front Floor Console Assembly Tip: Disconnect the electrical connectors.
