Front Floor Console Replacement (Impala)

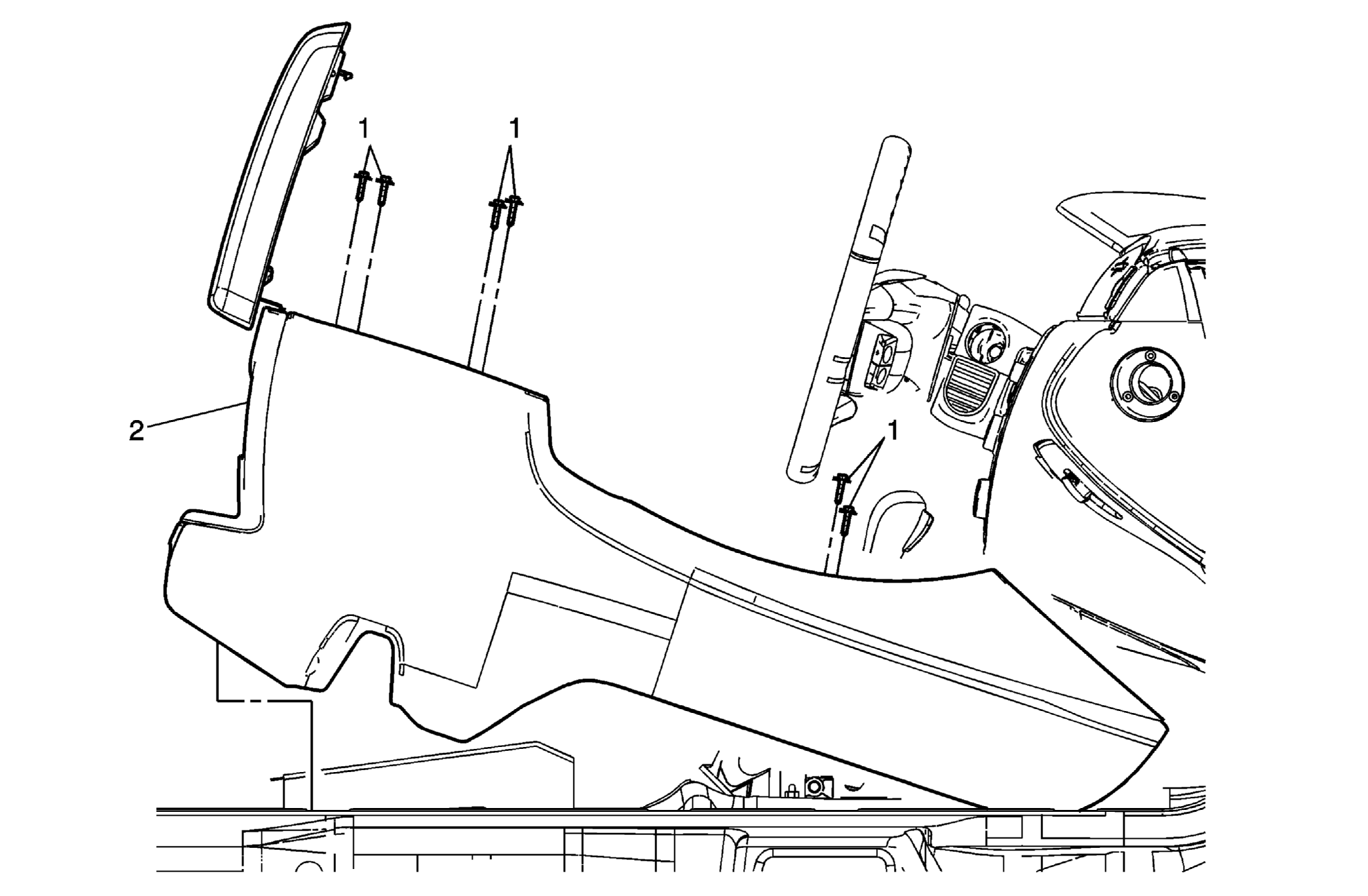

Fig 1: Identifying Front Floor Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: To prevent component damage, DO NOT use metal tools to remove the trim. NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the front floor console bin liner. Remove the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement . Tip: Use ONLY a plastic trim tool to lift the shift lever bezel from the console. Do not use any tool between the trim bezel and the shifter. Apply the park brake and shift lever rearward. The sound deadener must be reinstalled if the wire harness is removed or replaced.
1	Front Floor Console Bolts (Qty: 6) Tighten: 7 N.m (62 lb in)
2	Front Floor Console Assembly Tip: Disconnect the electrical connector.

Callout

Component Name

NOTE: To prevent component damage, DO NOT use metal tools to remove the trim.

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the front floor console bin liner.
Remove the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement .

Tip:

Use ONLY a plastic trim tool to lift the shift lever bezel from the console. Do not use any tool between the trim bezel and the shifter.
Apply the park brake and shift lever rearward. The sound deadener must be reinstalled if the wire harness is removed or replaced.

Front Floor Console Bolts (Qty: 6)

Tighten: 7 N.m (62 lb in)

Front Floor Console Assembly
Tip: Disconnect the electrical connector.
