Coat Hook Replacement (Monte Carlo)
Coat Hook Replacement (Monte Carlo)

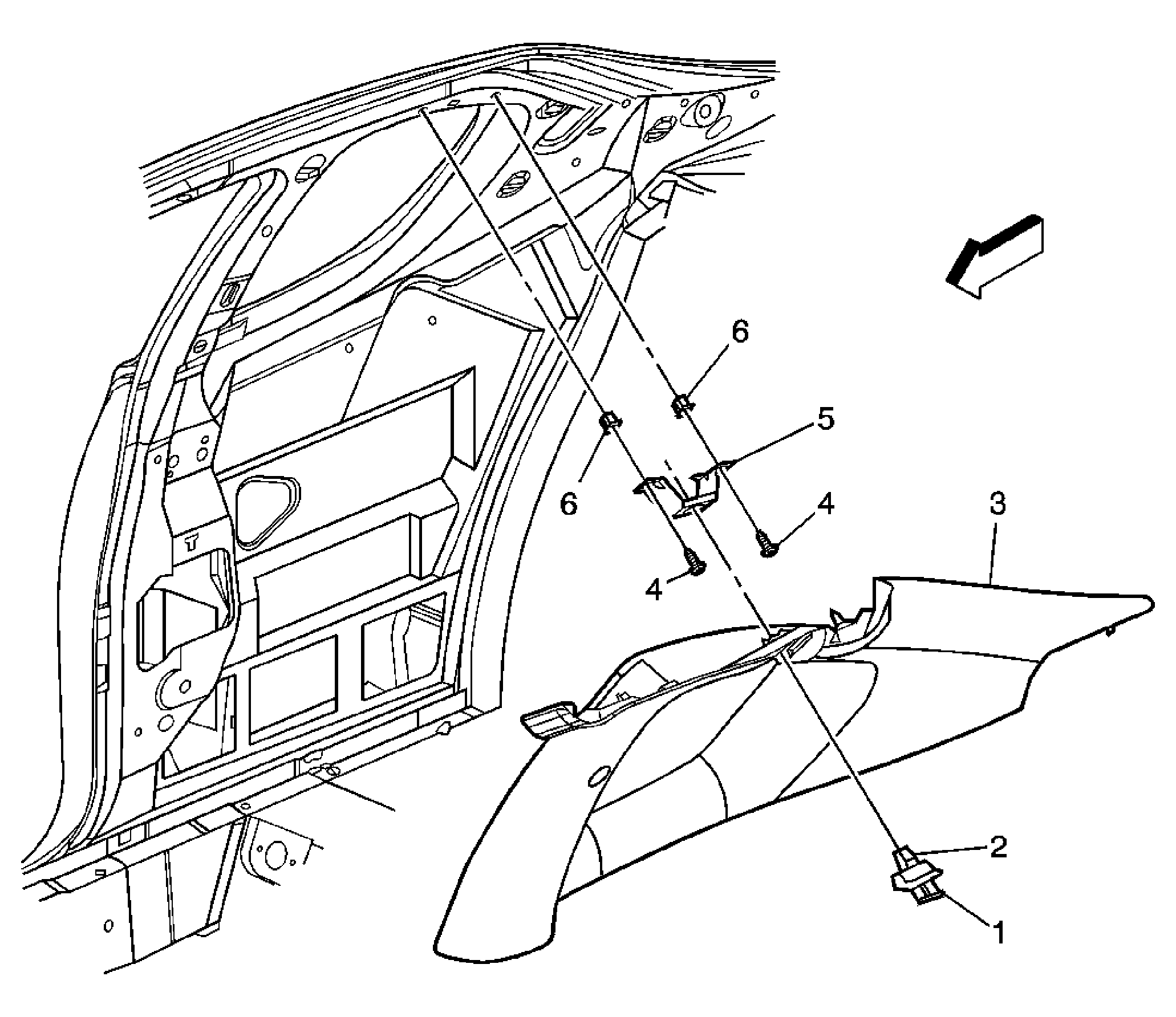

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Coat Hook |
| 2 | Coat Hook Retainer Clip |
| 3 | Quarter Upper Trim Finish Panel Assembly Tip: Pull out to disengage the retainers and tilt inward and up to allow the tabs on the trim panel to release from the vehicle. |
| 4 | Coat Hook Anchor Plate Screw (Qty: 2) Tighten: 2 N.m (18 lb in) |
| 5 | Coat Hook Anchor Plate |
| 6 | Retainer Clip Screw (Qty: 2) |
