Rear Bumper Fascia Replacement

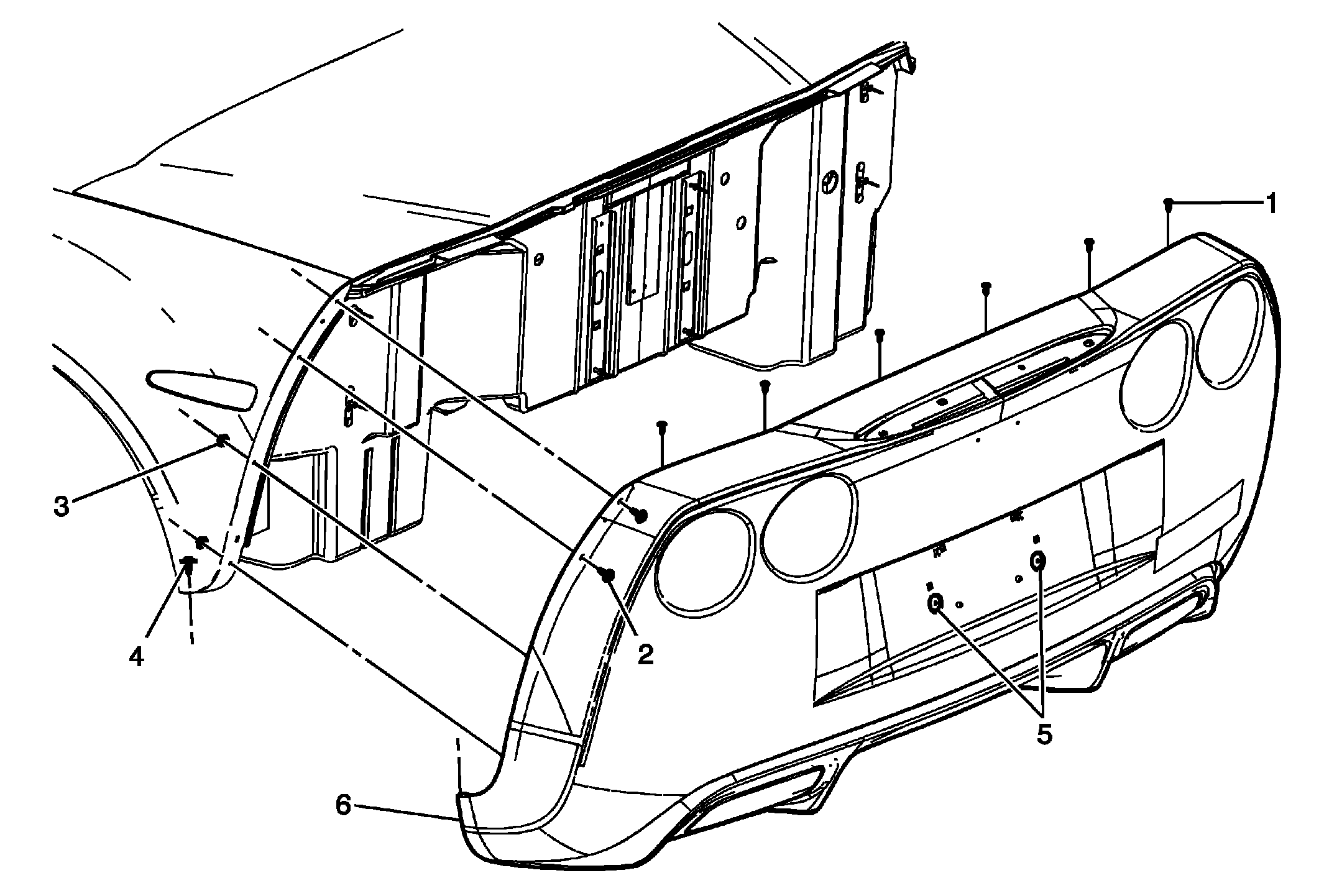

Fig 1: View Of Rear Bumper Fascia & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear fascia extension. Refer to Rear Bumper Fascia Extension Replacement Remove the tail lamps. Refer to Tail Lamp Replacement
1	Rear Bumper Fascia Screws (Qty: 6) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Rear Bumper Fascia Screws (Qty: 4) Tip: These screws are accessed through the tail lamp holes. Tighten: 5 N.m (44 lb in)
3	Rear Bumper Fascia Nuts (Qty: 4) Tighten: 5 N.m (44 lb in)
4	Rear Bumper Fascia Screws (Qty: 2) Tighten: 5 N.m (44 lb in)
5	Rear Bumper Fascia Screws (Qty: 2) Tighten: 1 N.m (9 lb in)
6	Rear Bumper Fascia Tips Disconnect any electrical connectors. Transfer any parts as needed.
