Rear Bumper Fascia Extension Replacement

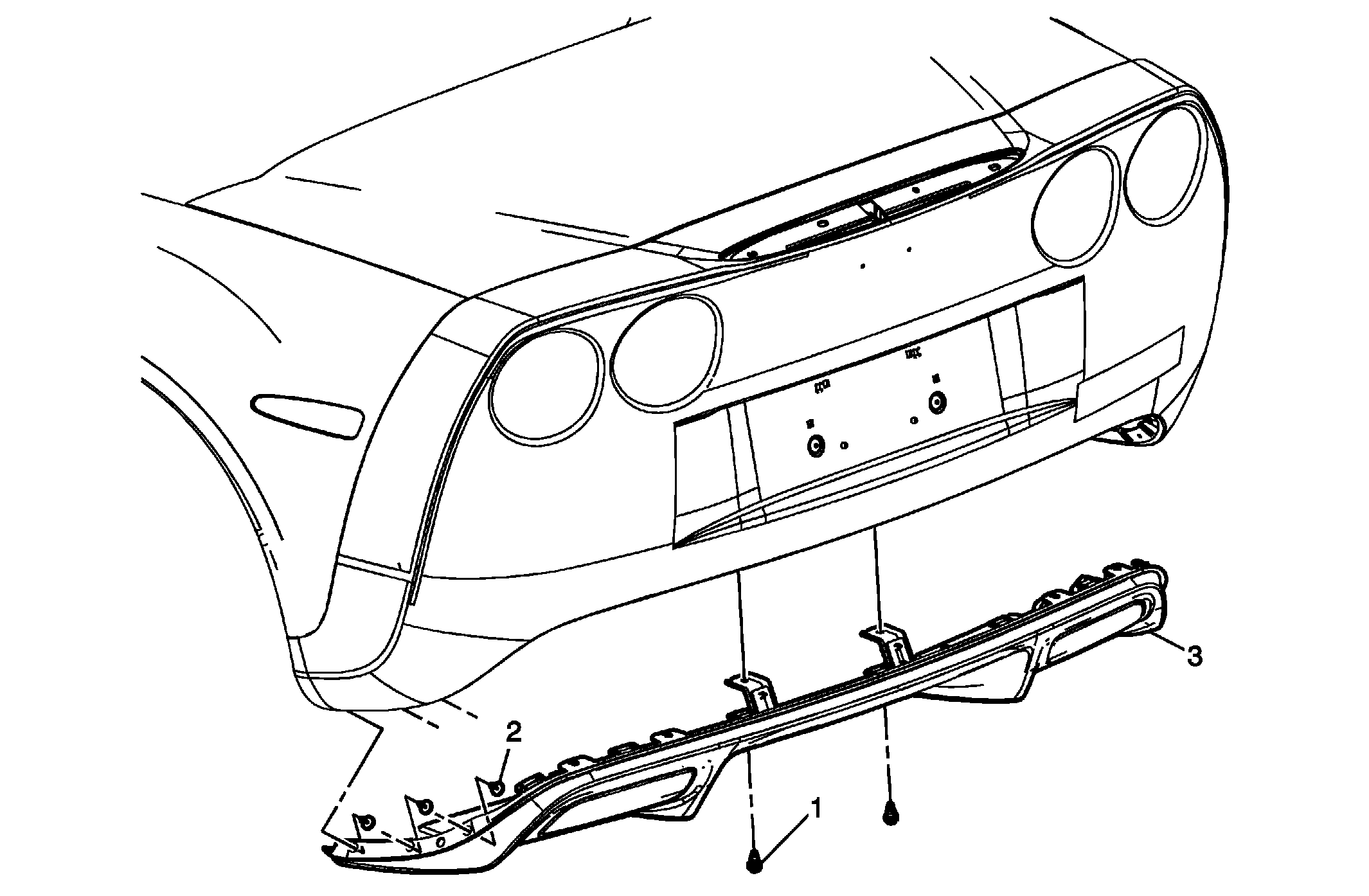

Fig 1: View Of Rear Bumper Fascia Extension & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear wheelhouse liner panels. Refer to Wheelhouse Liner Panel Replacement - Rear .
1	Rear Fascia Extension Screws (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 8 N.m (71 lb in)
2	Rear Fascia Extension Screws (Qty: 6) Tighten: 2 N.m (18 lb in)
3	Rear Fascia Extension Tip: Disconnect all electrical connectors as needed.
