Tail Lamp Replacement
Tail Lamp Replacement

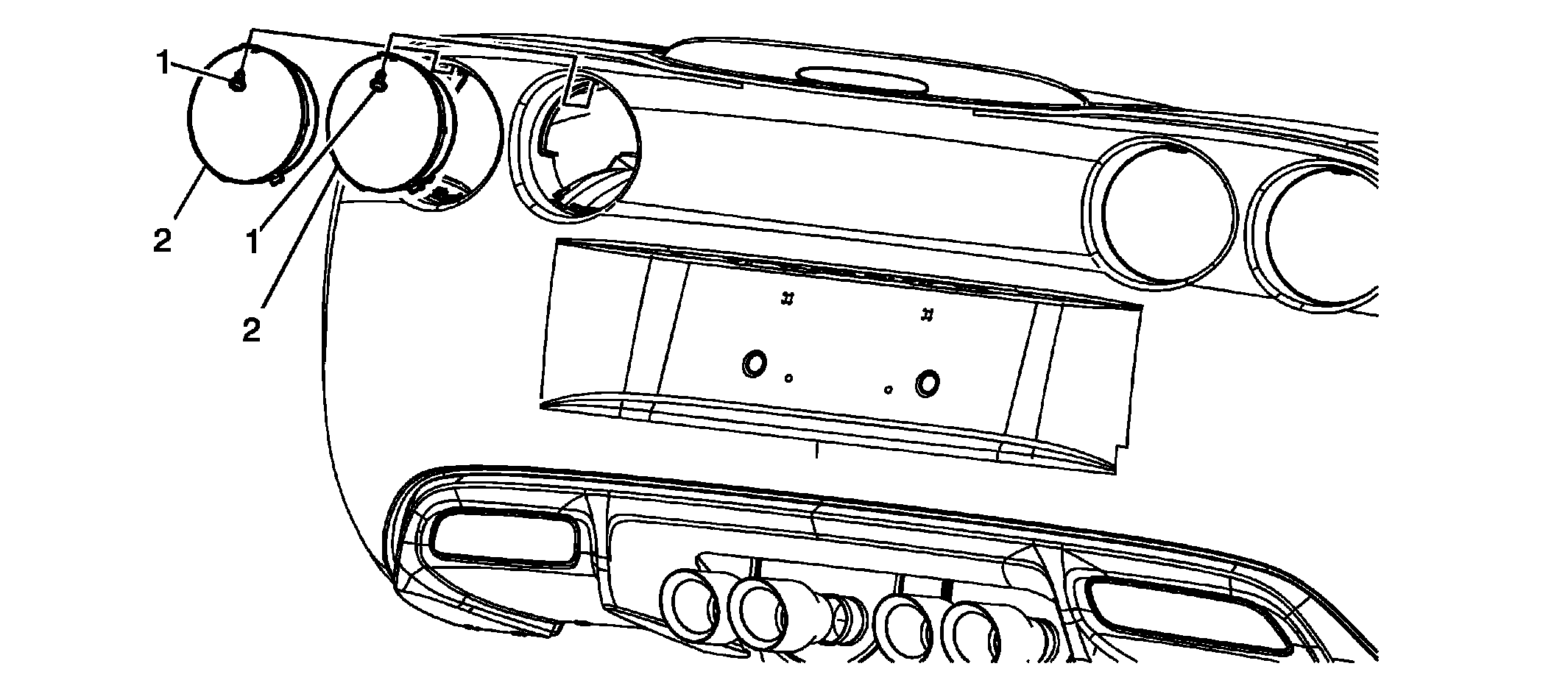

| Callout | Component Name |
|---|---|
| 1 | Tail Lamp Assembly Screws (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: Tighten the screws to 2 N.m (18 lb in) |
| 2 | Tail Lamp Assembly Tip: Rotate the top of the lens rearward in order to move the lamp far enough to disconnect the electrical connectors. |
