Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying IAH
    GM1732881Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Position the IAH and pipe, using a NEW IAH gasket. Install the 4 IAH bolts.

    Tighten:  Tighten the IAH bolts to 20 N.m (15 lb ft).

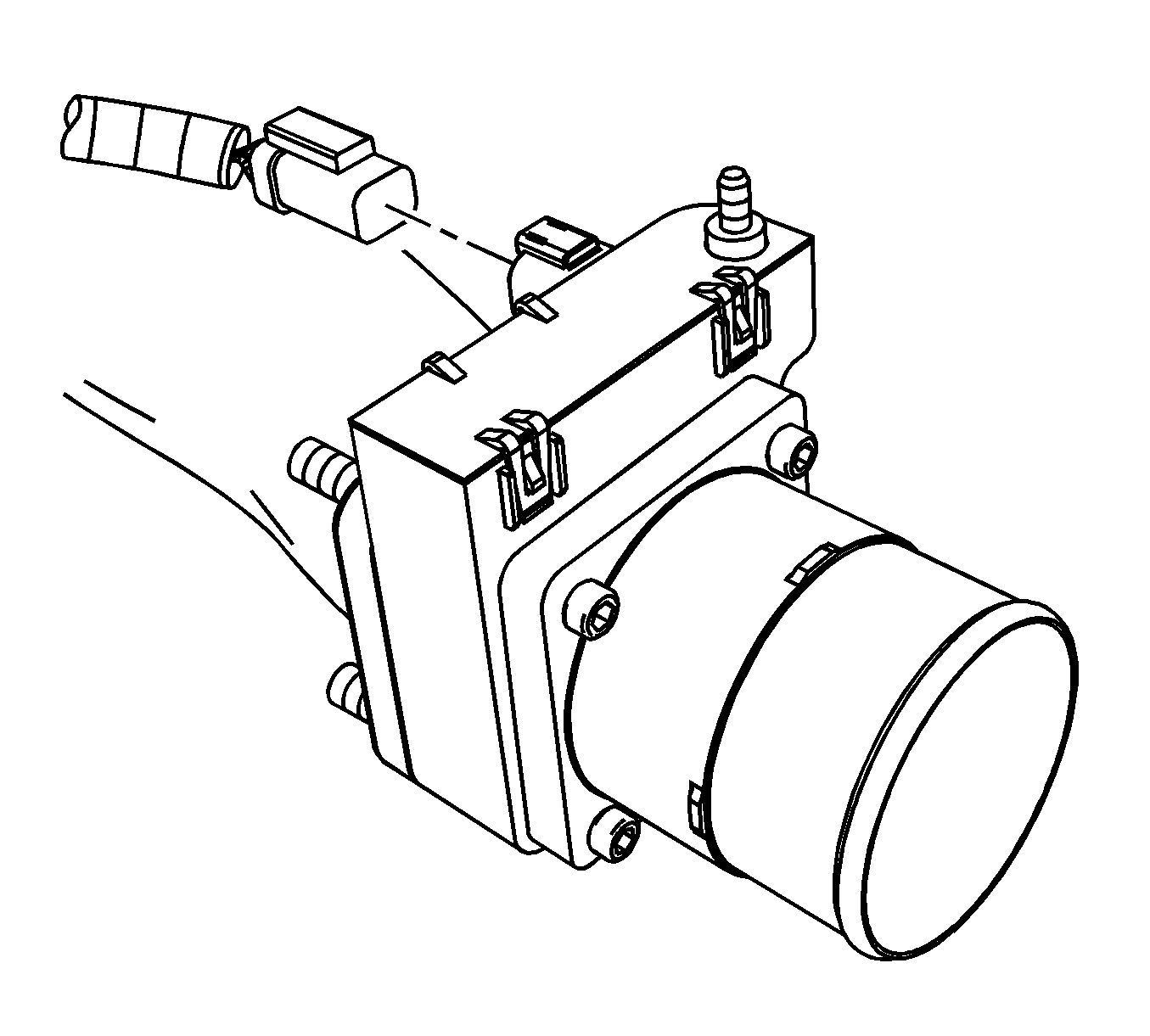

    2. Fig 2: View Of intake air heater (IAH) electrical connector
    GM1732868Courtesy of GENERAL MOTORS CORP.
  2. Connect the air intake heater electrical connector.

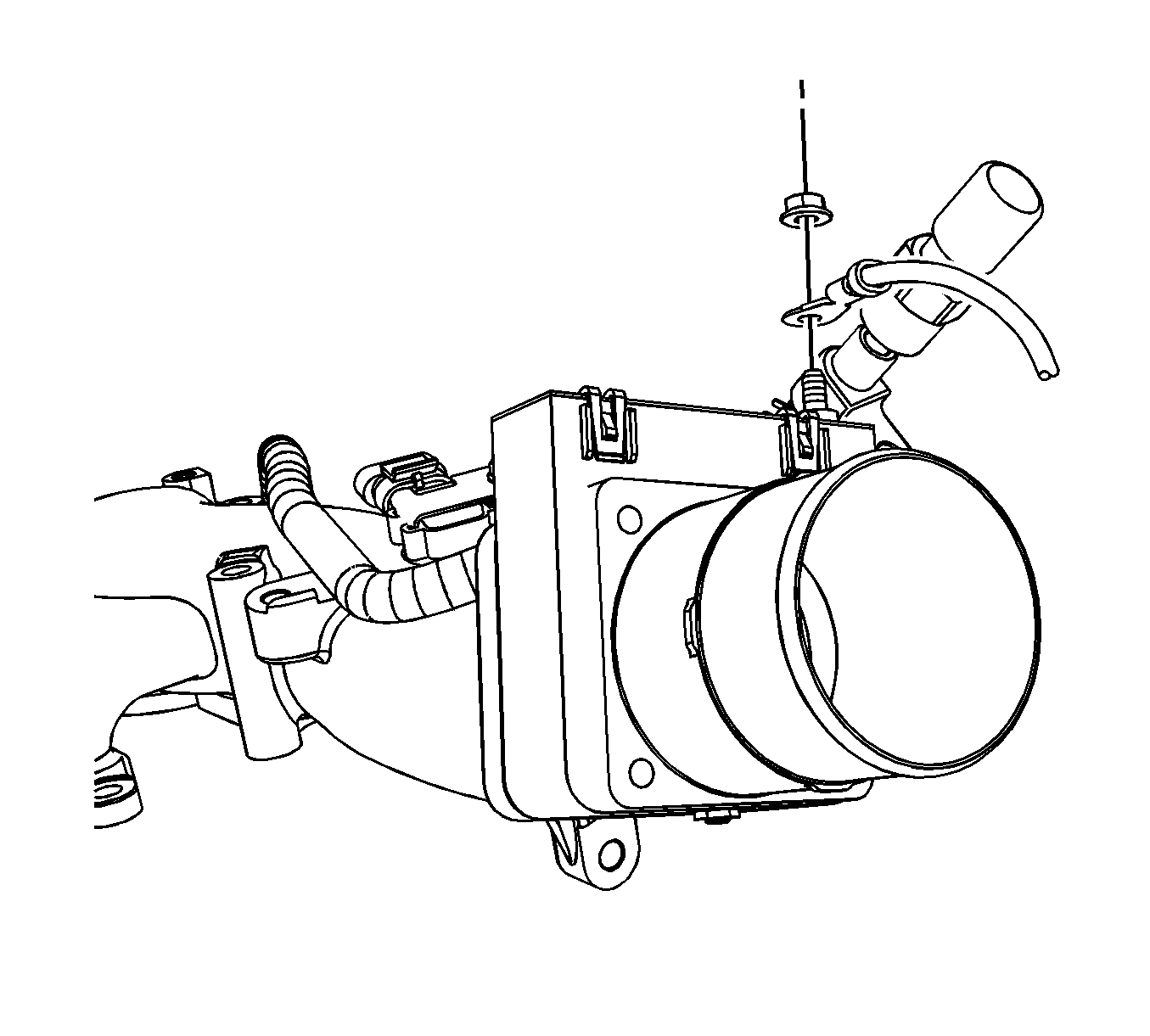

    3. Fig 3: Identifying positive cable
    GM1724827Courtesy of GENERAL MOTORS CORP.
  3. Position the positive cable and install the nut.

    Tighten:  Tighten the positive cable nut to 4 N.m (34 lb in).

  4. Install the charge air cooler outlet pipe. Refer to Charged Air Cooler Hoses/Pipes Replacement (Inlet) or Charged Air Cooler Hoses/Pipes Replacement (Outlet) .
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
