Charged Air Cooler Hoses/Pipes Replacement (Outlet)
Charged Air Cooler Hoses/Pipes Replacement (Outlet)

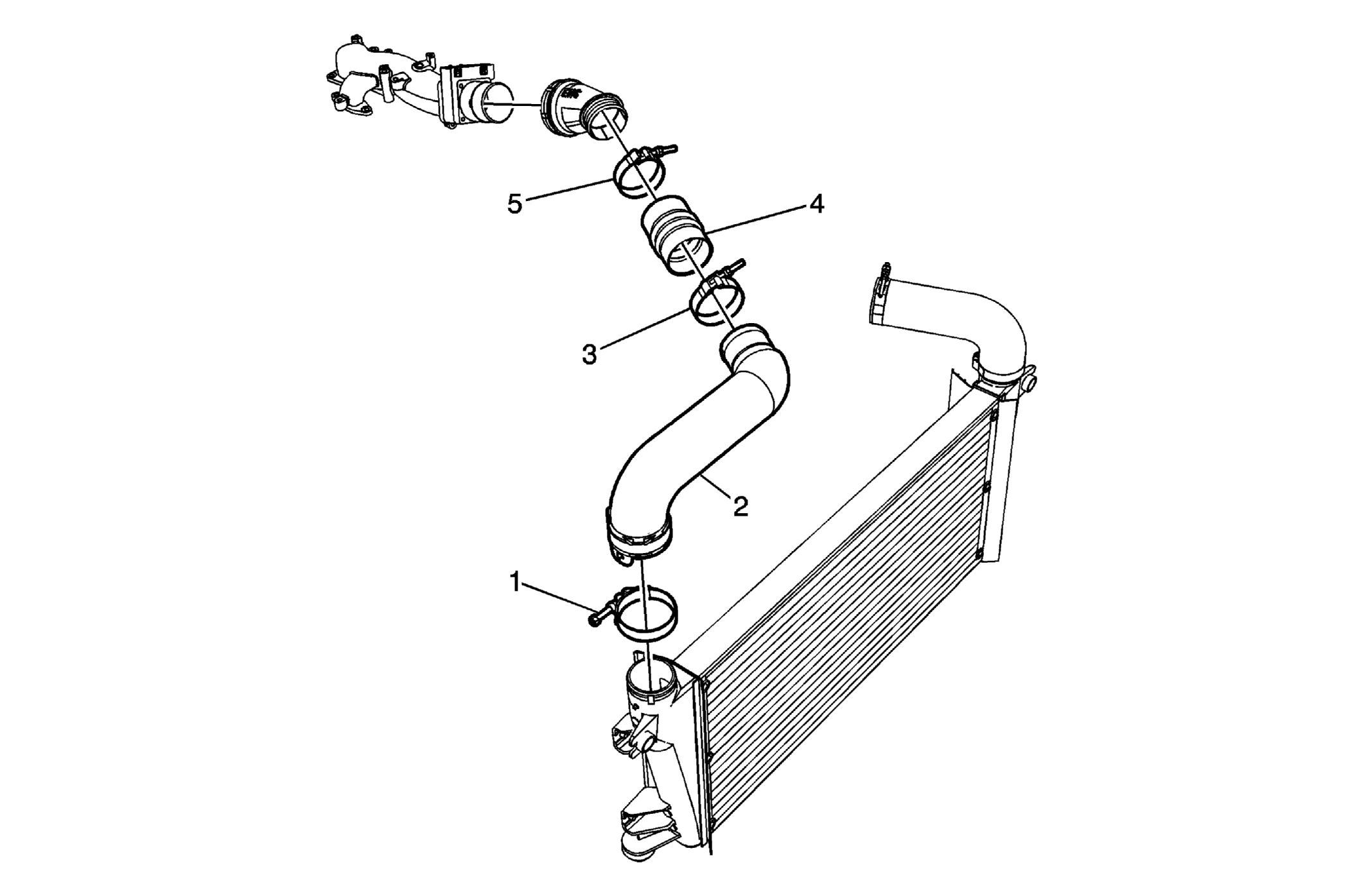

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
.Preliminary Procedure: Reposition the surge tank. Refer to Surge Tank Replacement
. |
|
| 1 | Charged Air Cooler Assembly T-Bolt Band Clamp Tighten: 12 N.m (106 lb in) |
| 2 | Charged Air Cooler Outlet Pipe Tip: Align the notch of the outlet pipe to the alignment pin on the cooler during installation. |
| 3 | Charged Air Cooler Outlet Duct Clamp Tighten: 8 N.m (70 lb in) |
| 4 | Charged Air Cooler Outlet Duct Tip: Align the components to the indicator marks during installation. |
| 5 | Charged Air Cooler Outlet Duct Clamp Tighten: 8 N.m (70 lb in) |
