Charged Air Cooler Hoses/Pipes Replacement (Inlet)
Charged Air Cooler Hoses/Pipes Replacement (Inlet)

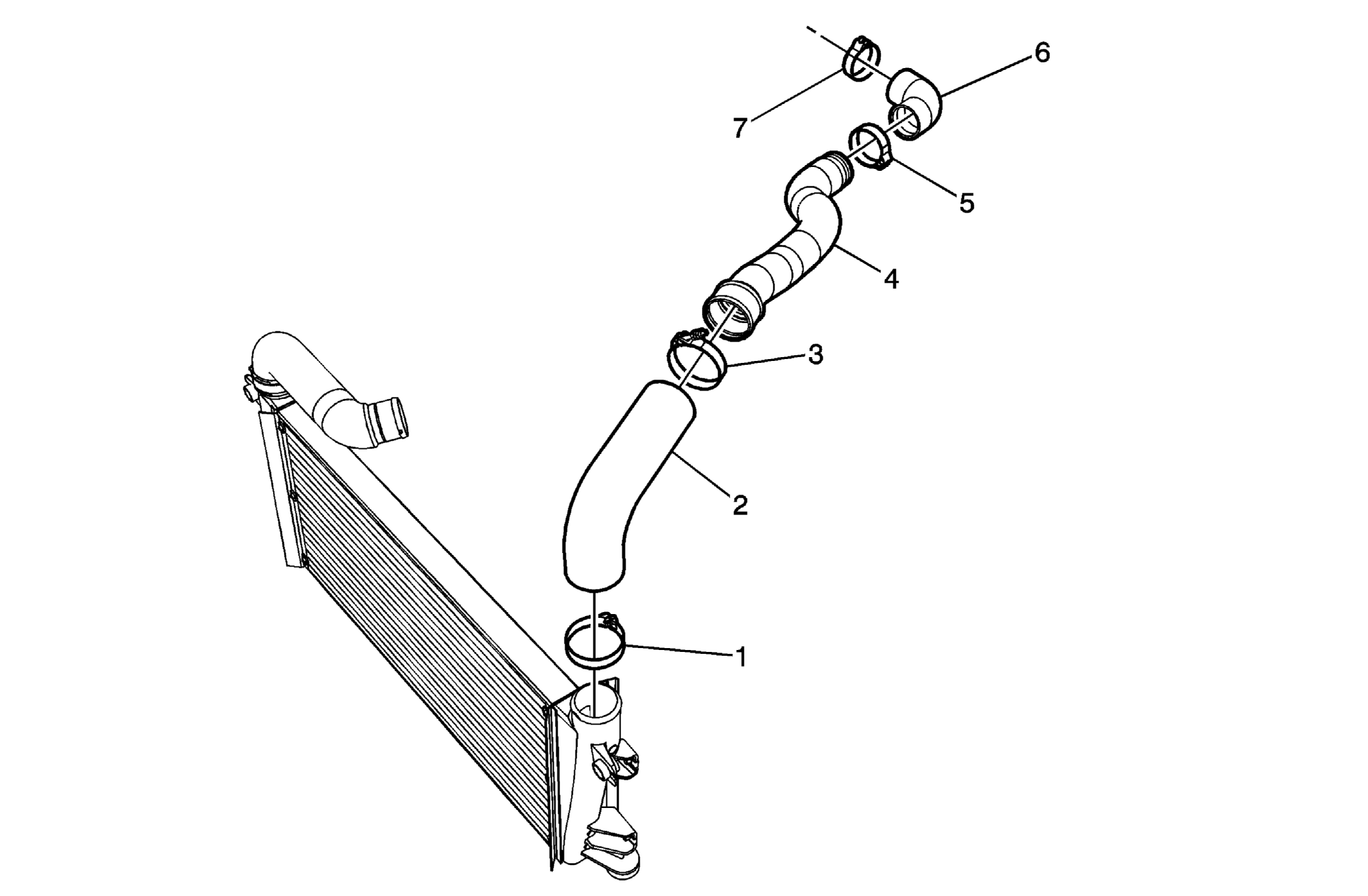

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
.Preliminary Procedure: Remove the engine cover. Refer to Engine Cover Replacement
. |
|
| 1 | T-Bolt Band Clamp Tighten: 8 N.m (70 lb in) |
| 2 | Charged Air Cooler Inlet Duct Connector Tip: Align the components to the indicator marks during installation. |
| 3 | T-Bolt Band Clamp Tighten: 8 N.m (70 lb in) |
| 4 | Charged Air Cooler Inlet Duct Tip: Align the components to the indicator marks during installation. |
| 5 | T-Bolt Band Clamp Tighten: 8 N.m (70 lb in) |
| 6 | Charged Air Cooler Inlet Duct Connector Tip: Align the components to the indicator marks during installation. |
| 7 | T-Bolt Band Clamp Tighten: 8 N.m (70 lb in) |
