Instrument Panel (I/P) Lower Center Trim Replacement

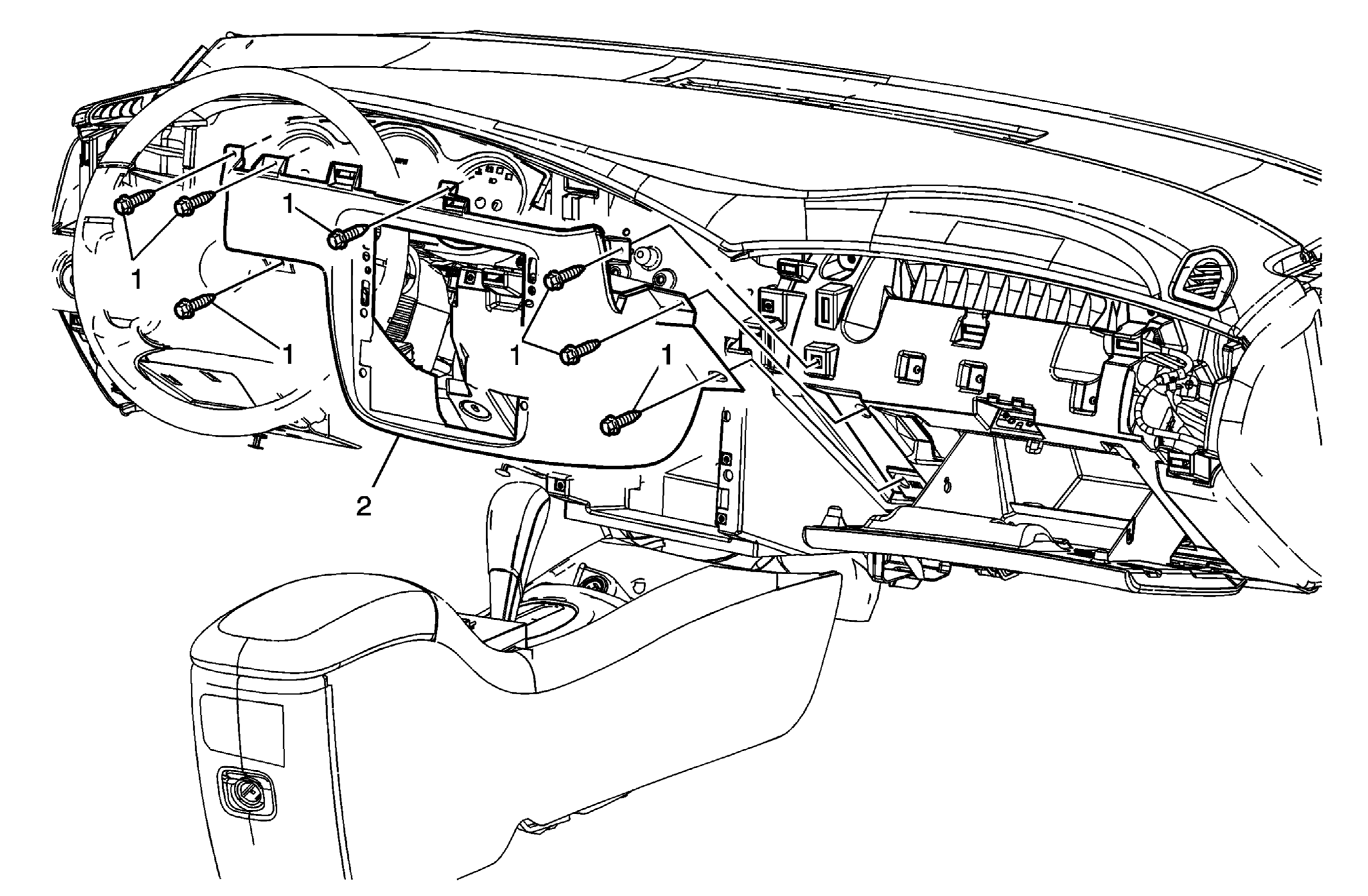

Fig 1: Replacing Instrument Panel (I/P) Lower Center Trim

Courtesy of GENERAL MOTORS CORP.

Trim Replacement - Instrument Panel (I/P) Lower Center

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the Instrument Panel Cluster Trim Panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster (Monte Carlo) . Remove the Instrument Panel Trim Plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) (Impala) or Trim Plate Replacement - Instrument Panel (I/P) (Monte Carlo) . Remove the Radio. Refer to Radio Replacement . Remove the HVAC Control Module. Refer to HVAC Control Assembly Replacement .
1	Instrument Panel Center Lower Trim Panel Screws (Qty 7) Tighten: 2 N.m (18 lb in)
2	Instrument Panel Center Lower Trim Panel

Callout

Component Name

NOTE: Refer to Fastener Notice in Cautions and Notices.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Instrument Panel Center Lower Trim Panel Screws (Qty 7)

Tighten: 2 N.m (18 lb in)

Instrument Panel Center Lower Trim Panel
