Instrument Panel (I/P) Compartment Door Replacement - (Impala)

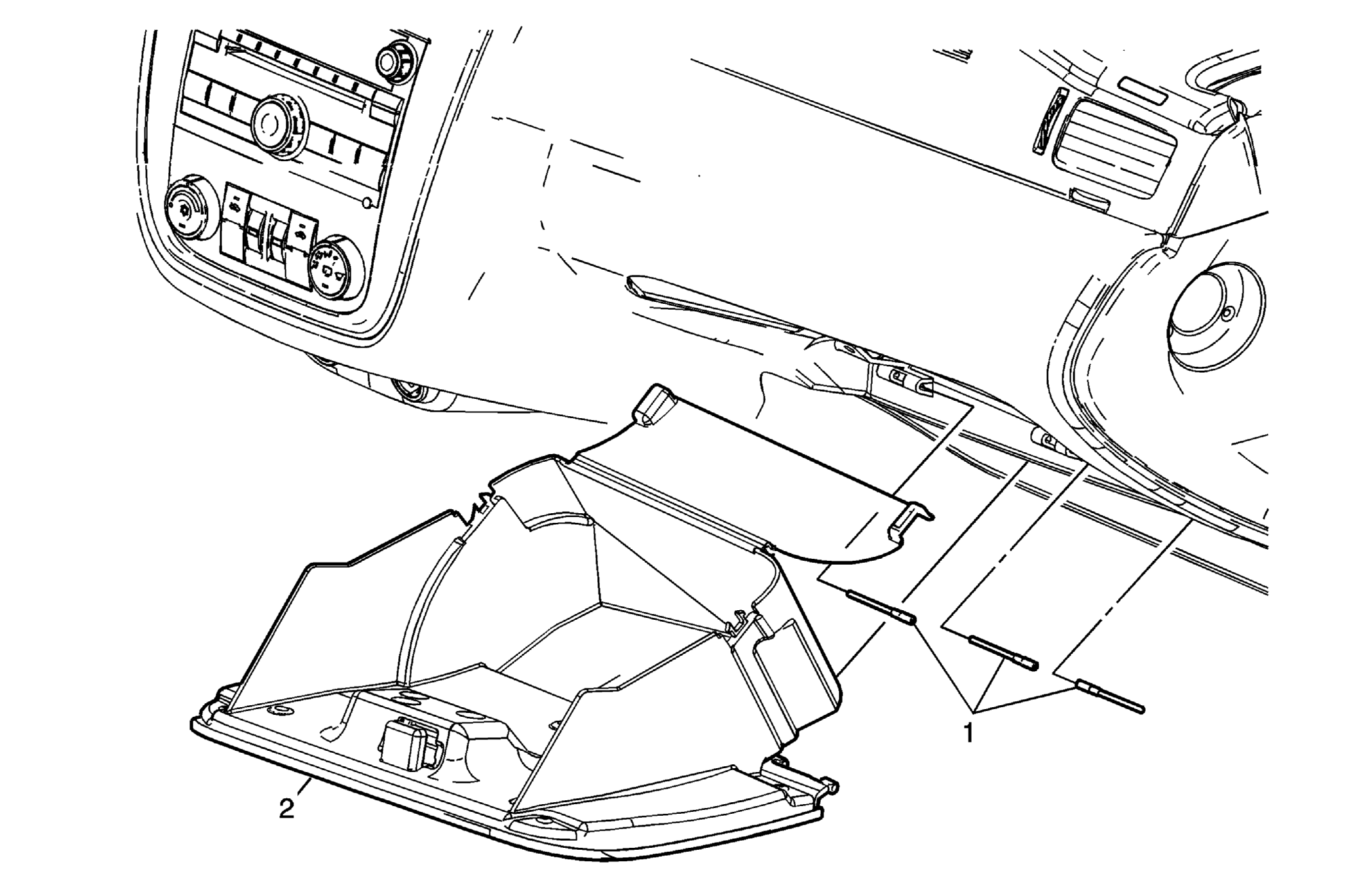

Fig 1: Replacing Instrument Panel (I/P) Compartment Door

Courtesy of GENERAL MOTORS CORP.

Door Replacement - Instrument Panel (I/P) Compartment (Impala)

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Pin, Compartment Door Hinge (Qty 3) Tip:  Use a small pointed tool in order to drive the pins out of the hinge.
2	Door Assembly, Instrument Panel Compartment Tip:  Squeeze the compartment bin enough to pull the door and bin assembly out the opening past the stops and the dampener. Remove the compartment Latch Assembly. Refer to Latch Replacement - Instrument Panel (I/P) Compartment (Impala)  or Latch Replacement - Instrument Panel (I/P) Compartment (Monte Carlo) .
