Instrument Panel (I/P) Compartment Latch Replacement (Impala)
Latch Replacement - Instrument Panel (I/P) Compartment (Impala)

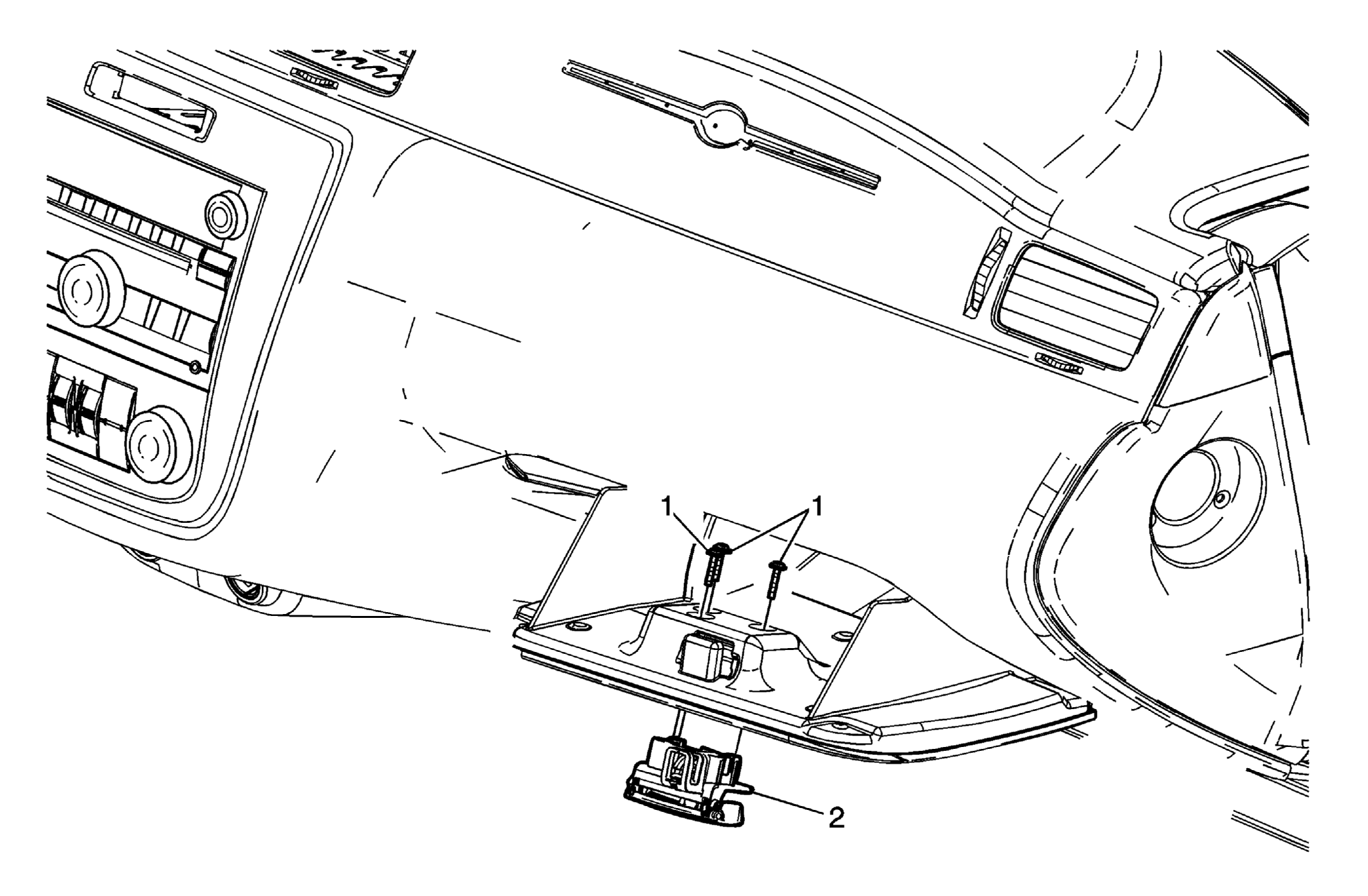

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Screw, Instrument Panel Compartment Latch (Qty 3) Tighten: 2 N.m (18 lb in) |
| 2 | Latch Assembly, Instrument Panel Compartment |
