Instrument Panel (I/P) Compartment Latch Replacement - (Monte Carlo)
Latch Replacement - Instrument Panel (I/P) Compartment (Monte Carlo)

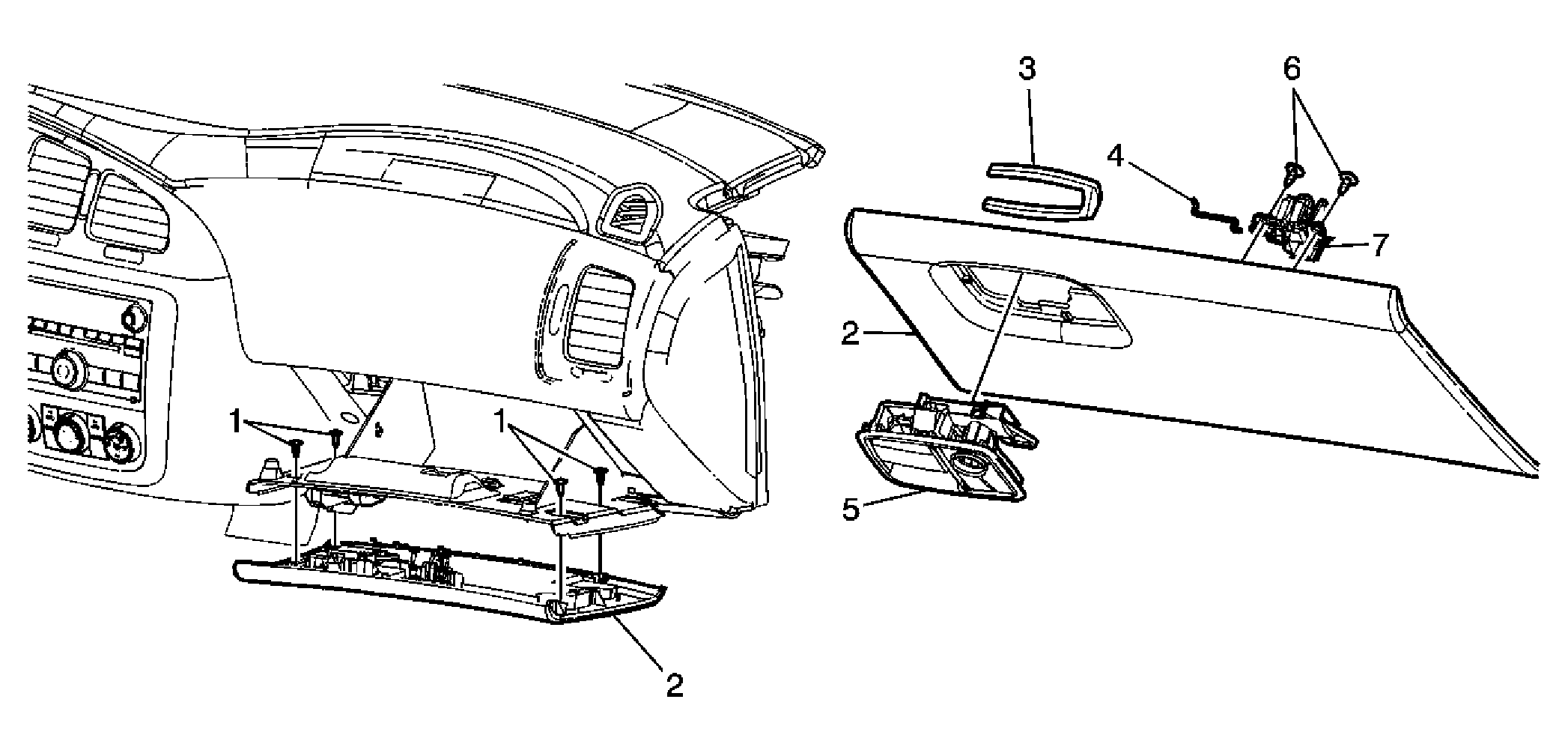

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Instrument Panel Compartment Inner Screws (Qty 4) Tighten: 2 N.m (18 lb in) |
| 2 | Instrument Panel Compartment Door |
| 3 | Instrument Panel Compartment Handle "U" Clip Retainer |
| 4 | Instrument Panel Compartment Latch Rod |
| 5 | Instrument Panel Compartment Handle Assembly |
| 6 | Instrument Panel Compartment Latch Screws (Qty 2) Tighten: 2 N.m (18 lb in) |
| 7 | Instrument Panel Compartment Latch Assembly |
