Instrument Panel (I/P) Lower Trim Plate Replacement - (Monte Carlo)

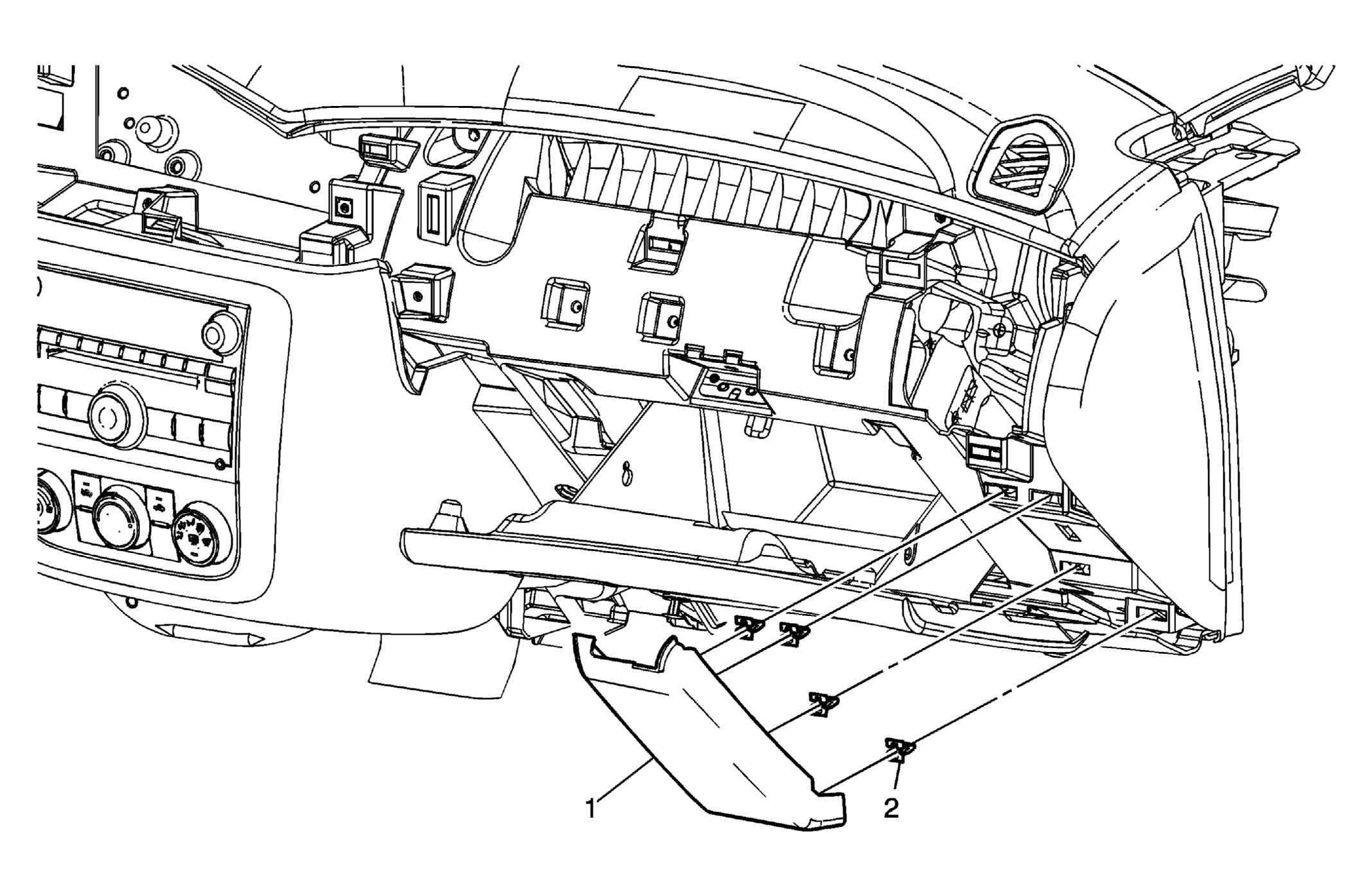

Fig 1: Replacing Instrument Panel (I/P) Lower Trim Plate

Courtesy of GENERAL MOTORS CORP.

Trim Plate Replacement - Instrument Panel (I/P) Lower (Monte Carlo)

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications . Preliminary Procedure:  Remove the Instrument Panel Trim Plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) (Impala)  or Trim Plate Replacement - Instrument Panel (I/P) (Monte Carlo) .
1	Instrument Panel Lower Trim Plate
2	Retainer Clips (Qty 4)
