Instrument Panel Upper Trim Pad Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

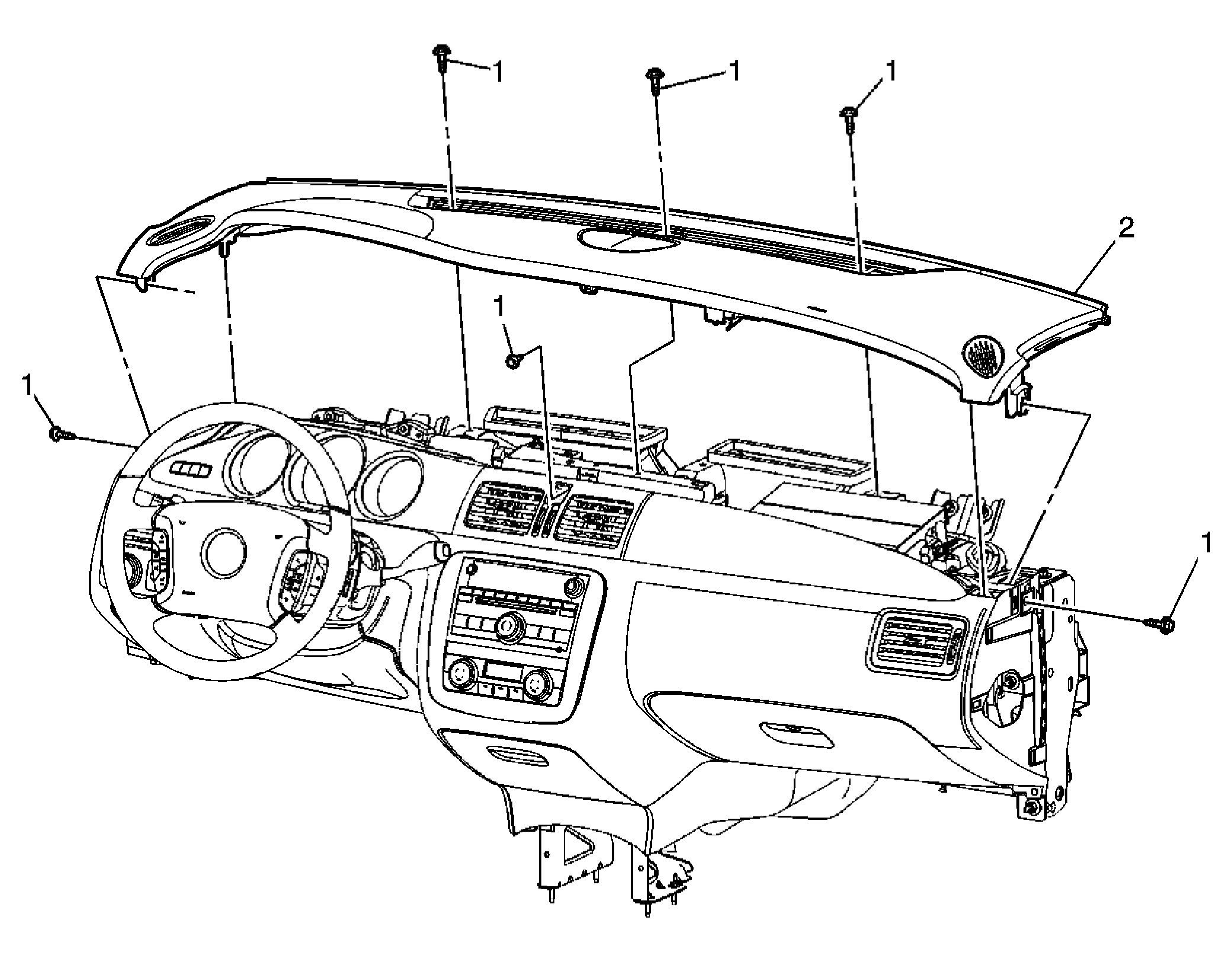

Fig 1: View Of Instrument Panel Upper Trim Pad

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the windshield garnish moldings. Refer to Windshield Pillar Garnish Molding Replacement . Remove the instrument panel outer trim covers. Refer to Instrument Panel Outer Trim Cover Replacement . Remove the instrument panel defroster grill. Refer to Defroster Grille Replacement . Remove the hazard lamp switch. Refer to Hazard Warning Switch Replacement .
1	Instrument Panel Upper Trim Pad Screws (Qty: 6) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Instrument Panel Upper Trim Pad Assembly

Callout

Component Name

Preliminary Procedures

Remove the windshield garnish moldings. Refer to Windshield Pillar Garnish Molding Replacement .
Remove the instrument panel outer trim covers. Refer to Instrument Panel Outer Trim Cover Replacement .
Remove the instrument panel defroster grill. Refer to Defroster Grille Replacement .
Remove the hazard lamp switch. Refer to Hazard Warning Switch Replacement .

Instrument Panel Upper Trim Pad Screws (Qty: 6)

NOTE: Refer to Fastener Notice .

Tighten: 9 N.m (80 lb in)

Instrument Panel Upper Trim Pad Assembly
