Windshield Pillar Garnish Molding Replacement
WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

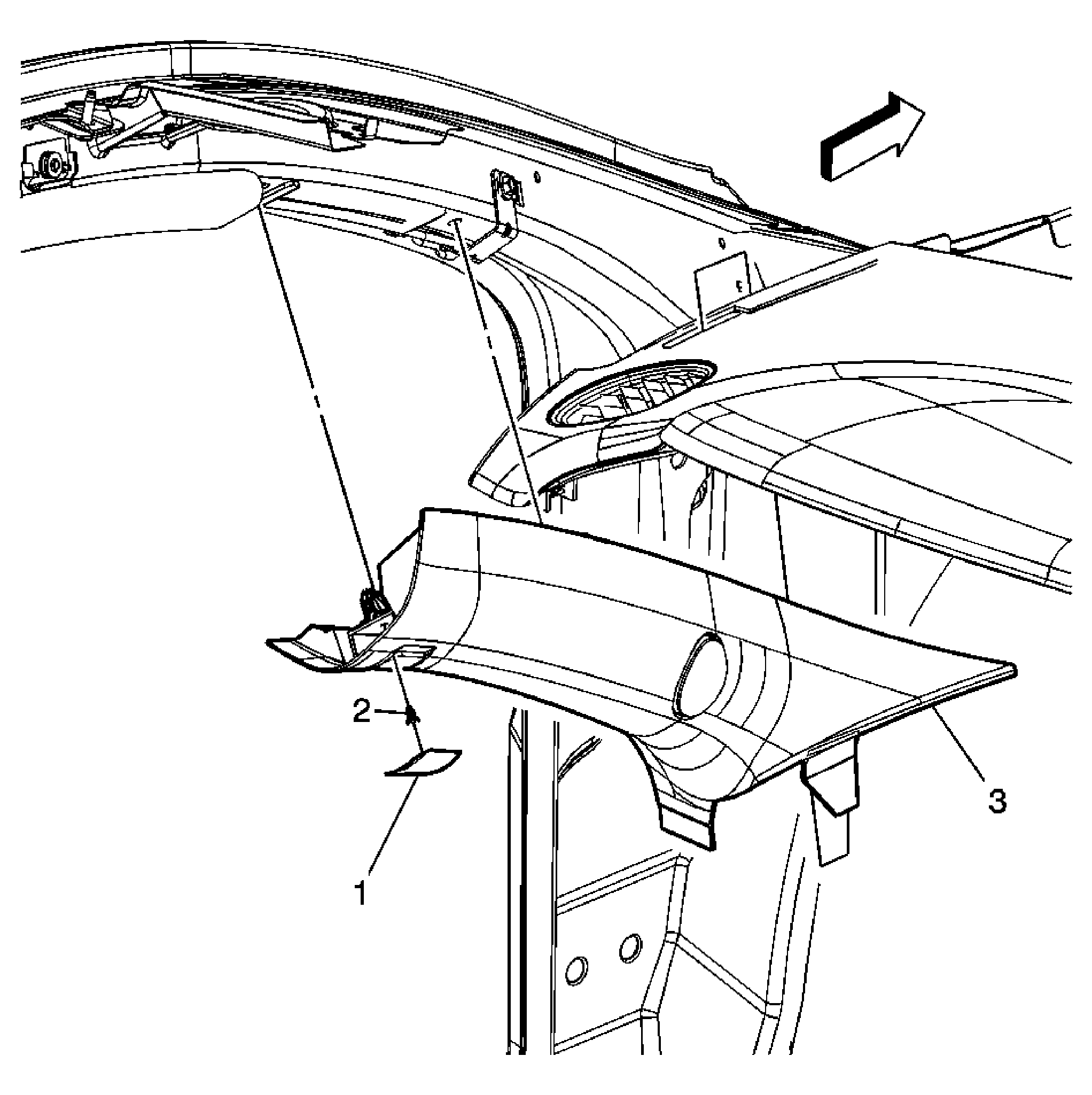

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Windshield Side Garnish Molding Cover |
| 2 | Windshield Side Garnish Screw Tighten: 9 N.m (80 lb in) |
| 3 | Windshield Garnish Molding Assembly Tip: Disconnect the electrical connector. |
