Defroster Grille Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

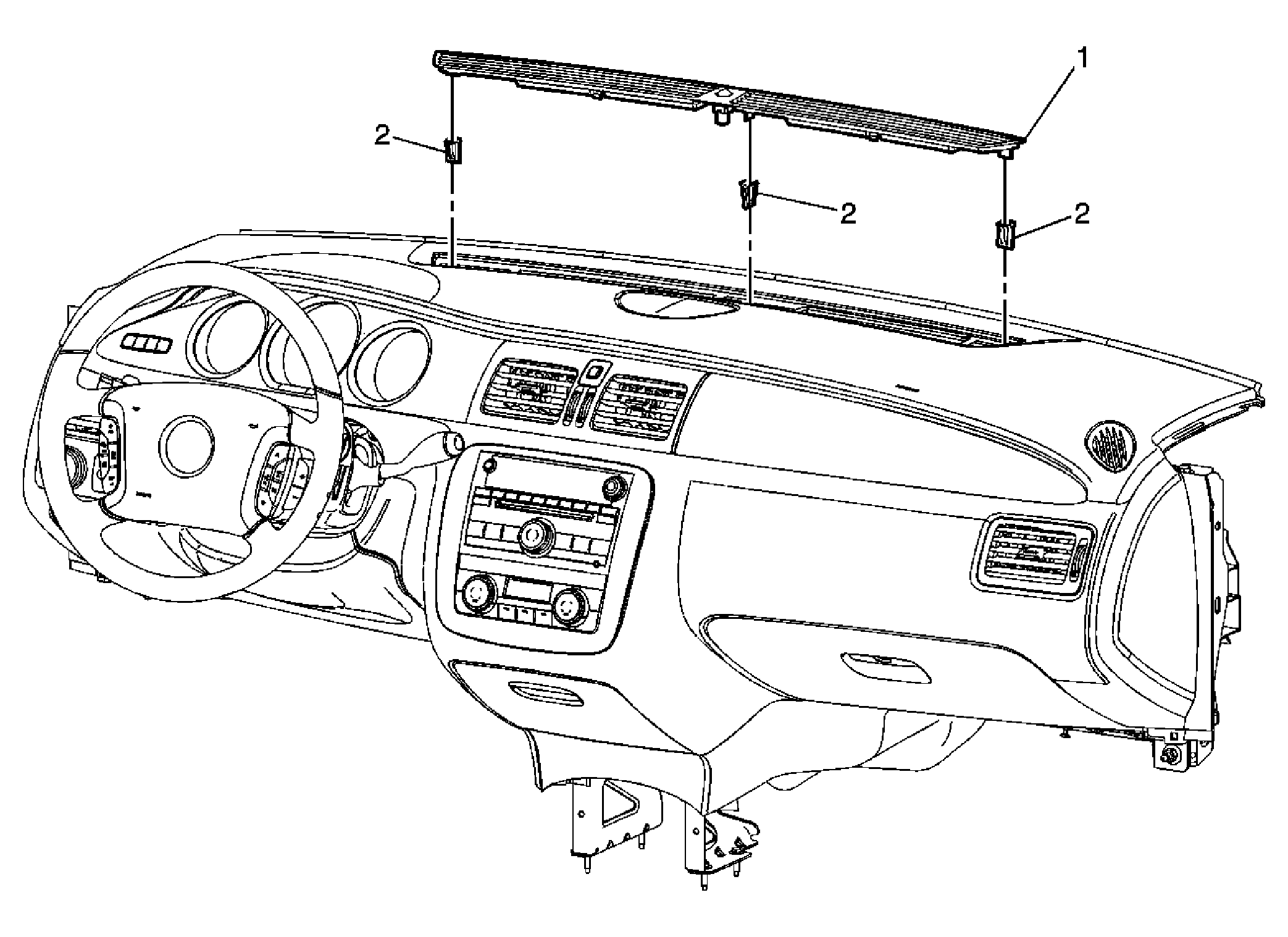

Fig 1: Identifying Defroster Grille

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Instrument Panel Defroster Grill Panel Tip: Use a flat-bladed plastic trim tool to remove the defroster grill panel from the instrument panel assembly. Remove the ambient light sensor from the defroster grill. Refer to Ambient Light Sensor Replacement .
2	Retainer Clips (Qty: 3)
