Steering Shaft, Lower Bearing & Jacket - Assemble - Off Vehicle (Floor Shift Standard)

NOTE: Refer to FASTENER NOTICE .
  1. Attach the steering column support assembly (2) to the steering column jacket assembly (3) with the 4 new TORX® head screws (1).

    Tighten

    Tighten the screws to 17 N.m (13 lb ft).

    Fig 1: Steering Column Support Assembly, Steering Column Jacket Assembly & Screws (Floor Shift Standard)
    G01670312Courtesy of GENERAL MOTORS CORP.
  2. Install the steering shaft assembly (1) into the steering column support assembly (2) and the steering column jacket assembly (3).
    Fig 2: Steering Shaft Assembly, Steering Column Support Assembly & Steering Column Jacket Assembly (Floor Shift Standard)
    G01670313Courtesy of GENERAL MOTORS CORP.
  3. Install the adapter and bearing assembly (1) onto the steering column jacket assembly by performing the following steps:
    1. 3.1. Align the tab on the adapter and bearing assembly (1) with the slot in the steering column jacket assembly.
    2. 3.2. Push the adapter and bearing assembly (1) onto the steering shaft assembly until the tab snaps into the slot.
  4. Install the shaft seal retainer (2) onto the adapter and bearing assembly (1).
    1. 4.1. Align the slots of the shaft seal retainer (2) to the ribs of the adapter and bearing assembly (1).
    2. 4.2. Push the shaft seal retainer (2) onto the steering shaft assembly so that the shaft seal retainer (2) contacts the adapter and bearing assembly (1).
  5. Install the steering shaft seal (3) onto the steering shaft assembly.
  6. Install the inner boot seal (4) onto the steering shaft assembly.
    Fig 3: Adapter/Bearing Assembly, Shaft Seal Retainer, Steering Shaft Seal & Inner Boot Seal (Floor Shift Standard)
    G01670314Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION .

    Important:  The electrical contact of the turn signal and multifunction switch assembly must rest on the turn signal cancel cam assembly.

  7. Install the turn signal and multifunction switch assembly (2) onto the steering column housing assembly.
  8. Screw the 2 pan head tapping screws (1) into the turn signal and multifunction switch assembly (2).

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

  9. Install the electronic lock module assembly. Refer to Electronic Column Lock Module - Assemble - Off Vehicle (Column Shift)  or Electronic Column Lock Module - Assemble - Off Vehicle (Floor Shift) .

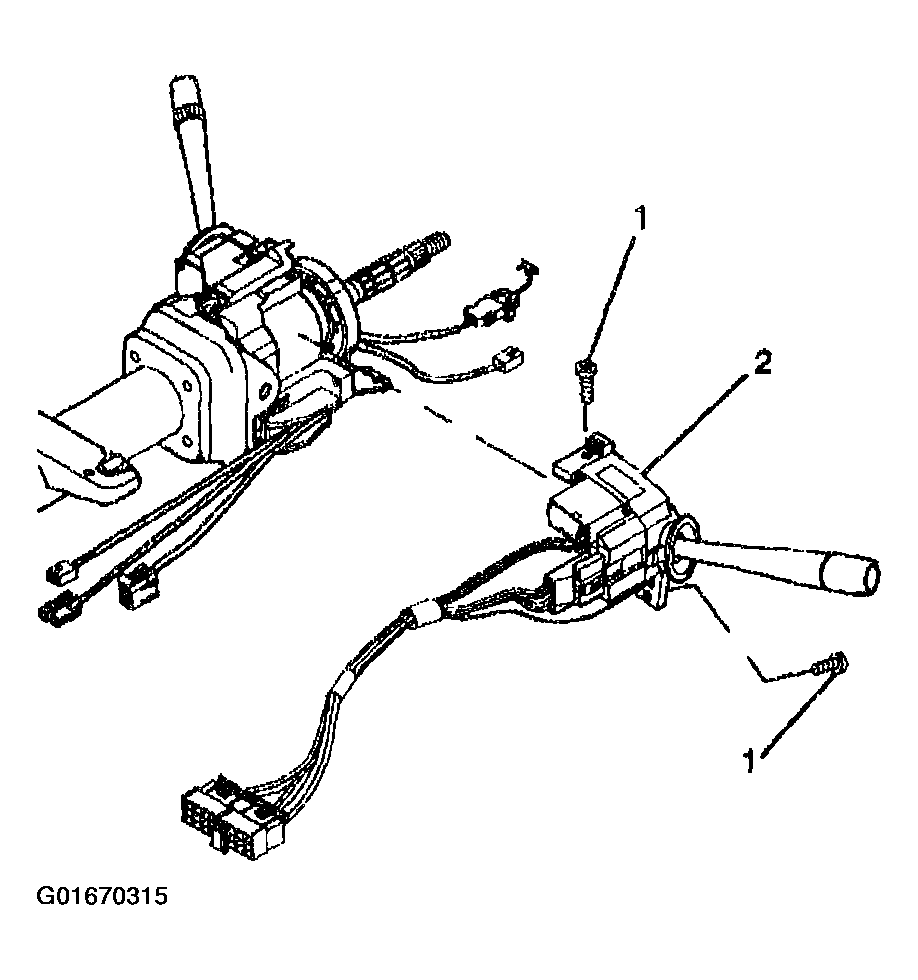

    Fig 4: Turn Signal/Multifunction Switch Assembly & Screws (Floor Shift Standard)
    G01670315Courtesy of GENERAL MOTORS CORP.
  10. Install the electric park lock. Refer to Electric Park Lock Module - Assemble - Off Vehicle (Floor Shift) .
  11. Install the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement - On Vehicle .
  12. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .
