Electronic Column Lock Module - Assemble - Off Vehicle (Floor Shift)

Tools Required

J 42759  Ignition Switch Connector Release Tool

  1. Install the lock bolt spring (3) into the steering column tilt head assembly (5).
  2. Position the cutout in the lock bolt assembly (4) at the 6 o'clock position.
  3. Install the lock bolt assembly (4) into the steering column tilt head assembly (5).
  4. Push the lock bolt assembly (4) into the steering column tilt head assembly (5) until the lock bolt assembly (4) is flush with the steering column tilt head assembly (5).
  5. Align the electronic lock module assembly (2) with the steering column tilt head assembly (5).
    NOTE: Refer to FASTENER NOTICE .
  6. Screw the 3 pan head tapping screws (1) into the electronic lock module assembly (2).

    Tighten

    Tighten the 3 screws to 7 N.m (62 lb in).

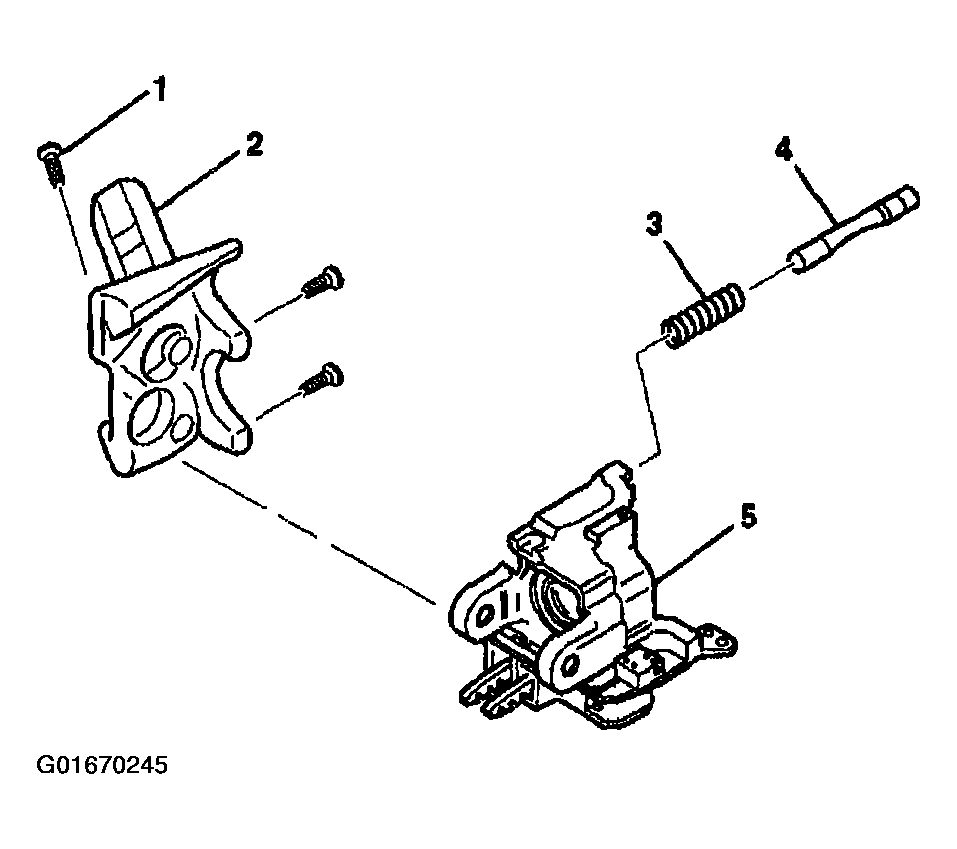

  7. Fig 1: Electronic Lock Module Assembly, Lock Bolt Spring, Lock Bolt Assembly & Steering Column Tilt Head Assembly (Floor Shift)
    G01670245Courtesy of GENERAL MOTORS CORP.
  8. Insert J 42759  into the electronic lock module assembly (1) and slide in the ignition and key alarm switch assembly (2).

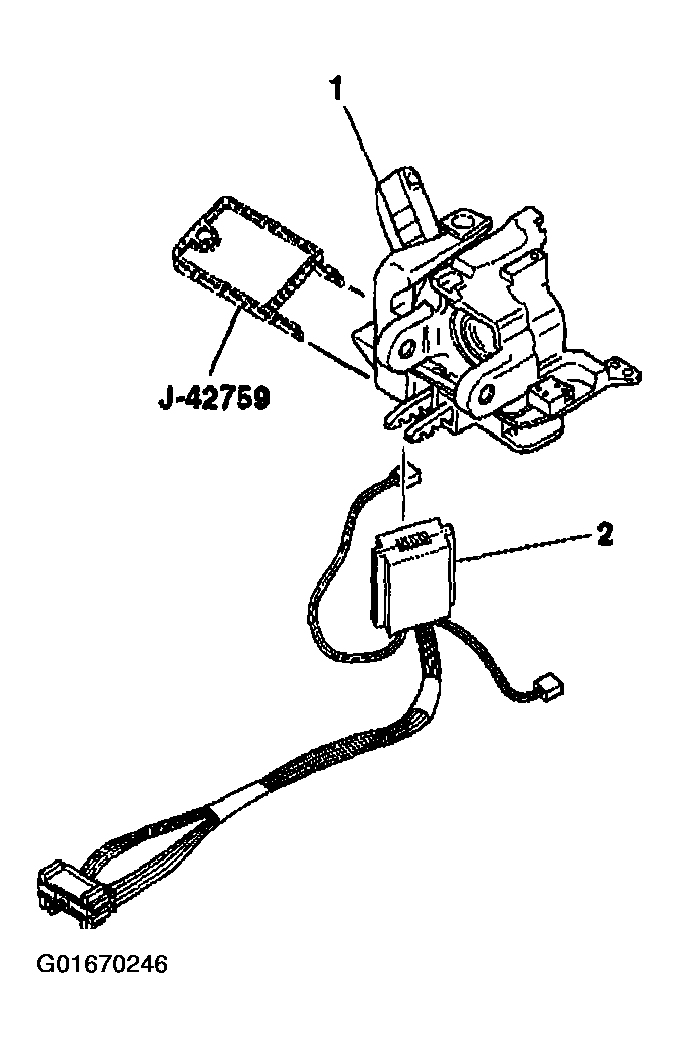

    Fig 2: Electronic Lock Module Assembly & Ignition/Key Alarm Switch Assembly (Floor Shift)
    G01670246Courtesy of GENERAL MOTORS CORP.
  9. Install the key alarm connector (1) onto the electronic lock module assembly (2) in the following way:
    1. 8.1. Push the key alarm connector (1) into the electronic lock module assembly (2).
    2. 8.2. Rotate the key alarm connector (1) 90 degrees so that the key alarm connector locks into place.
    3. 8.3. Install the passkey connector into the electronic lock module assembly (2).

    Important:  The abrasion sleeve must be installed back onto the steering column wire harness assembly. The electronic lock module assembly wires and connector must be hanging out of the middle of the abrasion sleeve.

  10. Install the steering column tilt head components. Refer to Steering Column Tilt Head Housing - Assemble - Off Vehicle .

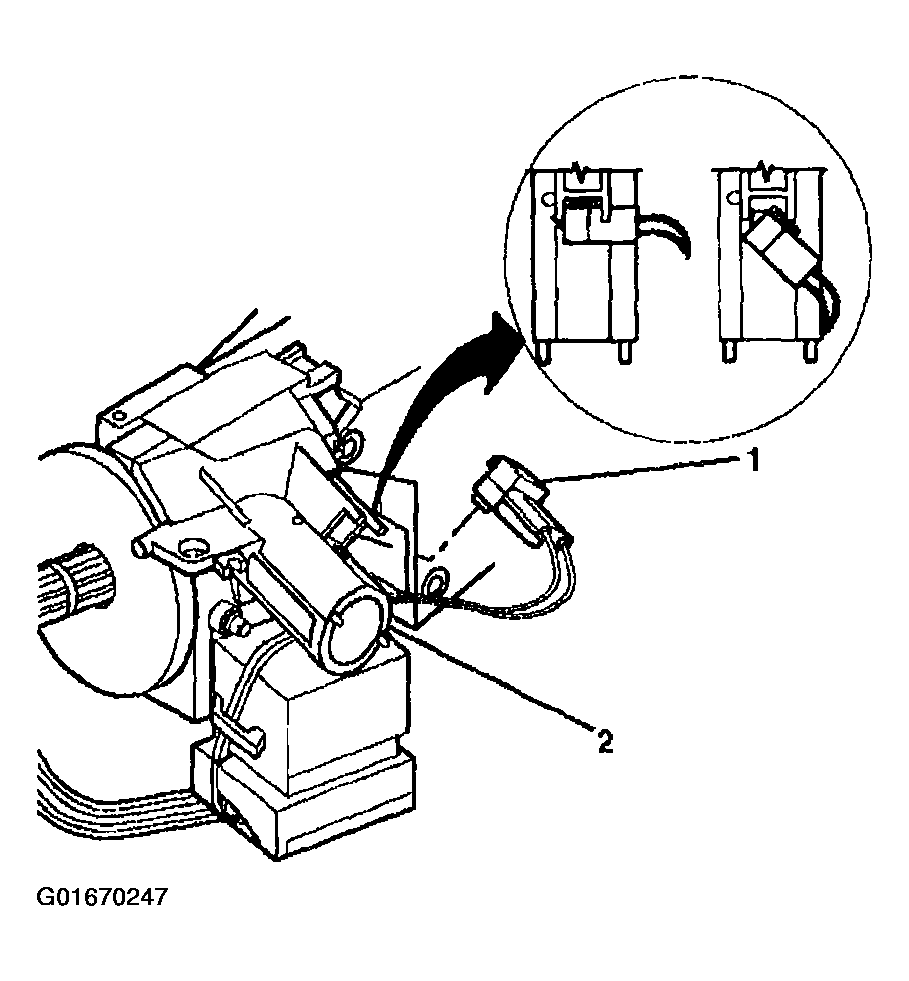

    Fig 3: Installing Key Alarm Connector Onto Electronic Lock Module Assembly (Floor Shift)
    G01670247Courtesy of GENERAL MOTORS CORP.
  11. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .
