Electric Park Lock Module - Assemble - Off Vehicle (Floor Shift)

Tools Required

J 41352  Modular Column Holding Fixture

1. Snap the electric park lock (2) onto the electronic lock module assembly (1).
2. Install the black connector into the electric park lock (2).

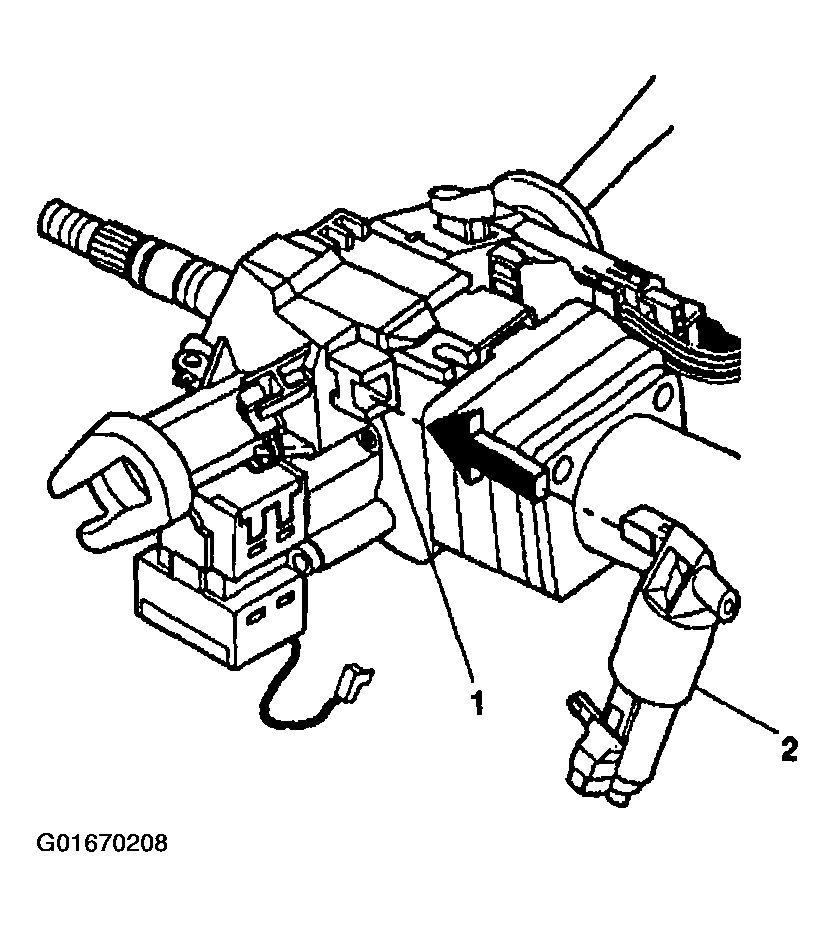

   Fig 1: Snapping Electric Park Lock Onto Electronic Lock Module Assembly (Floor Shift)

   Courtesy of GENERAL MOTORS CORP.
3. Install the upper trim cover (2) onto the steering column.
   NOTE: Refer to FASTENER NOTICE .
4. Screw the 2 TORX® head screws (1) into the upper trim cover (2).

   Tighten

   Tighten the 2 TORX® head screws to 1.5 N.m (13 lb in).

   Fig 2: Installing Upper Trim Cover & Screws (Floor Shift)

   Courtesy of GENERAL MOTORS CORP.
5. Install the lower trim cover onto the upper trim cover in the following way:
   1. 5.1. Match the tab slots on the lower trim cover with the locking tabs on the upper trim cover.
   2. 5.2. Tilt the lower trim cover up.
   3. 5.3. Slide the lower trim cover forward until the locking tabs snap into the tab slots.

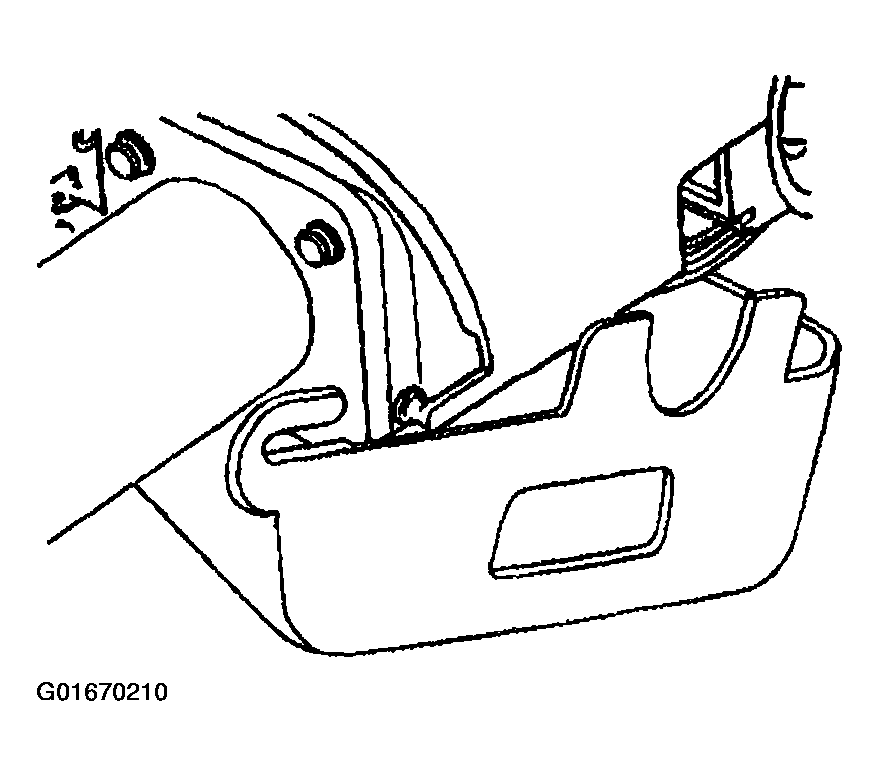

      Fig 3: Installing Lower Trim Cover Onto Upper Trim Cover (Floor Shift)

      Courtesy of GENERAL MOTORS CORP.
6. Screw the 2 pan head tapping screws (1) into the lower trim cover (2).

   Tighten

   Tighten the 2 pan head tapping screws to 3.5 N.m (31 lb in).

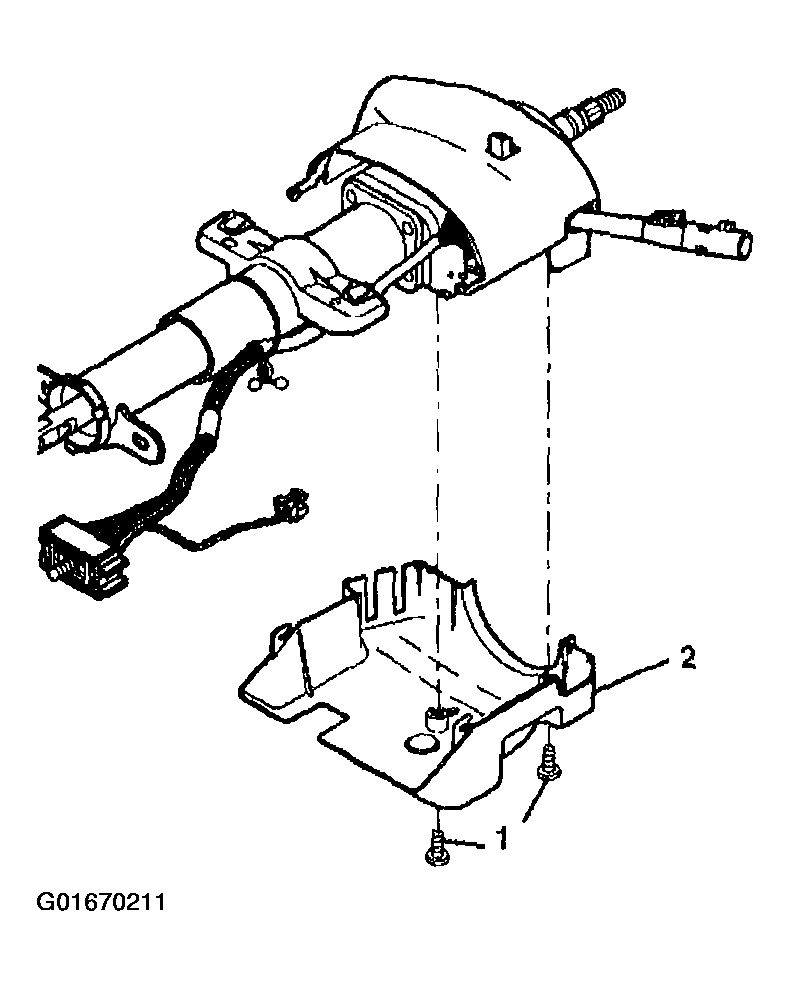

   Fig 4: Installing Screws Into Lower Trim Cover (Floor Shift)

   Courtesy of GENERAL MOTORS CORP.
7. Remove the steering column and J 41352  from the vise.

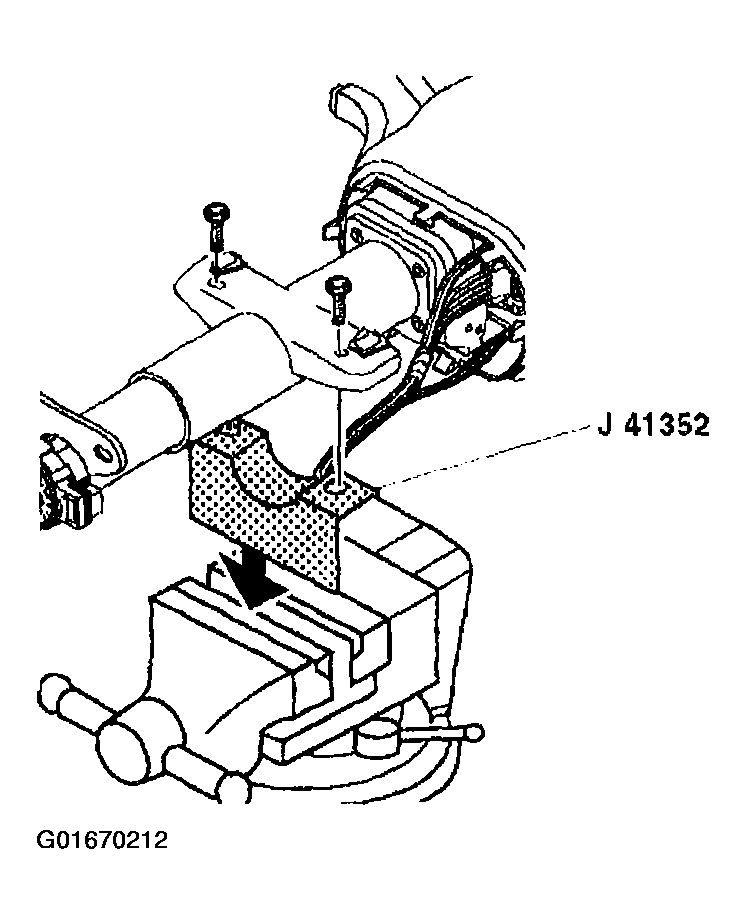

   Fig 5: Removing Steering Column & J 41352 From Vise (Floor Shift)

   Courtesy of GENERAL MOTORS CORP.
8. Install the tilt lever (1) into the steering column.

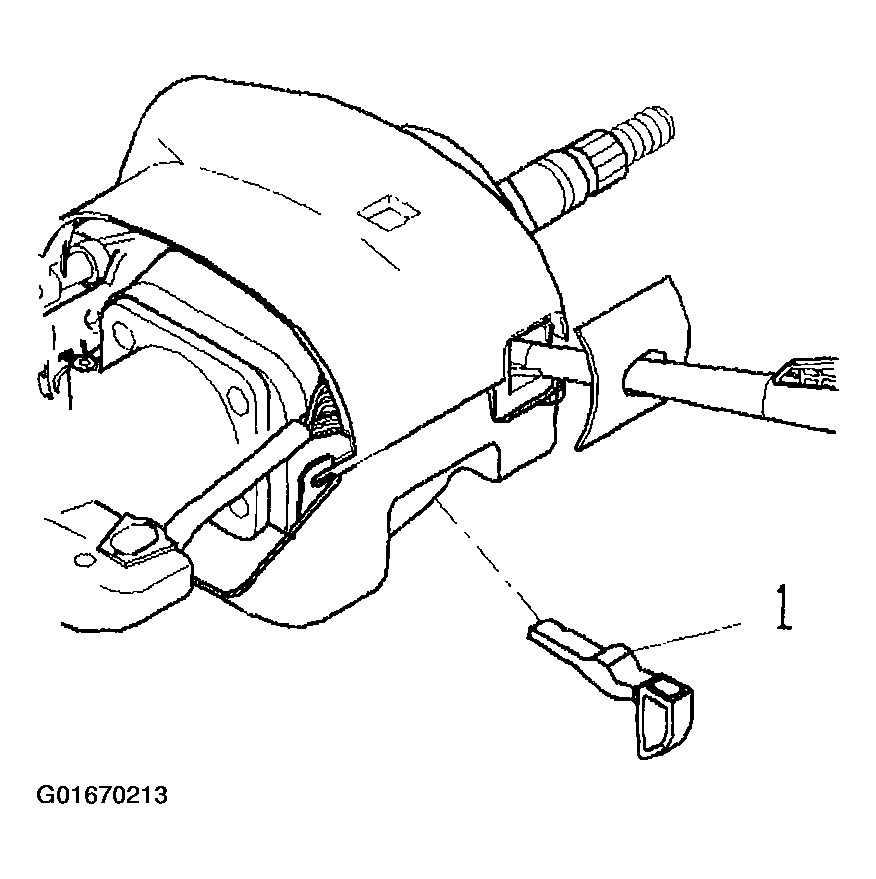

   Fig 6: Installing Tilt Lever (Floor Shift)

   Courtesy of GENERAL MOTORS CORP.
