5 Door

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Rear seat (See REAR SEAT REMOVAL/INSTALLATION .)
    2. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    6. Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
  2. Remove the screws, then remove the trunk board.
    Fig 1: Removing Trunk Board
    G02566819Courtesy of MAZDA MOTORS CORP.
  3. Remove the screws, then remove the cargo net hooks.
  4. Remove the fasteners.
  5. Detach the clip A and remove the trunk side trim.
  6. Install in the reverse order of removal.

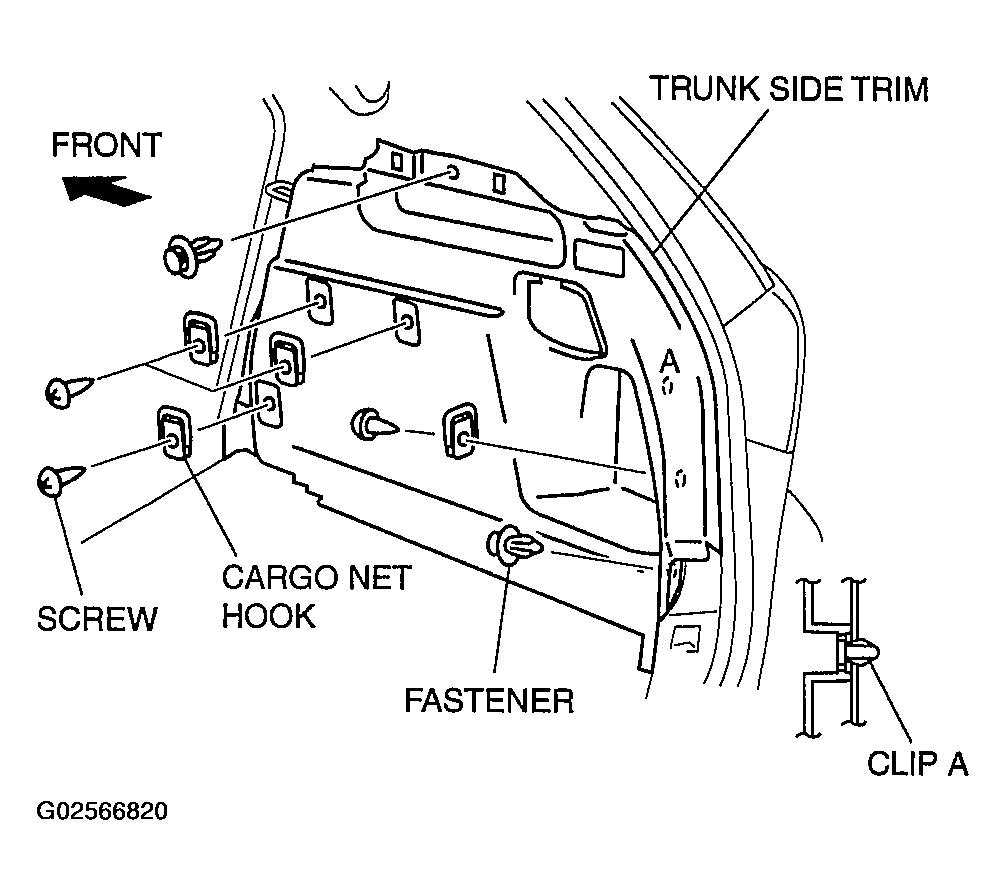

    Fig 2: Removing Trunk Side Trim
    G02566820Courtesy of MAZDA MOTORS CORP.
