5 Door

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Rear seat (See REAR SEAT REMOVAL/INSTALLATION .)
    2. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    4. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.
  3. Remove the fasteners.
  4. Detach clips A, B and locator pins C, using a fastener remover.
  5. Remove the C-pillar trim.
  6. Install in the reverse order of removal.

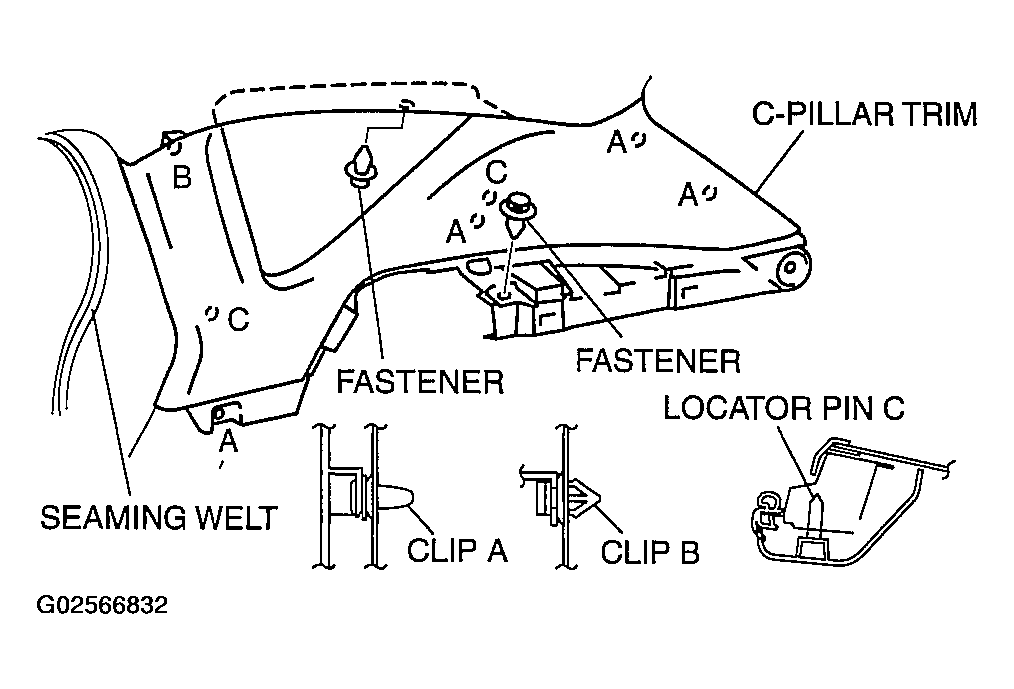

    Fig 1: Removing/Installing C-Pillar Trim - 5 Door
    G02566832Courtesy of MAZDA MOTORS CORP.
