Rear Door Unit Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Sail garnish (5 door) (See SAIL GARNISH REMOVAL/INSTALLATION .)
    2. Regulator handle (Vehicles with manual window system) (See REGULATOR HANDLE REMOVAL .) (See REGULATOR HANDLE INSTALLATION .)
    3. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    4. Rear door garnish (5 door) (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
    5. Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
    6. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
    7. Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
  2. Remove the rod from the outer handle.
  3. Disconnect the rear door wiring harness connector.
  4. Remove tabs A and B, then remove the rear door wiring harness bracket.

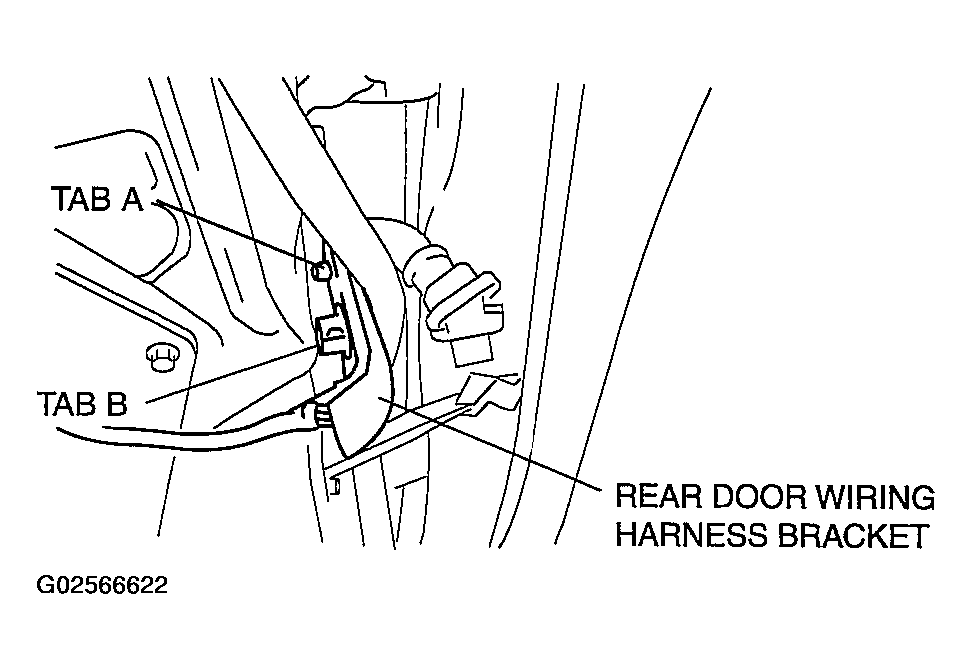

    Fig 1: Locating Rear Door Wiring Harness Bracket
    G02566622Courtesy of MAZDA MOTORS CORP.
  5. Remove screws A, B, and the fastener.
  6. Remove the rear door unit.
  7. Install in the reverse order of removal.

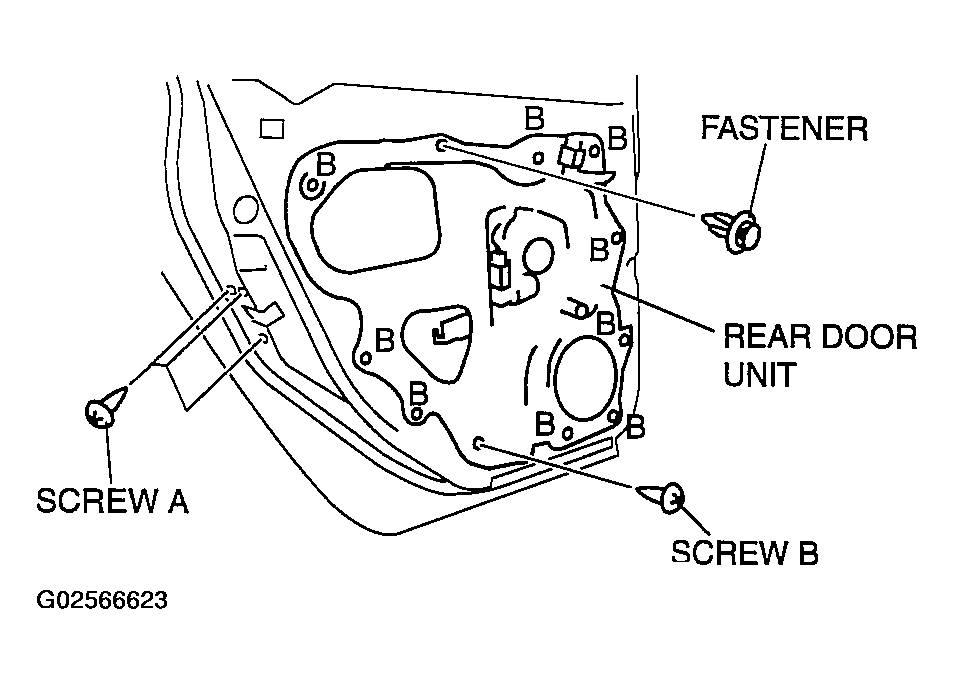

    Fig 2: Removing/Installing Rear Door Unit
    G02566623Courtesy of MAZDA MOTORS CORP.
