Rear Door Garnish Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sail garnish. (See SAIL GARNISH REMOVAL/INSTALLATION .)
  2. Remove the screws.
  3. Disengage clip A from the body by squeezing it from inside of the vehicle, and remove the rear door garnish.
  4. Install in the reverse order of removal.

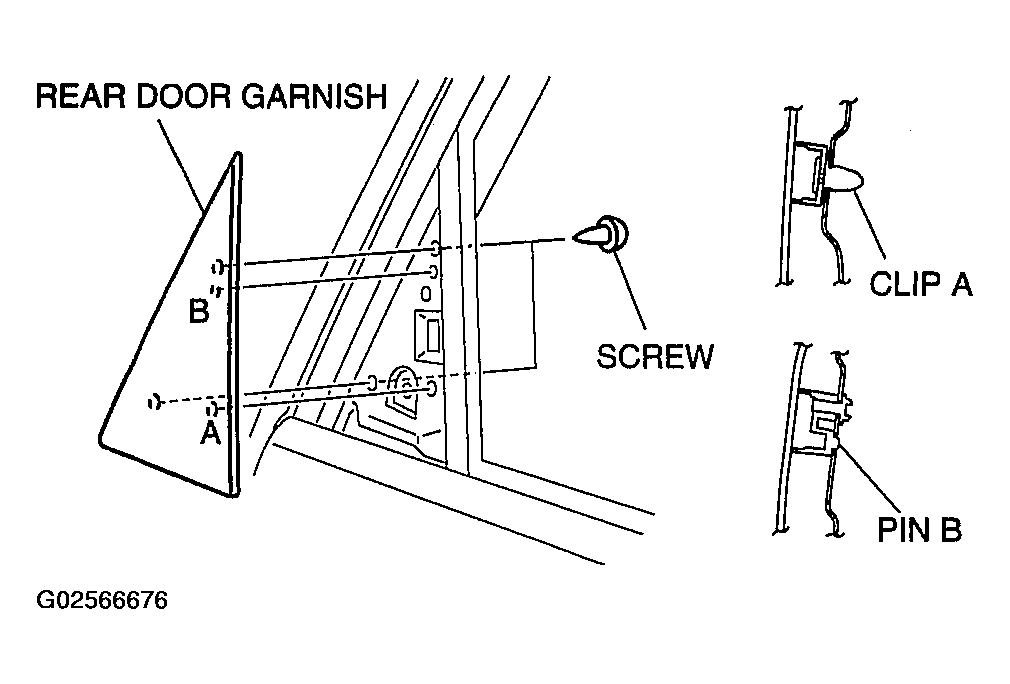

    Fig 1: Removing/Installing Rear Door Garnish
    G02566676Courtesy of MAZDA MOTORS CORP.
