2WD Transmissions

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

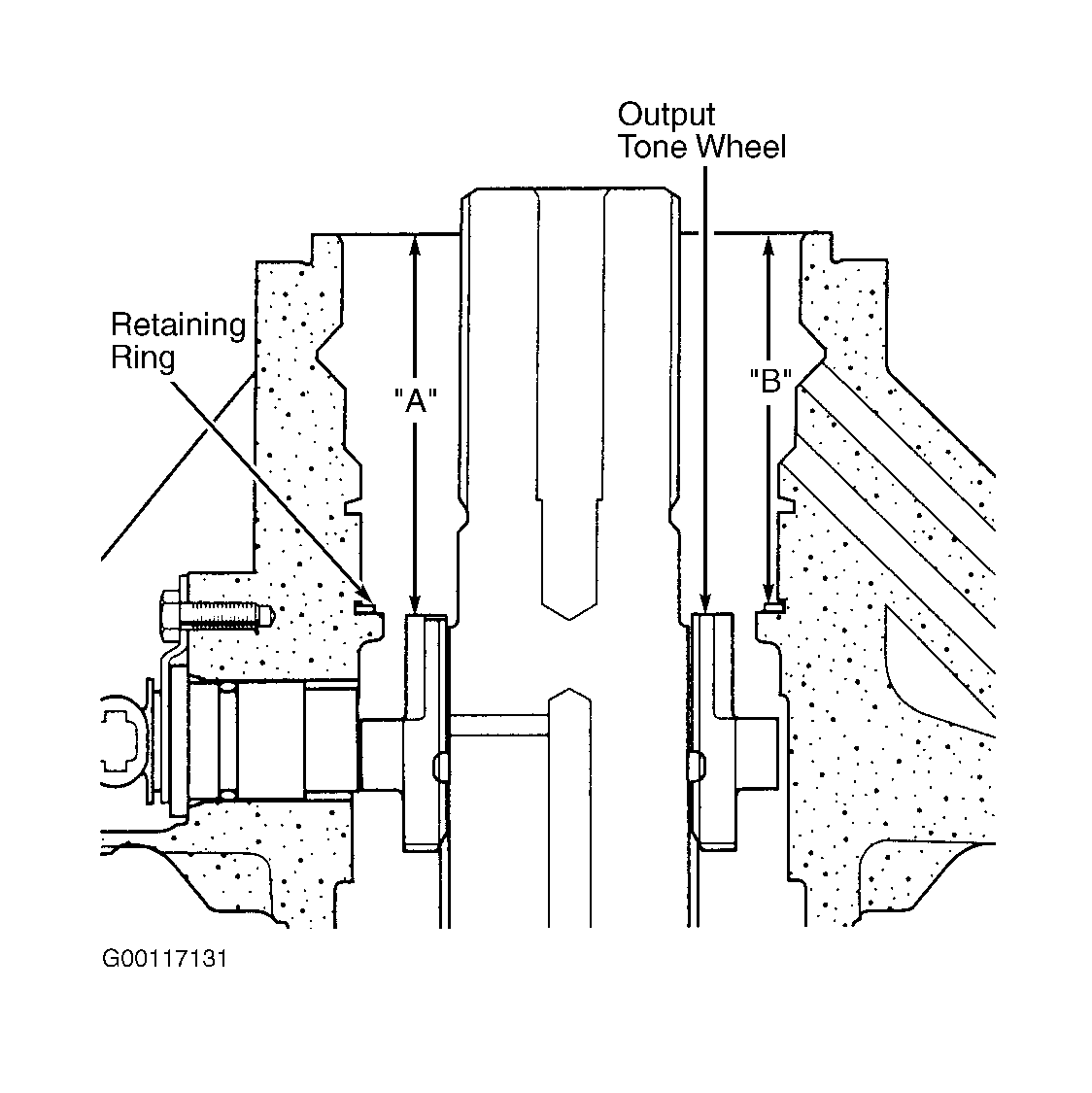

  1. Position main housing so rear is facing upward. Measure distance (dimension "A") from rear face of rear cover to rear face of output shaft tone wheel. See Figure.
  2. Measure distance from rear face of rear cover module to rear face of the retaining ring (dimension "B"). See Figure. Calculate selective spacer size (dimension "C") by subtracting dimension "B" from dimension "A". Compare result to proper spacer size. See REAR COVER SELECTIVE SPACER IDENTIFICATION  table. Install proper selective spacer onto output shaft.
