Output Shaft Bushing Inspection
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

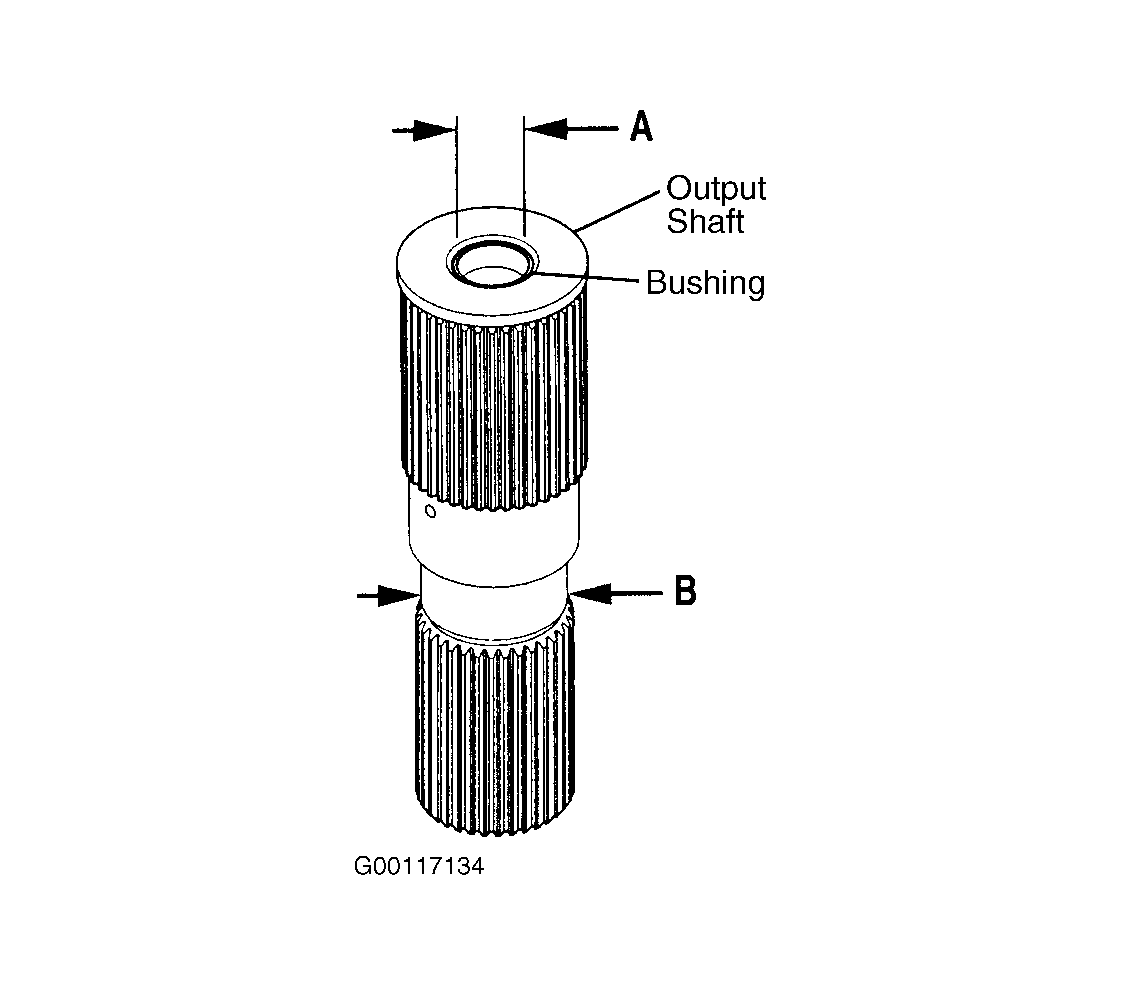

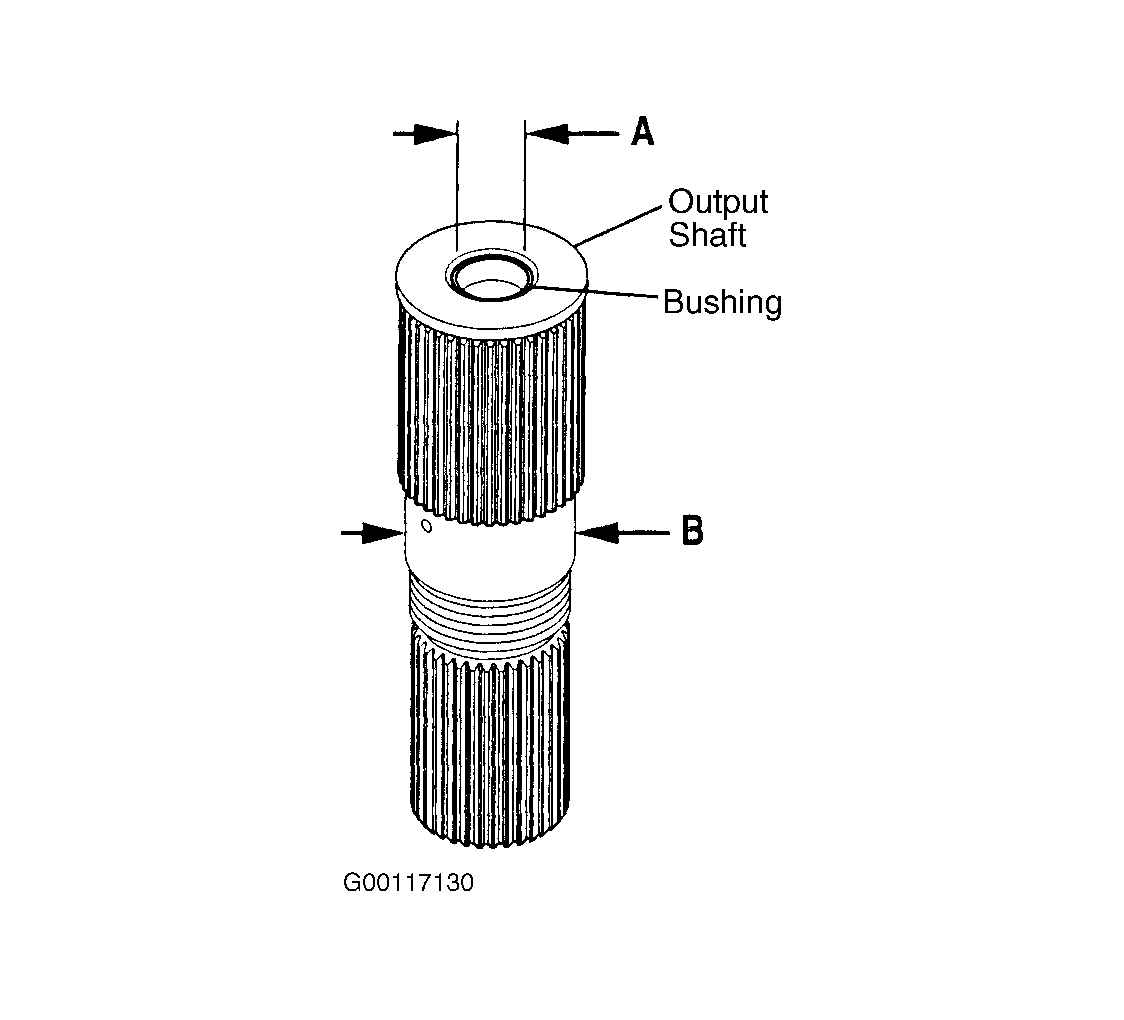

Inspect output shaft bushing for wear or damage. Measure inside diameter of bushing (dimension "A"). See Fig 1 or Fig 2 . Compare measurements to specifications. See REAR COVER MODULE SPECIFICATIONS table under TRANSMISSION SPECIFICATIONS. If measurement is more than specification, replace bushing. Measure outside diameter of bearing surface (dimension "B"). Compare measurements to specifications. If measurement is less than specification, replace the output shaft.
