Transmission Specifications
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.
FRONT SUPPORT & MAIN PUMP MODULE SPECIFICATIONS
| Application | In. (mm) | ||||||
|---|---|---|---|---|---|---|---|
| Ground Sleeve | |||||||
| Bushing Inside Diameter (Maximum) | 1.3315 (33.820) | ||||||
| Inside Diameter At Shaft Seal Ring Bore (Maximum) | 1.7894 (45.451) | ||||||
| Spline Wear (Maximum) | 0.000 (0.00) | ||||||
| Main Pump | |||||||
| Bushing Inside Diameter (Maximum) | 2.3015 (58.458) | ||||||

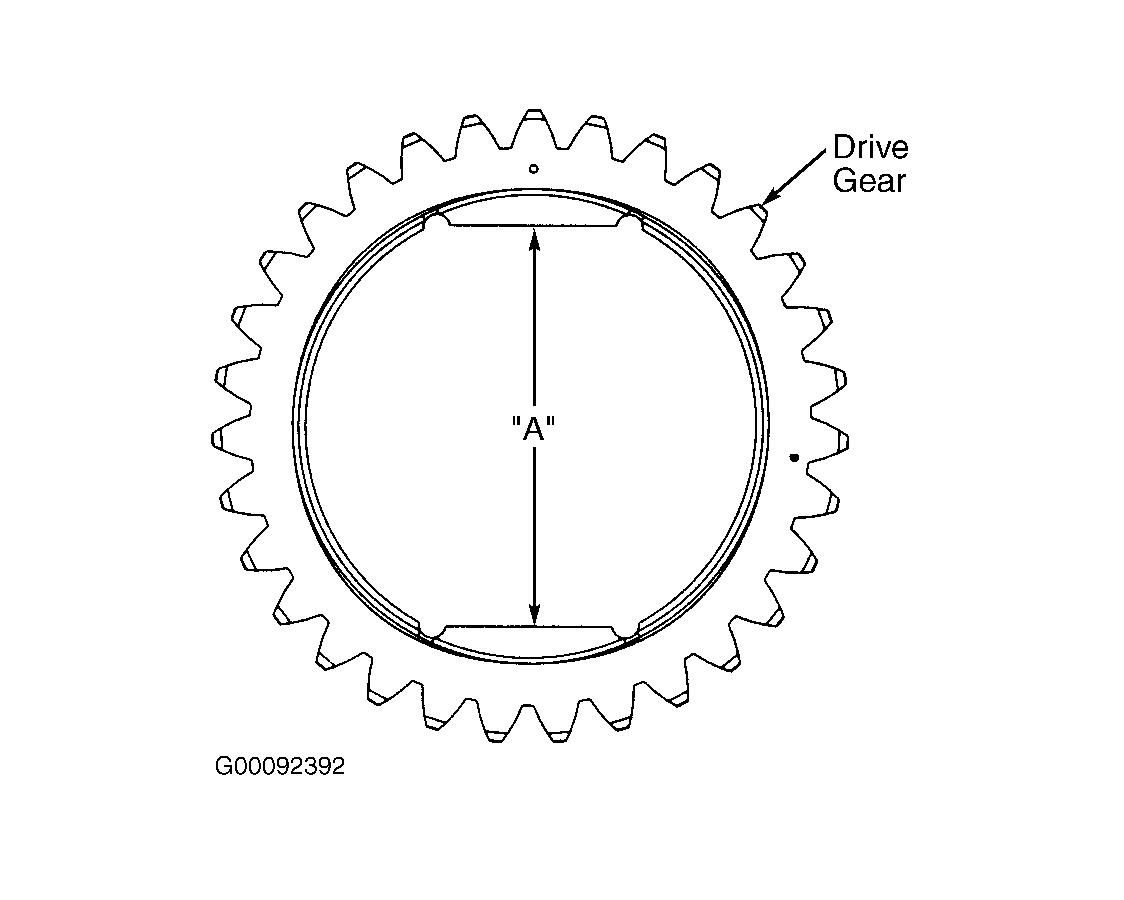

| Drive Gear Distance Between Flats - Dimension "A" (2)(Maximum) | 2.0537 (52.164) | ||||||
| Drive Gear-To-Wear Plate Side Clearance (Maximum) | .0026 (.066) | ||||||
| Driven Gear | |||||||
| Diameter Clearance W/Pump Body (Maximum) | .0080 (.203) | ||||||
| Outside Diameter (Minimum) | 4.2908 (108.986) | ||||||
| Tooth Clearance W/Crescent (Maximum) | .0179 (.455) | ||||||
| To-Wear Plate Side Clearance (Maximum) | .0022 (.056) | ||||||
| Gear Cavity | |||||||

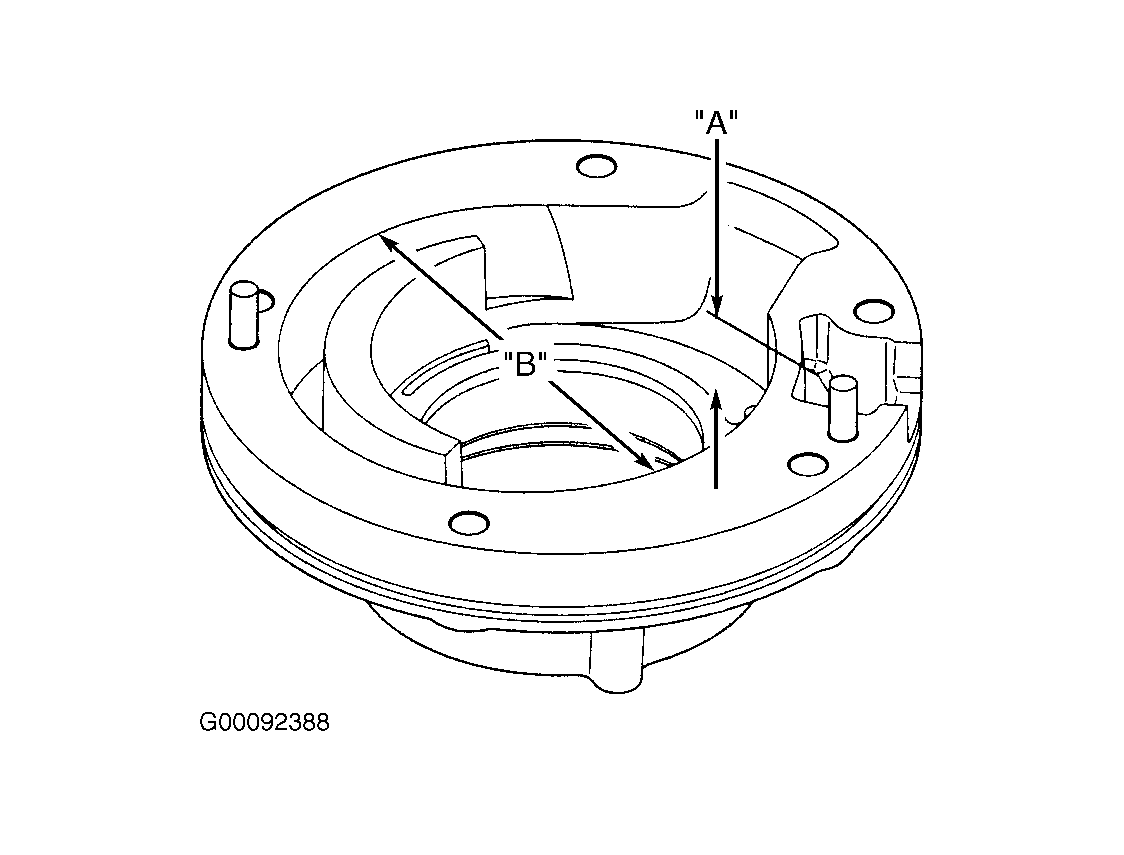

| Dimension "A" (1) (Maximum) | 0.9819 (24.940) | ||||||
| Dimension "B" (1) (Maximum) | 4.2988 (109.190) | ||||||
| Wear Plate Thickness (Minimum) | .1161 (2.950) | ||||||
| Thrust Washer Thickness (Minimum) | .059 (1.50) | ||||||
|
|||||||
MAIN HOUSING MODULE SPECIFICATIONS
| Application | In. (mm) | ||
|---|---|---|---|
| Clutch Plate Spline Wear (Notching) | .0450 (1.143) | ||
| C3 Backplate | |||
| Cone (Maximum) | .0000 (.000) | ||
| Thickness (Minimum) | .6033 (15.324) | ||
| Thrust Washer Inner Rim Thickness (Minimum) | .1150 (2.921) | ||
| C3/C4 Friction Plate | |||
| Cone (Maximum) | .0089 (.226) | ||
| Oil Groove Depth (Minimum) | .0079 (.201) | ||
| Thickness (Minimum) | .0935 (2.375) | ||
| C3/C4 Spring Plate | |||
| Cone (Maximum) | .0157 (.399) | ||
| Thickness (Minimum) | .1224 (3.109) | ||
| C3/C4 Steel Reaction Plate | |||
| Cone (Maximum) | .0157 (.399) | ||
| Thickness (Minimum) | .0961 (2.441) | ||
| C4 Backplate | |||
| Cone (Maximum) | .0000 (.000) | ||
| Thickness (Minimum) | .6063 (15.400) | ||
| C5 Backplate | |||
| Cone (Maximum) | .0000 (0.000) | ||
| Thickness (Minimum) | .7047 (17.899) | ||
| C5 Friction Plate | |||
| Cone (Maximum) | .0089 (.226) | ||
| Oil Groove Depth (Minimum) | .0079 (.201) | ||
| Thickness (Minimum) | .0935 (2.375) | ||
| C5 Steel Reaction Plate | |||
| Cone (Maximum) | .0116 (.295) | ||
| Thickness (Minimum) Selective | |||
| No. 29536481 | .0762 (1.935) | ||
| No. 29536482 | .0959 (2.436) | ||
| No. 29536483 | .1156 (2.936) | ||
| P1 Planetary Ring Gear Spline Wear (Maximum) (Notching) | .0150 (.381) | ||
PLANETARY GEAR MODULE SPECIFICATIONS
| Application | In. (mm) | |
|---|---|---|
| Main Shaft | ||
| Journal Minimum Outside Diameter (P2 Carrier Bushing) | 1.4333 (36.406) | |
| Pilot Minimum Outside Diameter (Turbine & Output Shafts) | .7869 (19.987) | |
| P1 Carrier Assembly | ||
| Bushing Inside Diameter (Maximum) | 1.9957 (50.690) | |
| Pinion Gear End Play (Maximum) | .0400 (1.010) | |
| P2 Ring Gear Spline Wear (Maximum) (Notching) | .0150 (.381) | |
| Thrust Washer Thickness (Minimum) | .059 (1.50) | |
| To-Thrust Washer End Play (Maximum) | .0400 (1.010) | |
| P2 Carrier Assembly | ||
| Bushing Inside Diameter (Maximum) | 1.4404 (36.586) | |
| Pinion Gear End Play (Maximum) | .0400 (1.010) | |
| P3 Ring Gear Spline Wear (Maximum) (Notching) | .0150 (.381) | |
| To-Thrust Washer End Play (Maximum) | .0400 (1.010) | |
REAR COVER MODULE SPECIFICATIONS
| Application | In. (mm) | |
|---|---|---|
| Output Shaft | ||
| Bearing Surface Outside Diameter (Minimum) | 1.7708 (44.978) | |
| Bushing Inside Diameter (Maximum) | .7925 (20.130) | |
| Output Yoke Seal Surface Outside Diameter (Minimum) | 2.5622 (65.080) | |
| P3 Carrier Assembly | ||
| Parking Pawl Gear Wear | .000 (.00) | |
| Pinion Gear End Play (Maximum) | .0400 (1.010) | |
| To-Thrust Washer End Play (Maximum) | .0400 (1.010) | |
ROTATING CLUTCH MODULE SPECIFICATIONS
| Application | In. (mm) | ||
|---|---|---|---|
| C1 Backplate | |||
| Cone (Maximum) | .000 (.00) | ||
| Thickness (Minimum) Selective | |||
| No. 29536221 | .4661 (11.839) | ||
| No. 29536222 | .4835 (12.280) | ||
| No. 29536223 | .5012 (12.730) | ||
| No. 29536224 | .5189 (13.180) | ||
| No. 29536225 | .5366 (13.630) | ||
| C1 Friction Plate | |||
| Cone (Maximum) | .0100 (.254) | ||
| Oil Groove Depth (Minimum) | .0079 (.201) | ||
| Thickness (Minimum) | .0935 (2.375) | ||
| C1 Steel Reaction Plate | |||
| Cone (Maximum) | .0079 (.201) | ||
| Thickness (Minimum) | .0841 (2.136) | ||
| C2 Friction Plate | |||
| Cone (Maximum) | .0089 (.226) | ||
| Oil Groove Depth (Minimum) | .0079 (.201) | ||
| Thickness (Minimum) | .0935 (2.375) | ||
| C2 Steel Reaction Plate | |||
| Cone (Maximum) | .0094 (.239) | ||
| Thickness (Minimum) | .0841 (2.136) | ||
| Housing | |||
| Bushing Inside Diameter (Maximum) | 3.0776 (78.171) | ||
| Rotating Seal Bore Inside Diameter (Maximum) | 2.9154 (74.051) | ||
| Thrust Washer Thickness (Minimum) | .102 (2.59) | ||
| Turbine Shaft | |||
| Bushing Inside Diameter (Maximum) | .7925 (20.130) | ||
| End Play | .0610 (1.549) | ||

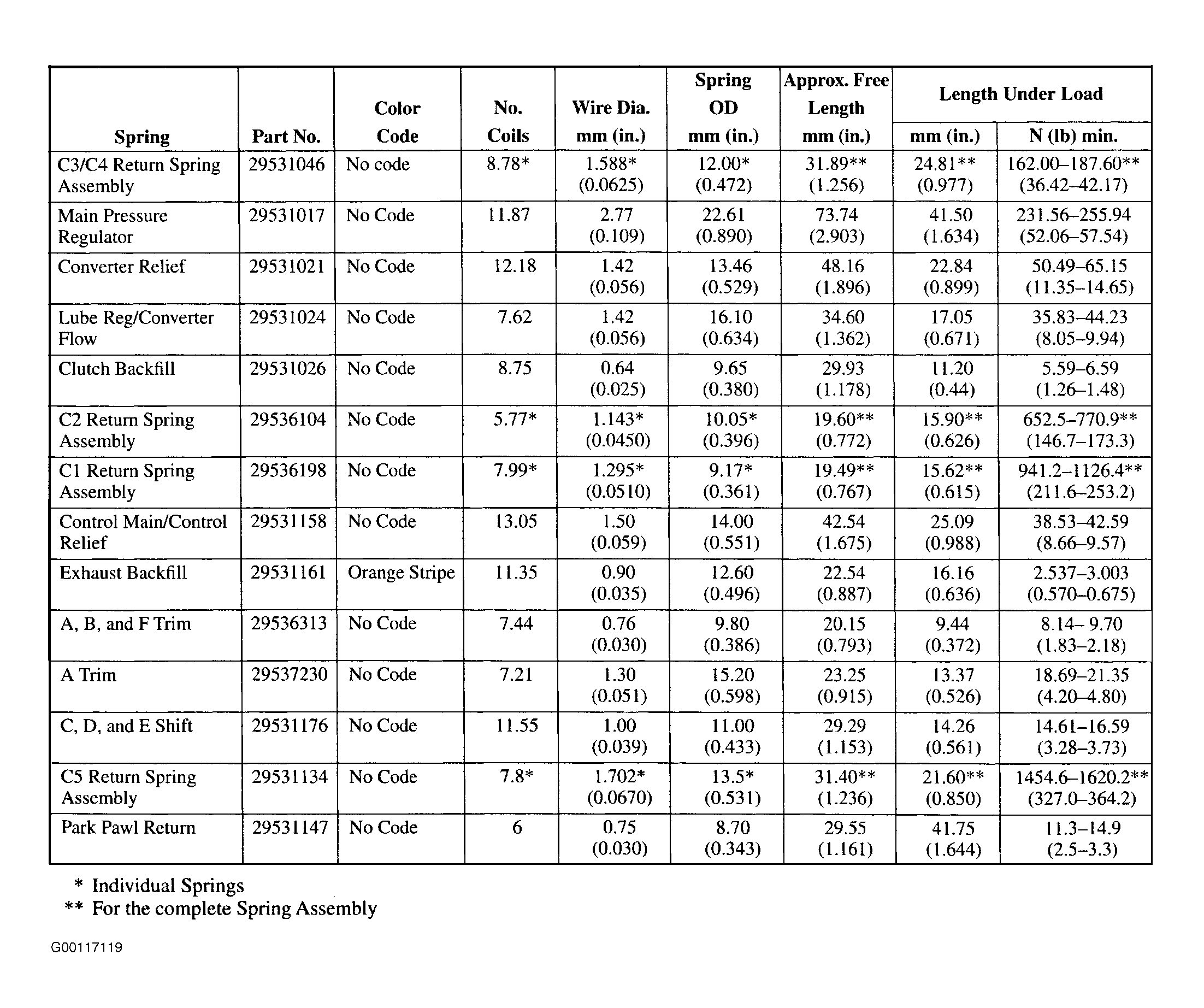

TORQUE CONVERTER MODULE SPECIFICATIONS
| Application | In. (mm) | |
|---|---|---|
| Cover Pilot Outside Diameter (Minimum) | 1.699 (43.15) | |
| Converter Pump Hub Distance Between Flats (Minimum) | 2.0351 (51.692) | |
| Converter Pump Hub Outside Diameter (Minimum) | 2.2933 (58.250) | |
| Maximum Torque Converter End Play | ||
| New | .0300 (.762) | |
| Used | .0400 (1.016) | |
