P3 Planetary Carrier Assembly: Inspection
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

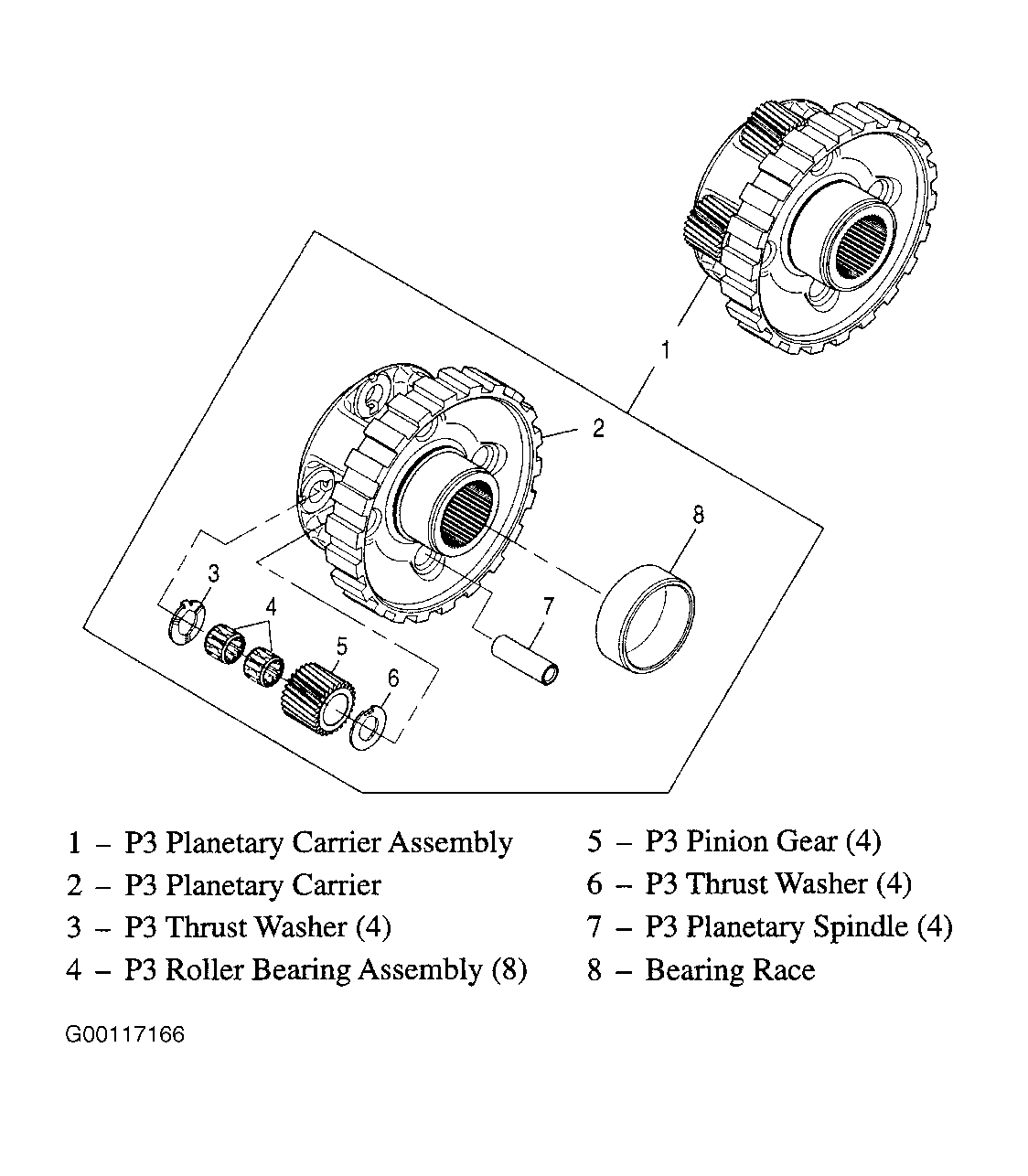

- Check end play between P3 planetary carrier and a thrust washer at each pinion gear, using a feeler gauge. See Figure and Fig 1 . Compare measurements to specifications. See REAR COVER MODULE SPECIFICATIONS table under TRANSMISSION SPECIFICATIONS. If end play exceeds specification, replace P3 planetary carrier assembly.

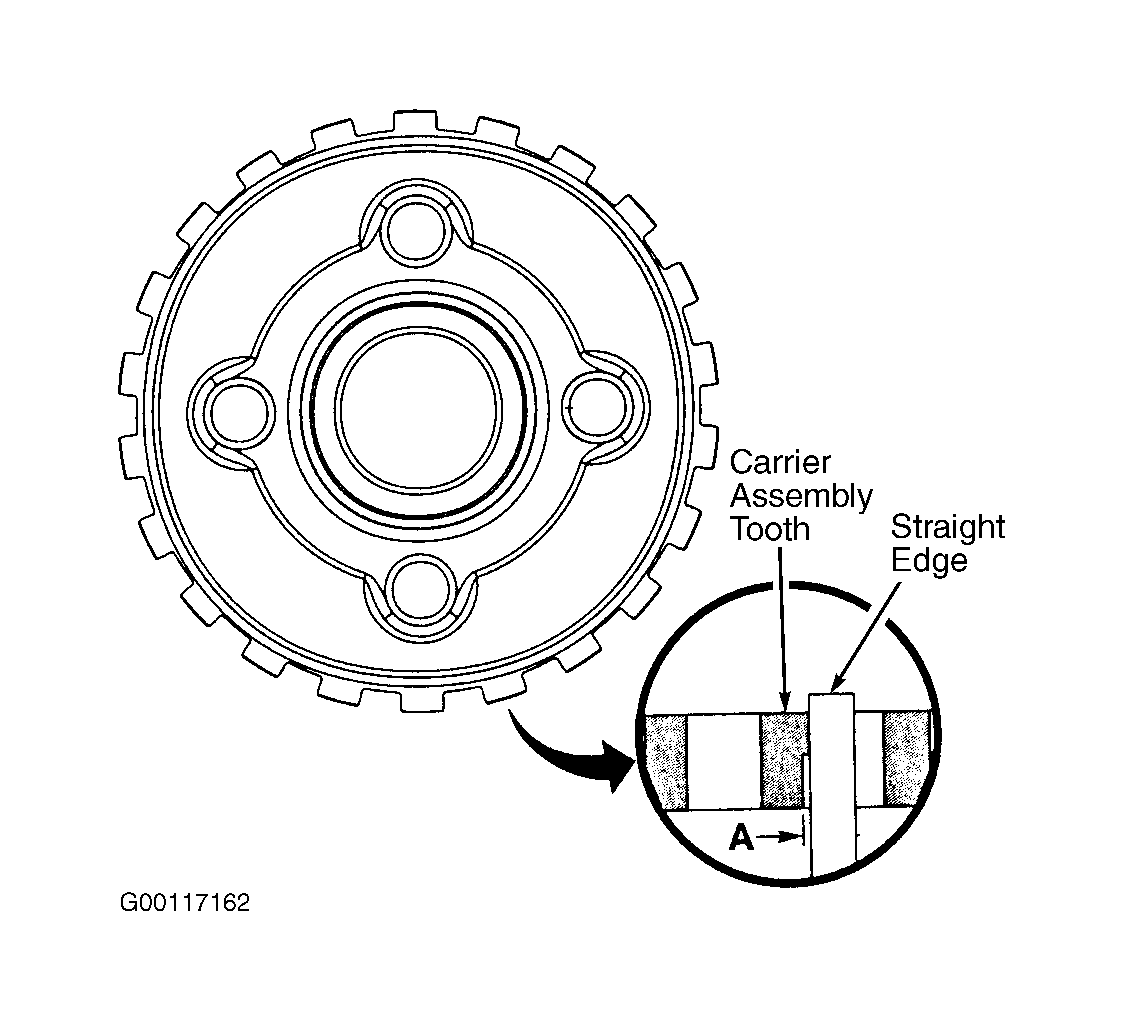

- If equipped with a parking pawl, for each planetary carrier assembly tooth, place a straightedge against side of carrier assembly tooth. Measure wear on carrier assembly tooth (dimension "A"). See Fig 2. Compare measurements to specifications. See REAR COVER MODULE SPECIFICATIONS table under TRANSMISSION SPECIFICATIONS. If wear exceeds specification, replace P3 planetary carrier assembly.
