P1 Planetary Carrier Assembly Inspection
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

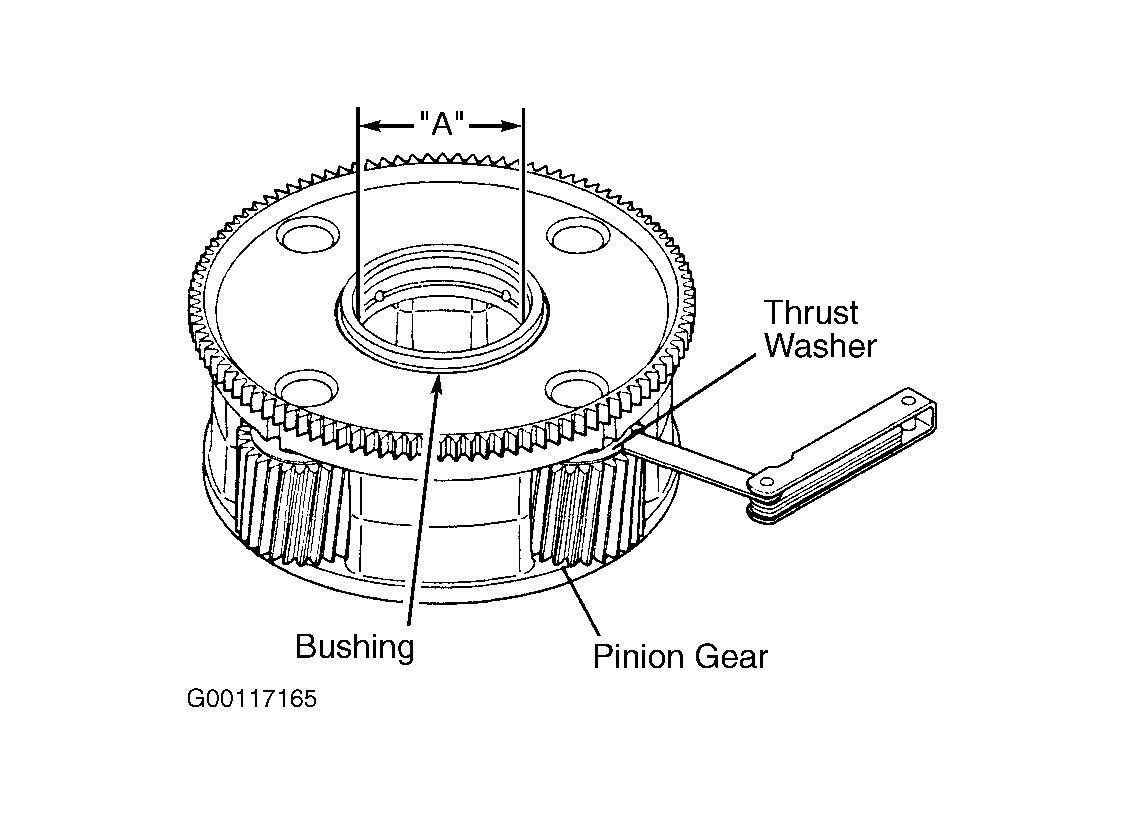

- Check end play between P1 planetary carrier and a thrust washer at each pinion gear, using a feeler gauge. See Fig 1. Compare measurements to specifications. See PLANETARY GEAR MODULE SPECIFICATIONS table under TRANSMISSION SPECIFICATIONS. If end play is not within specifications, replace P1 planetary carrier assembly.
- Inspect bushing for wear or damage. Measure inside diameter of bushing (dimension "A"). See Fig 1. Compare measurements to specifications. See PLANETARY GEAR MODULE SPECIFICATIONS table under TRANSMISSION SPECIFICATIONS. If bushing inside diameter is not within specification, replace bushing.
