Generator Control Module Coolant Radiator Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

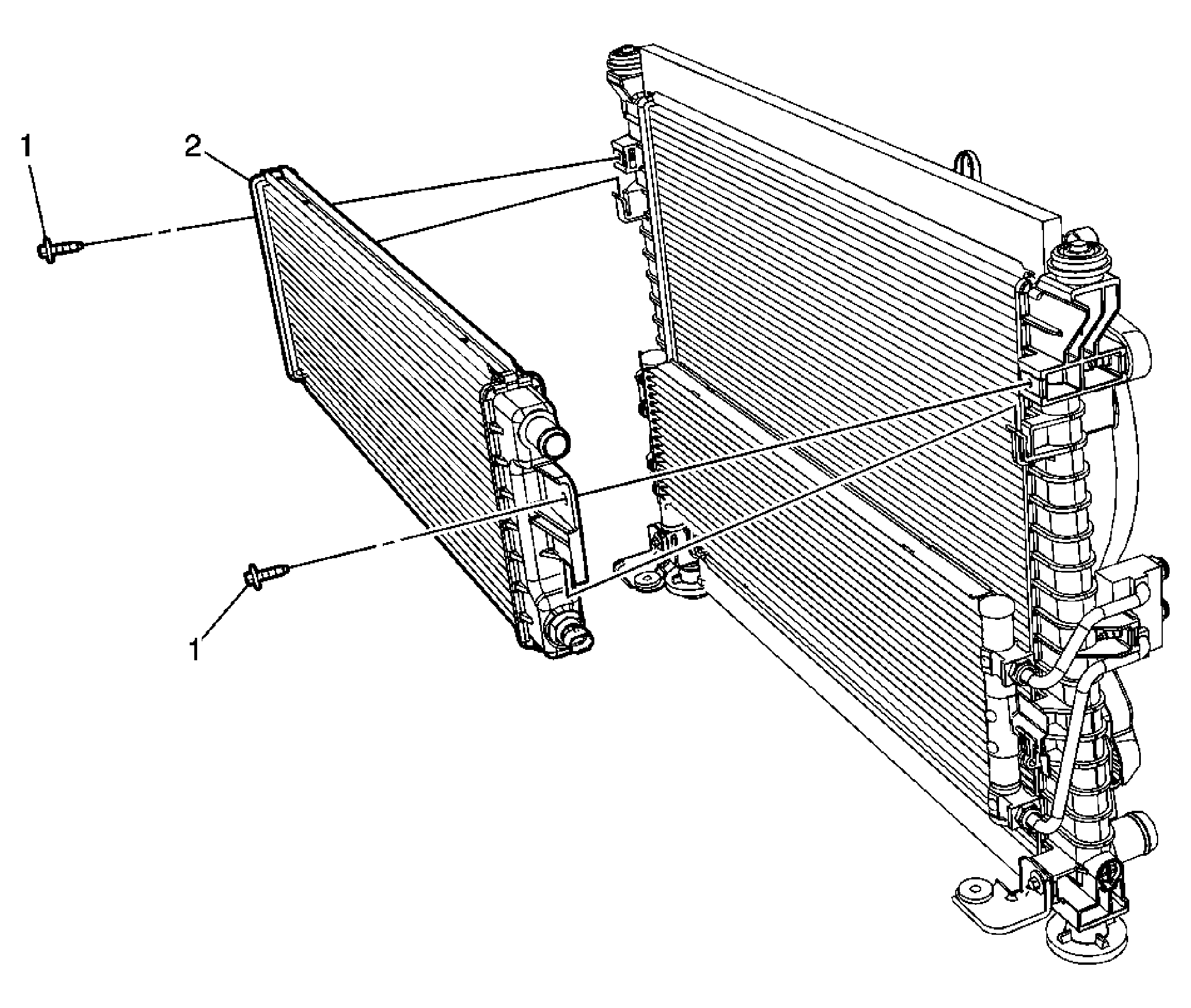

Fig 1: Generator Control Module Coolant Radiator Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the generator control module cooling system. Refer to Generator Control Module Cooling System Draining and Filling Remove the air conditioning condenser. Refer to Air Conditioning Condenser Replacement (With HP5) Remove the generator control module coolant pump hose - pump to radiator inlet. Refer to Generator Control Module Coolant Pump Hose Replacement - Pump to Radiator Inlet Remove the generator control module coolant inlet hose. Refer to Generator Control Module Coolant Inlet Hose Replacement If replacing radiator then transfer coolant temperature sensor. Refer to Coolant Temperature Sensor Replacement
1	Generator Control Module Coolant Radiator Bolts (Qty 2). CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Generator Control Module Coolant Radiator

Callout

Component Name

Preliminary Procedures

Drain the generator control module cooling system. Refer to Generator Control Module Cooling System Draining and Filling
Remove the air conditioning condenser. Refer to Air Conditioning Condenser Replacement (With HP5)
Remove the generator control module coolant pump hose - pump to radiator inlet. Refer to Generator Control Module Coolant Pump Hose Replacement - Pump to Radiator Inlet
Remove the generator control module coolant inlet hose. Refer to Generator Control Module Coolant Inlet Hose Replacement
If replacing radiator then transfer coolant temperature sensor. Refer to Coolant Temperature Sensor Replacement

Generator Control Module Coolant Radiator Bolts (Qty 2).

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Generator Control Module Coolant Radiator
