Generator Control Module Coolant Pump Hose Replacement - Pump to Radiator Inlet

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

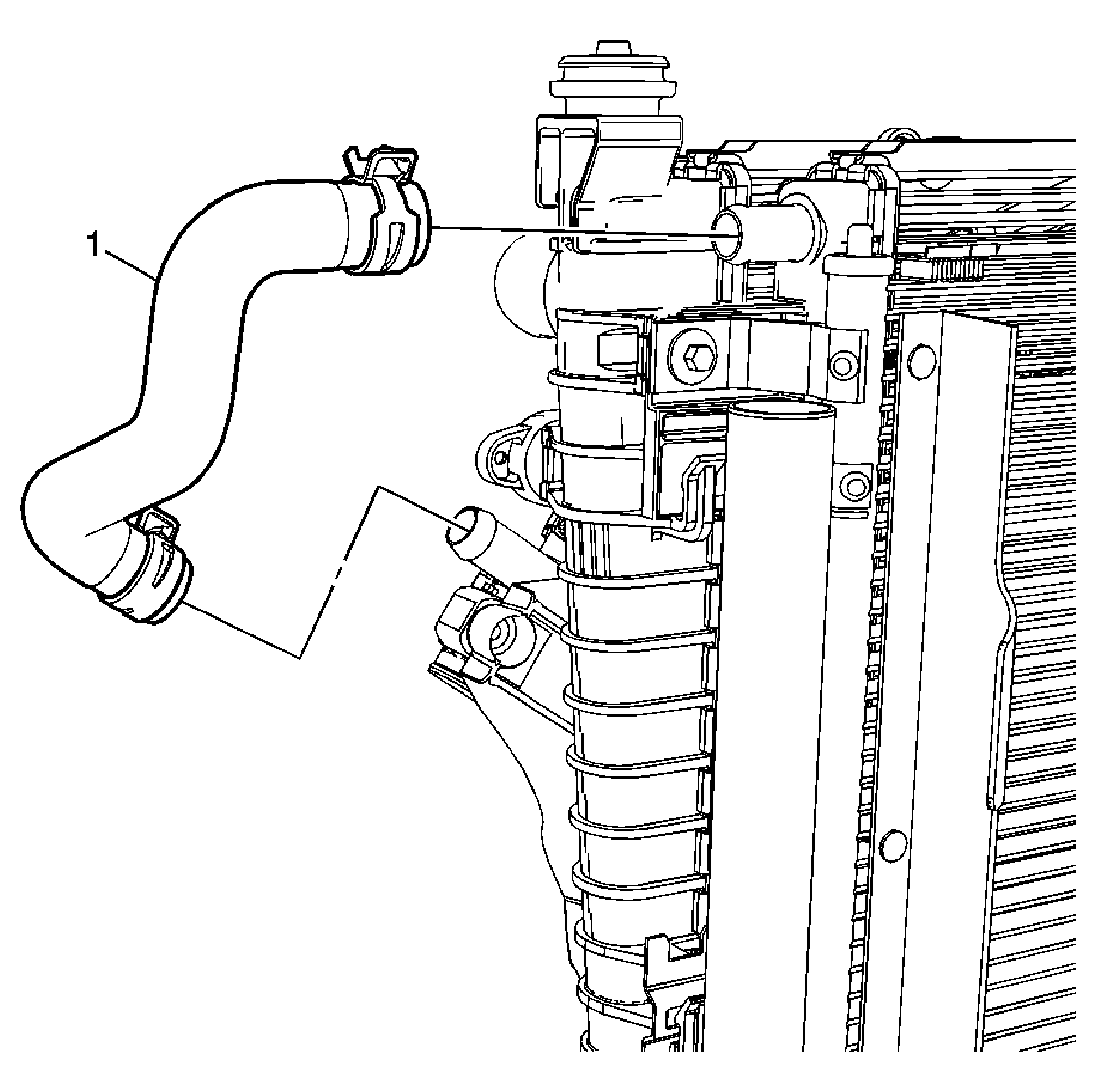

Fig 1: Generator Control Module Coolant Pump Hose Replacement - Pump to Radiator Inlet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the generator control module cooling system. Refer to Generator Control Module Cooling System Draining and Filling Remove right headlamp. Refer to Headlamp Replacement Remove the radiator opening upper cover. Refer to Radiator Opening Upper Cover Replacement Remove the front end guard. Refer to Front End Guard Replacement
1	Generator Control Module Coolant Pump Hose - Pump to Radiator Inlet Procedure: Reposition the 2 hose clamps usingJ 38185: Hose Clamp Pliers Special Tools: J 38185: Hose Clamp Pliers

Callout

Component Name

Preliminary Procedures

Drain the generator control module cooling system. Refer to Generator Control Module Cooling System Draining and Filling
Remove right headlamp. Refer to Headlamp Replacement
Remove the radiator opening upper cover. Refer to Radiator Opening Upper Cover Replacement
Remove the front end guard. Refer to Front End Guard Replacement

Generator Control Module Coolant Pump Hose - Pump to Radiator Inlet
Procedure:
Reposition the 2 hose clamps usingJ 38185: Hose Clamp Pliers
Special Tools:
J 38185: Hose Clamp Pliers
