Coolant Temperature Sensor Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

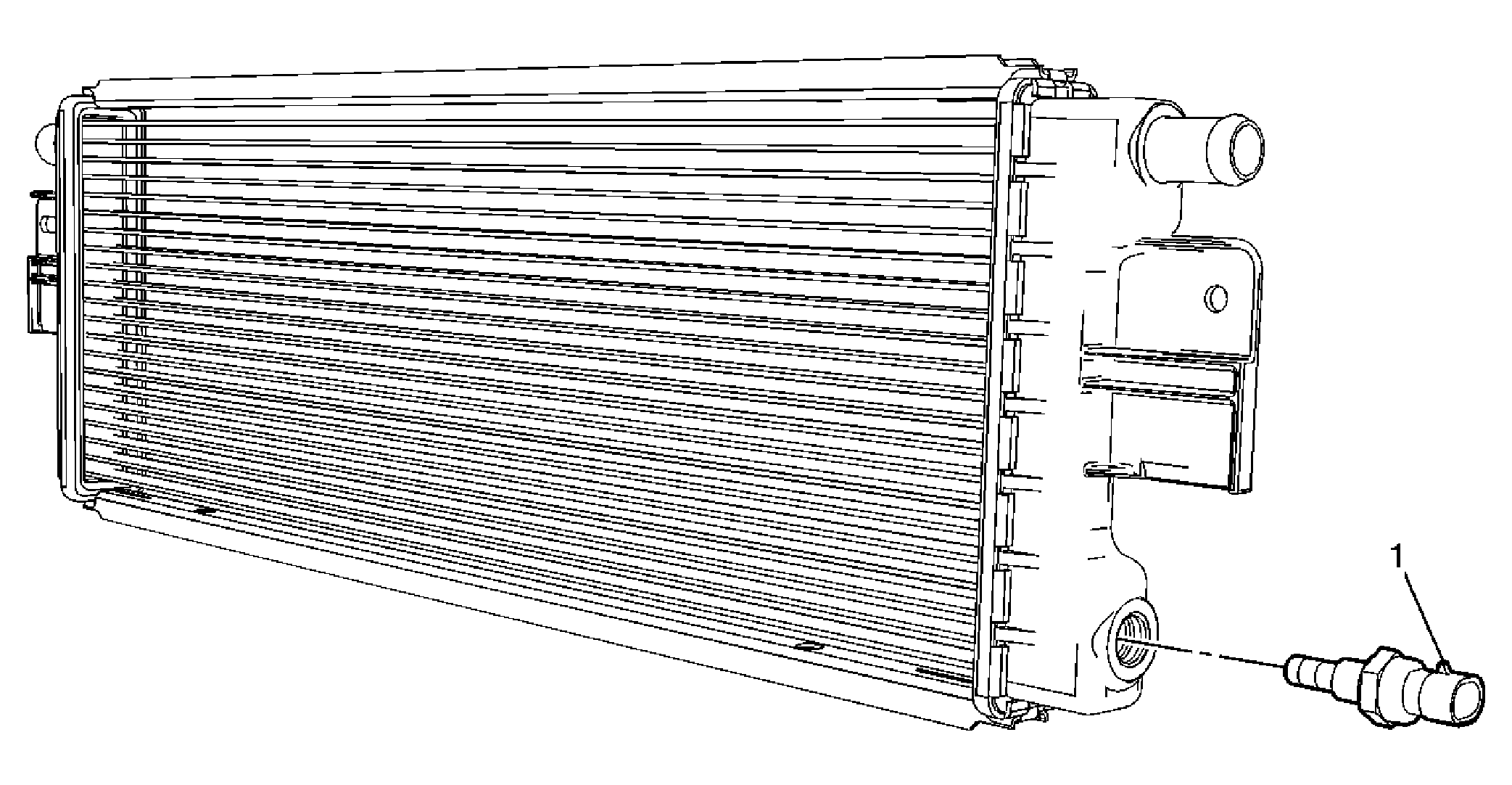

Fig 1: Coolant Temperature Sensor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the generator control module coolant system. Refer to Generator Control Module Cooling System Draining and Filling Remove the left headlamp. Refer to Headlamp Replacement Disconnect the engine wiring harness electrical connector from the coolant temperature sensor.
1	Coolant Temperature Sensor CAUTION: Refer to Fastener Caution . Tip: Coolant temperature sensor is located in the generator control module coolant radiator. Tighten: 20 N.m (15 lb in)

Callout

Component Name

Preliminary Procedures

Drain the generator control module coolant system. Refer to Generator Control Module Cooling System Draining and Filling
Remove the left headlamp. Refer to Headlamp Replacement
Disconnect the engine wiring harness electrical connector from the coolant temperature sensor.

Coolant Temperature Sensor

CAUTION: Refer to Fastener Caution .

Tip: Coolant temperature sensor is located in the generator control module coolant radiator.

Tighten: 20 N.m (15 lb in)
