Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not tip the battery over a 45 degree angle or acid could spill causing serious personal injury.
    Fig 1: Battery Hold Down Nuts
    GM1999432Courtesy of GENERAL MOTORS CORP.
  1. Install the battery to the vehicle.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the battery hold down nuts (1) and the battery hold down retainer bracket (2) and tighten to 10 N.m (89 lb in).
    3. Fig 2: Positive Battery Cable Terminal Nut
    GM1999419Courtesy of GENERAL MOTORS CORP.
  3. Install the positive battery cable terminal nut (1) and tighten to 5 N.m (45 lb in).

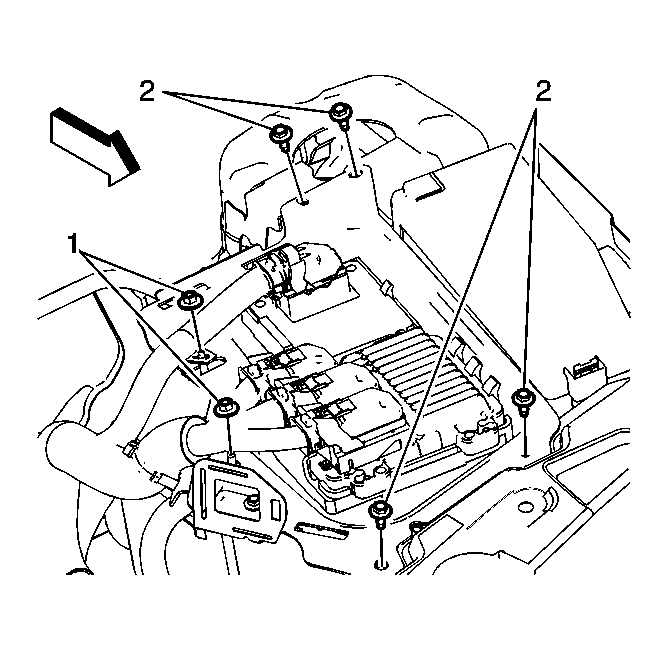

    4. Fig 3: ECM Bracket Bolts And Nuts
    GM2030262Courtesy of GENERAL MOTORS CORP.
  4. Install the ECM bracket, bolts (2) and nuts (1) and tighten to 10 N.m (89 lb in).
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (HP7) .
  6. Install the generator battery control module cover. Refer to Generator Control Module Cover Replacement .
