Section 1968 (Hybrid Controls - 2.4L (Hp7))
>>
Repair Instructions
>>
Generator Control Module Cover Replacement
Generator Control Module Cover Replacement
WARNING:
This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

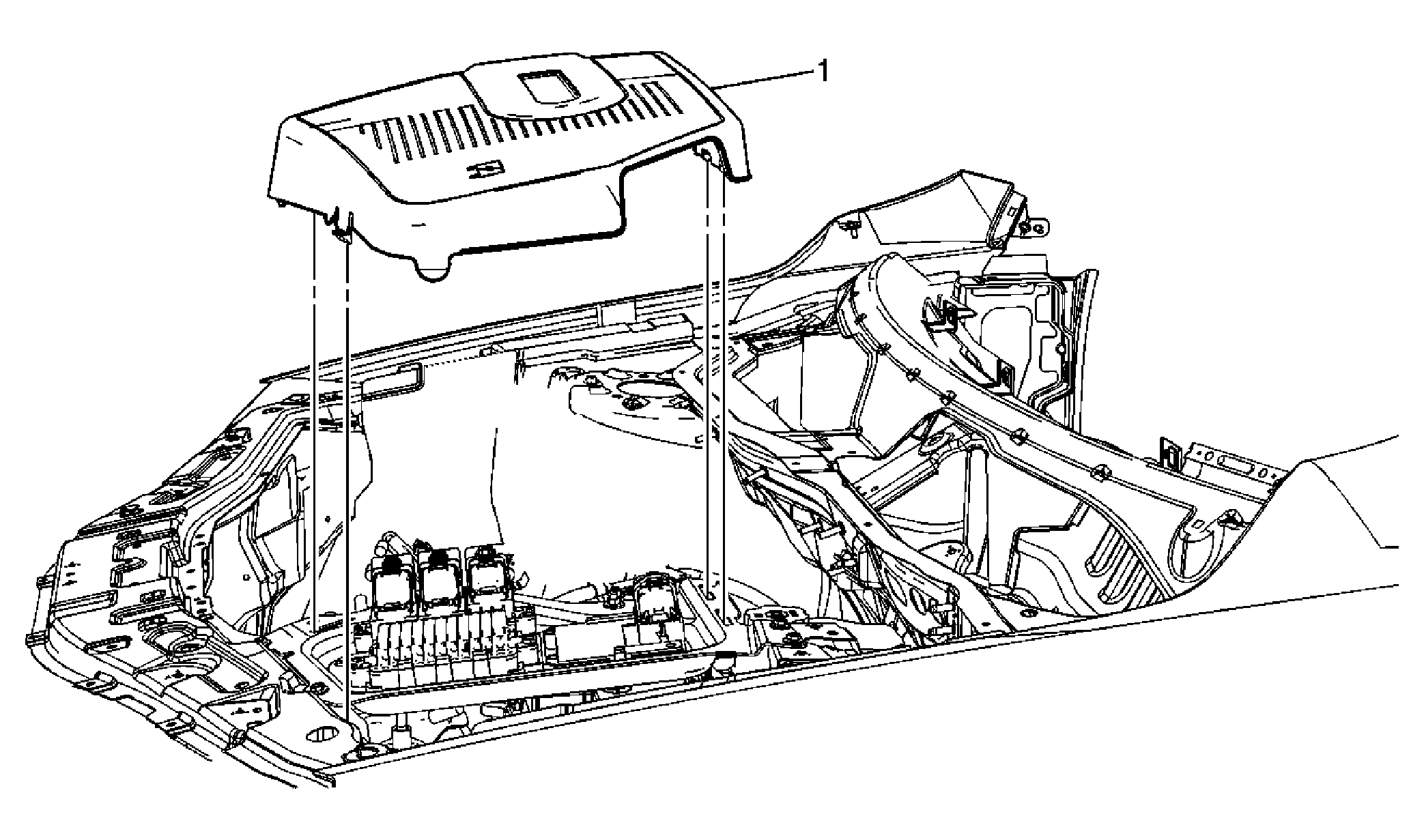

Fig 1: Generator Control Module Cover
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Generator Control Module Cover
