Battery Negative Cable Disconnection and Connection (HP7)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

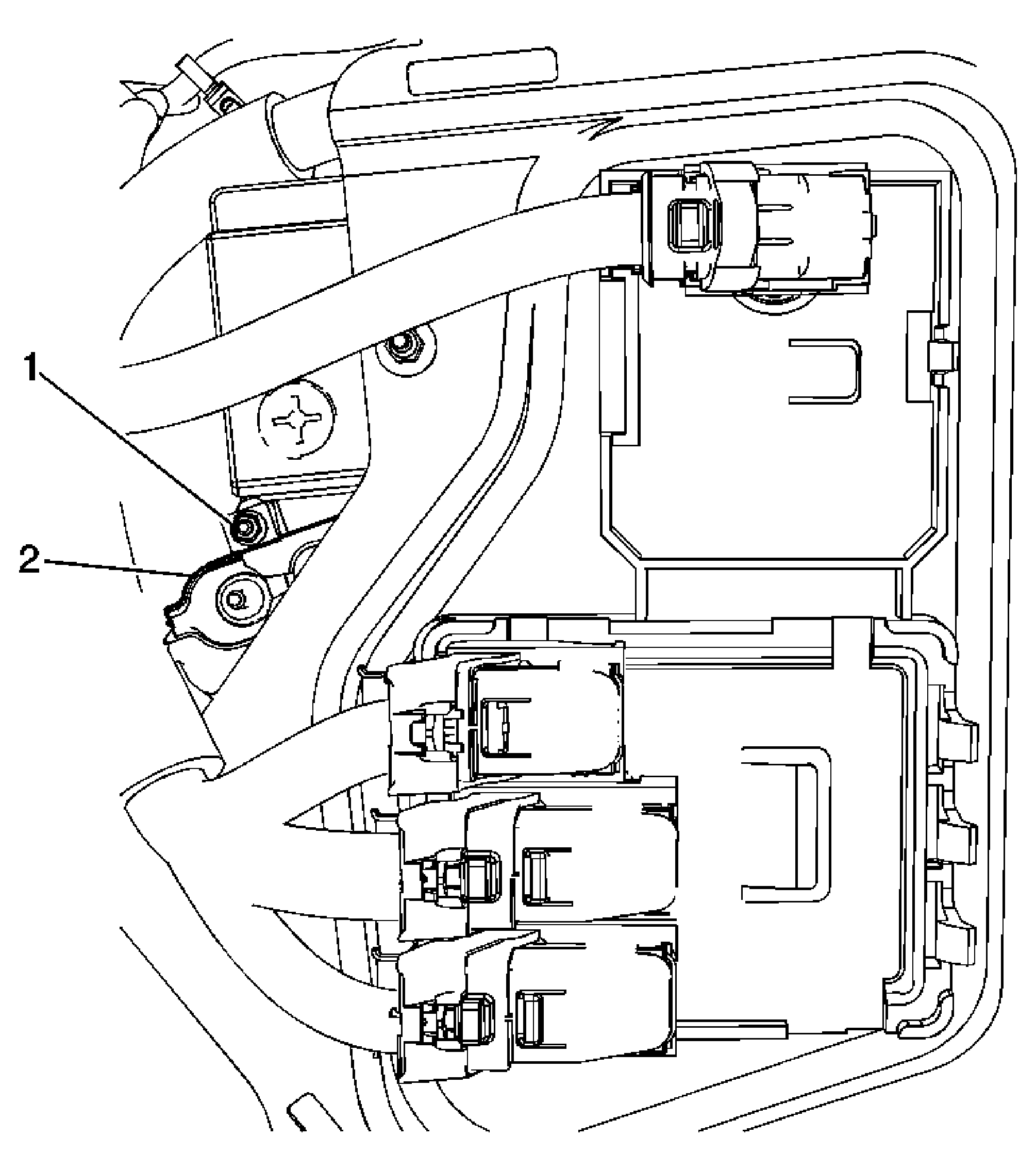

Fig 1: Battery Negative Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Turn on the radio and record all of the radio station presets. Ensure all lamps and accessories are turned off. Ensure the ignition switch is in the OFF position, and remove the ignition key. Remove the generator battery control module cover. Refer to Generator Control Module Cover Replacement .
1	Negative Battery Cable Terminal Nut CAUTION: Refer to Fastener Caution . Tighten: 5 N.m (45 lb in)
2	Negative Battery Cable Terminal

Callout

Component Name

Preliminary Procedures

Turn on the radio and record all of the radio station presets.
Ensure all lamps and accessories are turned off.
Ensure the ignition switch is in the OFF position, and remove the ignition key.
Remove the generator battery control module cover. Refer to Generator Control Module Cover Replacement .

Negative Battery Cable Terminal Nut

CAUTION: Refer to Fastener Caution .

Tighten: 5 N.m (45 lb in)

Negative Battery Cable Terminal
