Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

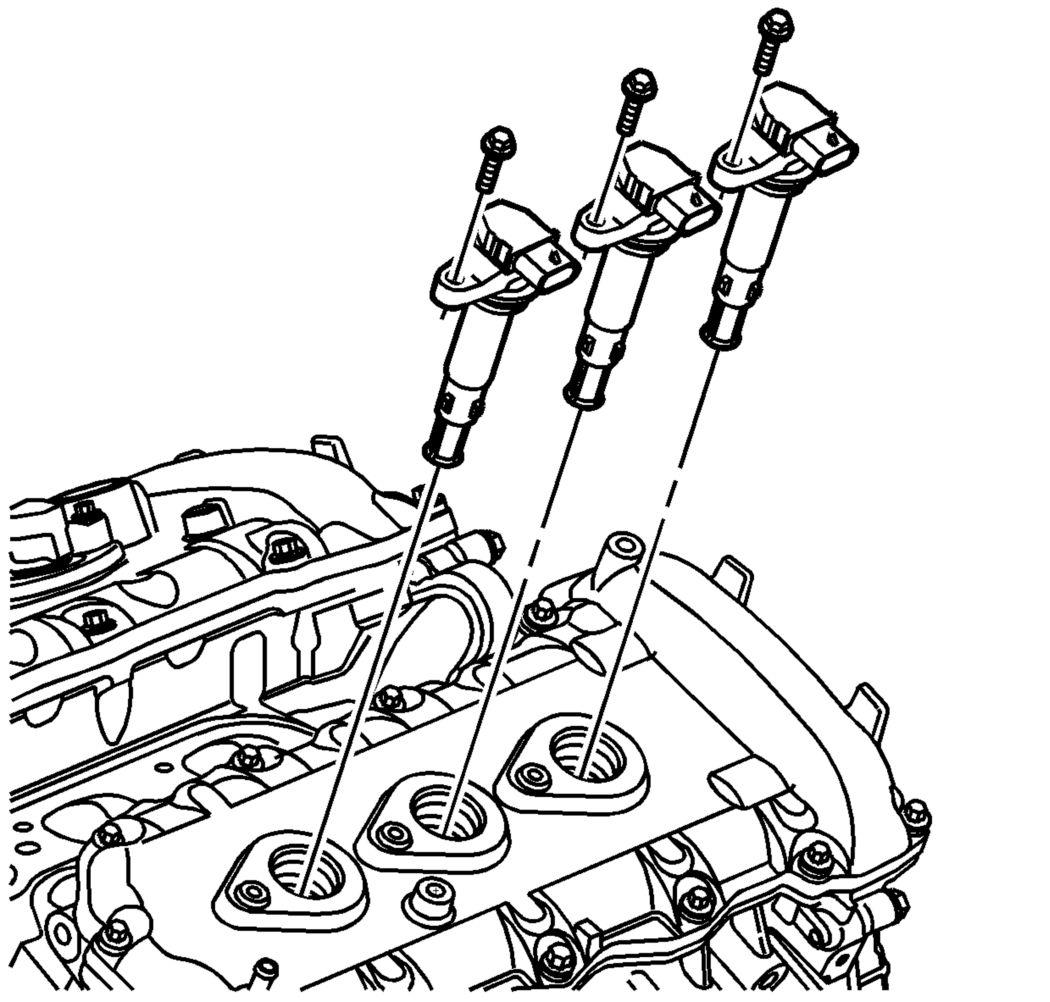

    Fig 1: Ignition Coil View
    GM860797Courtesy of GENERAL MOTORS CORP.
  1. Install the ignition coils.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the ignition coil bolts and tighten to 10 N.m (89 lb in).

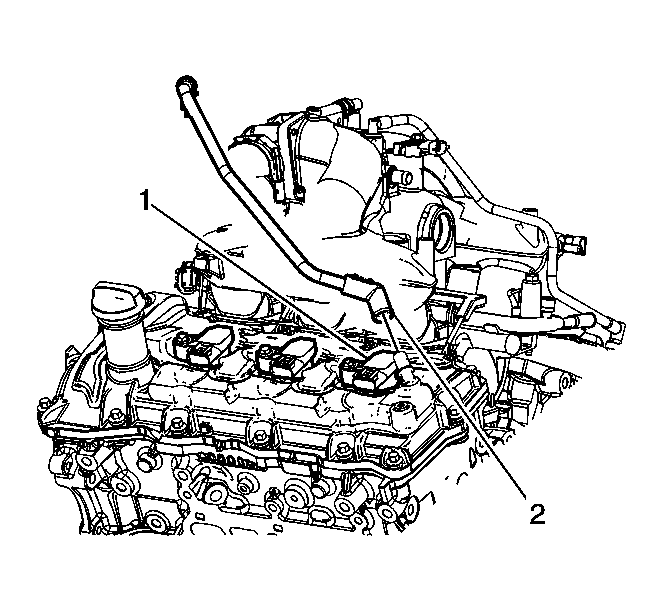

    3. Fig 2: Positive Crankcase Ventilation Fresh Air Line
    GM1889253Courtesy of GENERAL MOTORS CORP.
  3. If the number 6 ignition coil (1) was removed, connect the PCV fresh air line (2) to the camshaft cover.

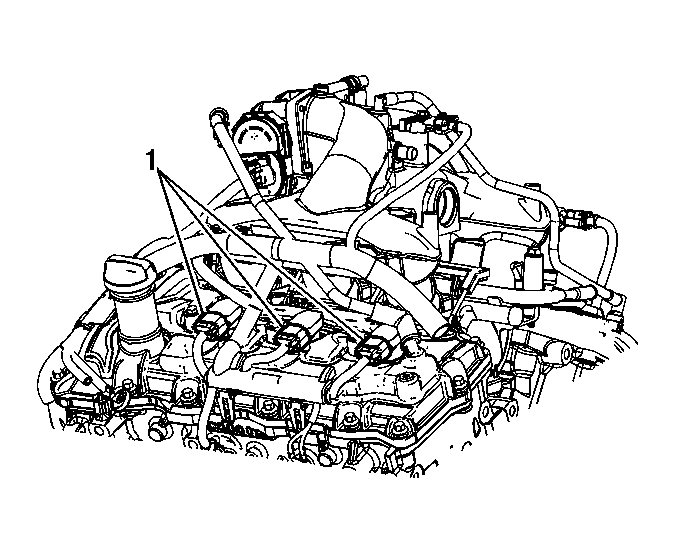

    4. Fig 3: Engine Wiring Harness Electrical Connectors
    GM1889243Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connectors (1) to the ignition coils.
  5. If number 4 or number 6 ignition coil was replaced, install the underhood electrical center. Refer to Underhood Electrical Center or Junction Block Replacement (HP7) or Underhood Electrical Center or Junction Block Replacement (HP5) .
  6. Install the air fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (LCS) .
