Underhood Electrical Center or Junction Block Replacement (HP5)
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

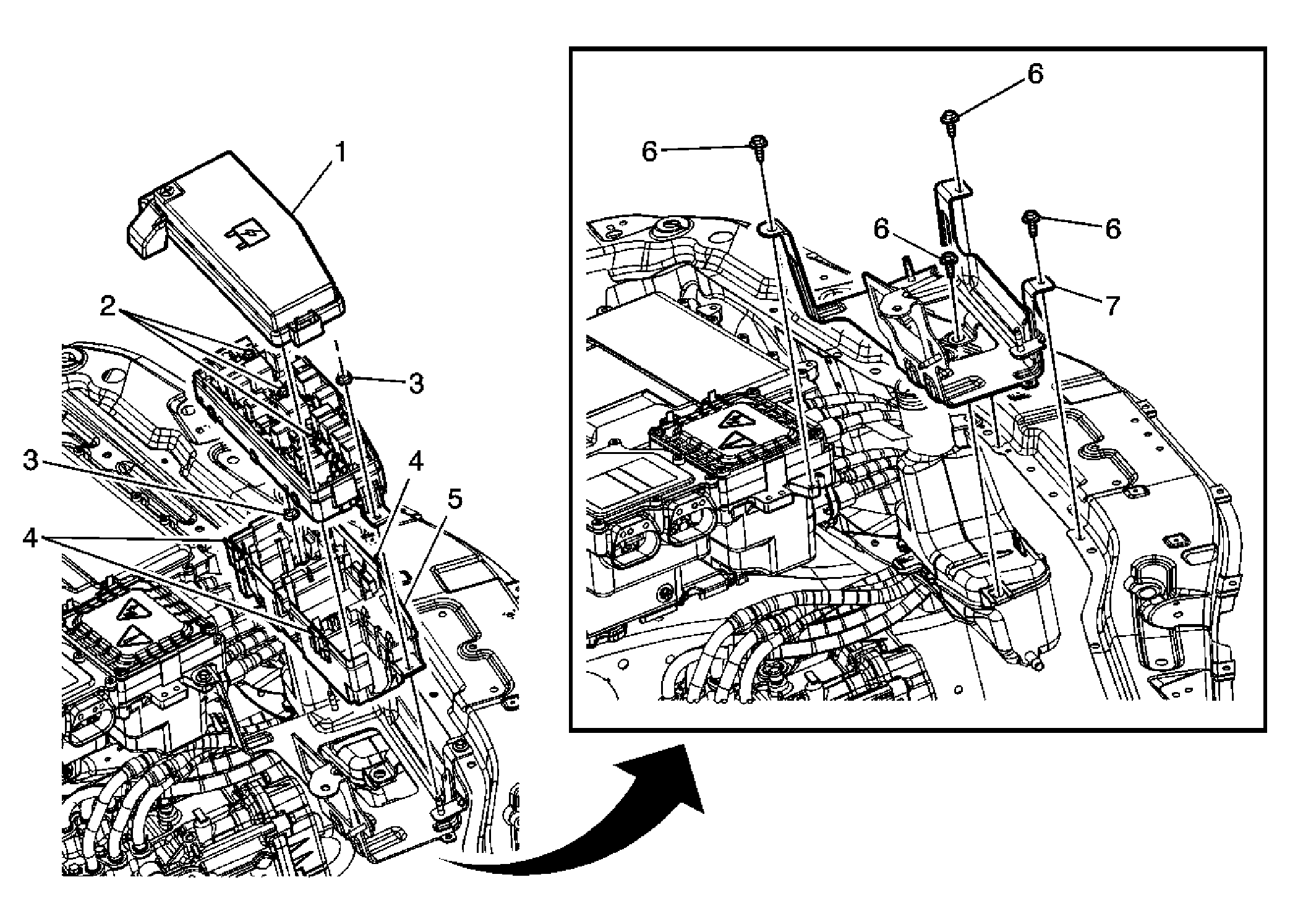

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . |
|
| 1 | Junction Block Cover |
| 2 | Junction Block Shield Bolt (Qty :3)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 3 | Junction Block Nut (Qty :2) Tighten: 10 N.m (89 lb in) |
| 4 | Junction Block Retainer Tab (Qty :3) |
| 5 | Junction Block Base |
| 6 | Junction Block Base Retainer Bracket Bolt (Qty :4) Tighten: 10 N.m (89 lb in) |
| 7 | Junction Block Base Retainer Bracket |
