Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

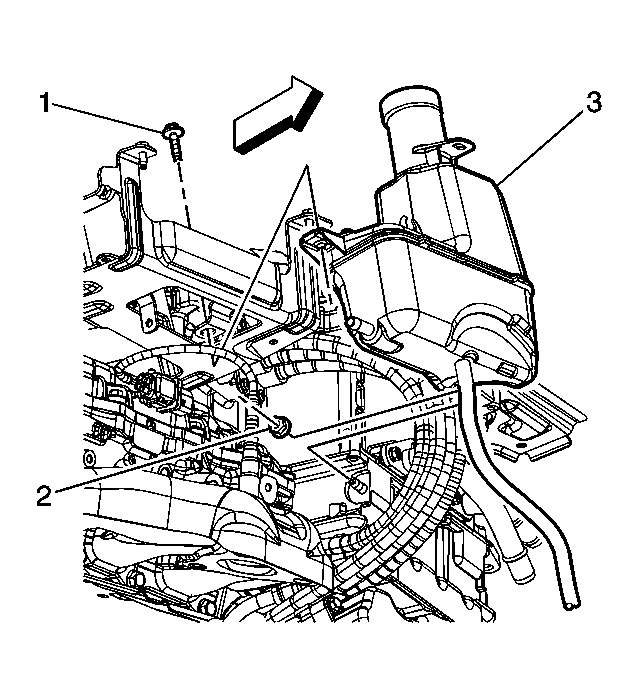

    Fig 1: Coolant Recovery Reservoir Bolt & Nut
    GM2158166Courtesy of GENERAL MOTORS CORP.
  1. Install the coolant recovery reservoir (3) to the vehicle.
  2. Clip the coolant recovery reservoir hose to the fan shroud.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the coolant recovery reservoir nut (2) and tighten to 7.5 N.m (66 lb in).
  4. Install the coolant recovery reservoir bolt (1) and tighten to 7.5 N.m (66 lb in).

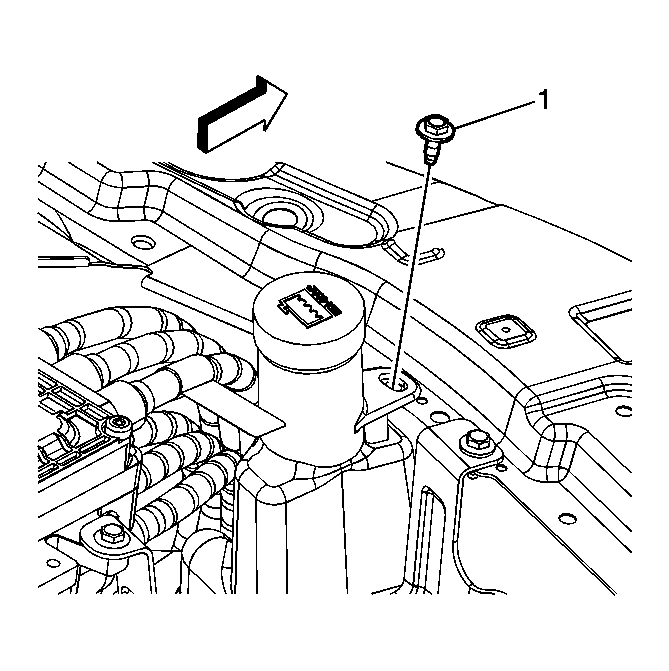

    5. Fig 2: Coolant Recovery Reservoir Bolt
    GM2158169Courtesy of GENERAL MOTORS CORP.
  5. Install the coolant recovery reservoir bolt (1) and tighten to 7.5 N.m (66 lb in).
  6. Install the radiator vent inlet hose. Refer to Radiator Vent Inlet Hose Replacement (HP5)
  7. Install the underhood junction block. Refer to Underhood Electrical Center or Junction Block Replacement (HP5)
  8. Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5)  or Cooling System Draining and Filling (GE 47716 Fill With HP5)
