Rear Side Door Outside Handle Housing Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

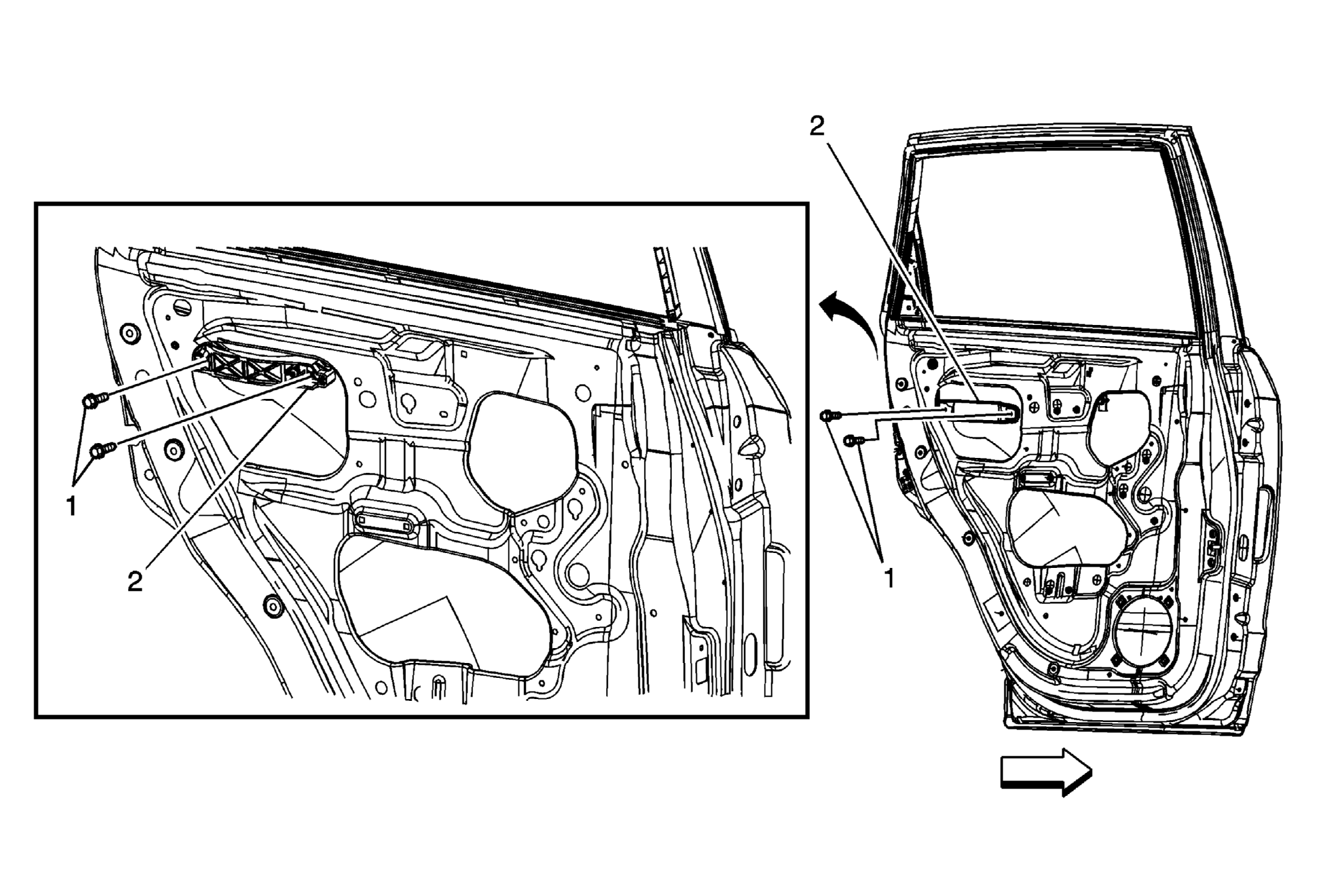

Fig 1: Rear Side Door Outside Handle Housing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the rear side door outside handle. Refer to Rear Side Door Outside Handle Replacement . Remove the rear side door latch. Refer to Rear Side Door Latch Replacement .
1	Rear Side Door Outside Handle to Housing Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure: Disconnect the rear side door latch and handle rods to remove the housing. Tighten: 10 N.m (89 lb in)
2	Rear Side Door Outside Handle Housing Procedures Disconnect the rear side door latch electrical connector. Release the rear inside door handle cable retainers before removing the rear side door latch.

Callout

Component Name

Preliminary Procedures

Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the rear side door outside handle. Refer to Rear Side Door Outside Handle Replacement .
Remove the rear side door latch. Refer to Rear Side Door Latch Replacement .

Rear Side Door Outside Handle to Housing Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Procedure:
Disconnect the rear side door latch and handle rods to remove the housing.

Tighten: 10 N.m (89 lb in)

Rear Side Door Outside Handle Housing

Procedures

Disconnect the rear side door latch electrical connector.
Release the rear inside door handle cable retainers before removing the rear side door latch.
