Rear Side Door Latch Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

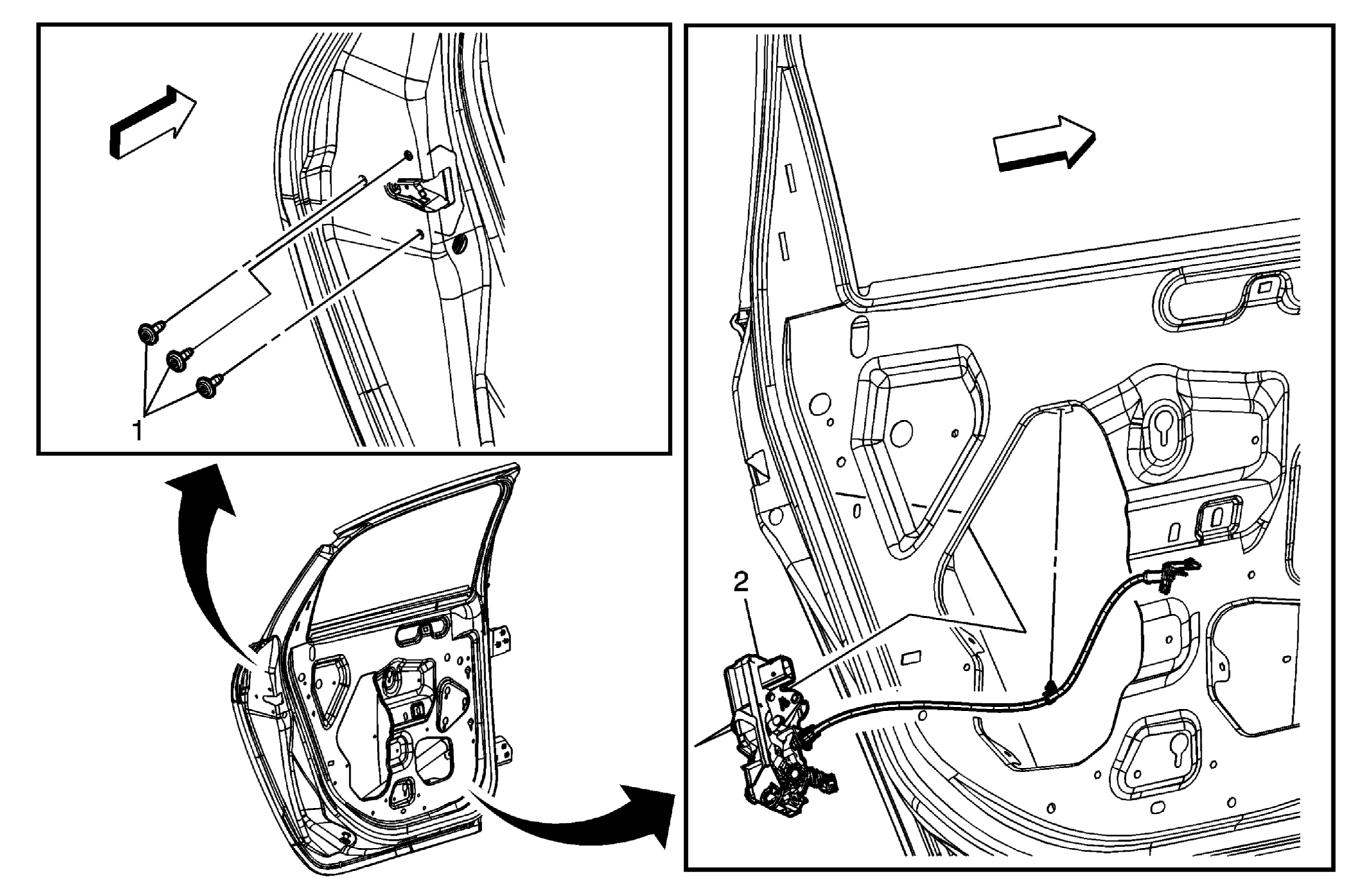

Fig 1: Rear Side Door Latch
GM1868787Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedures:
Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement .
1 Rear Side Door Latch Bolt (Qty: 3)
CAUTION: Refer to Fastener Caution .

Procedures

  1. Remove the water deflector.
  2. Release the inside door handle cable retainers before removing the rear side door latch.

Tighten:  10 N.m (89 lb in)
2 Rear Side Door Latch Assembly

Procedures

  1. Disconnect the rear side door latch electrical connector.
  2. Transfer the rear side door latch rods.
