Rear Side Door Trim Panel Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

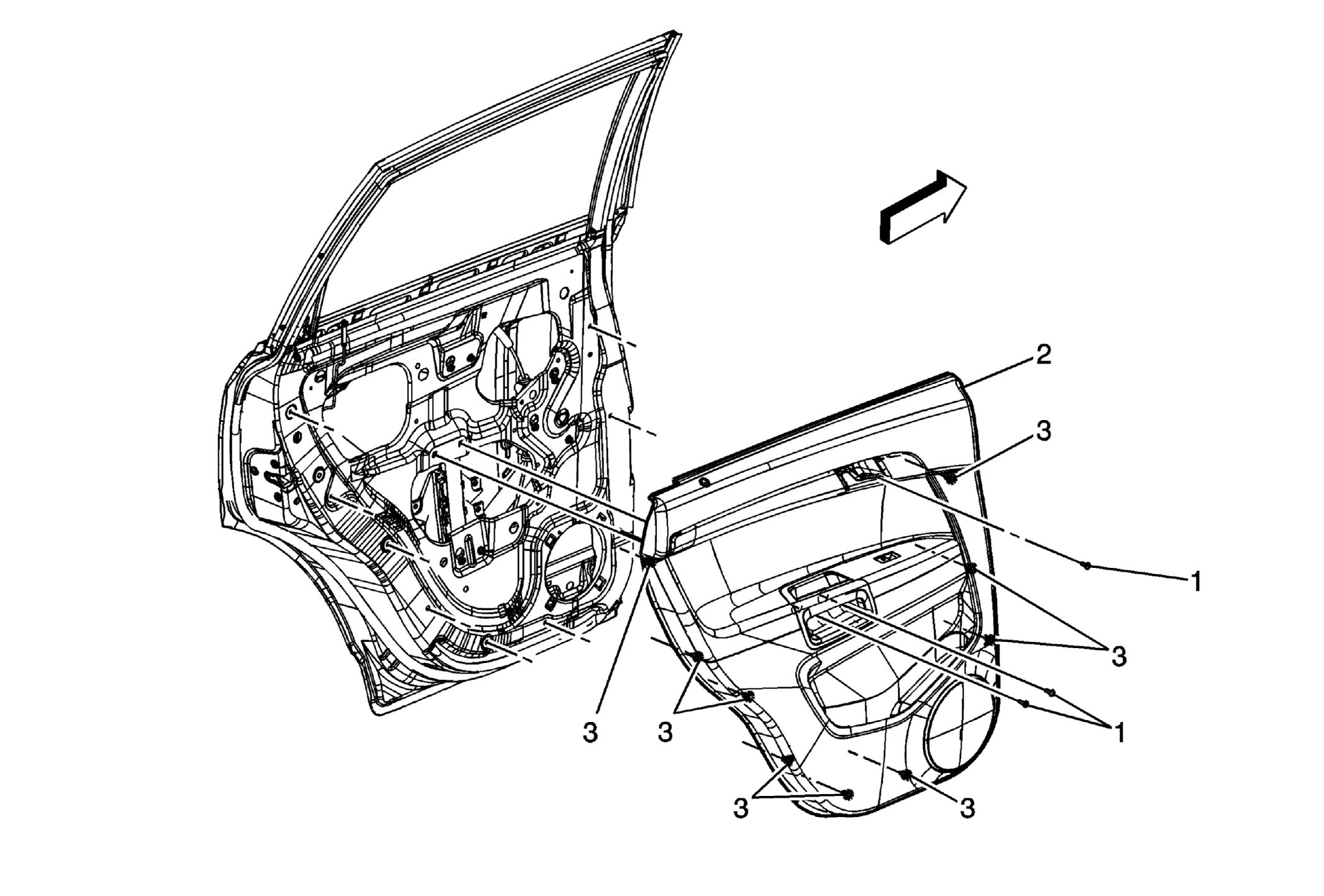

Fig 1: Rear Side Door Trim Panel
GM1873842Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the rear side door upper rear trim panel. Refer to Rear Side Door Upper Rear Trim Panel Replacement .
1 Rear Side Door Trim Panel Screw (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten:  2 N.m (18 lb in)
2 Rear Side Door Trim Panel Assembly

Procedure

  1. Disengage the door lock cable.
  2. Disconnect the electrical connector.
3 Rear Side Door Trim Panel Retainer (Qty: 9)
