Rear Seat Back Cushion Frame Replacement (with 40 Percent Seat)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

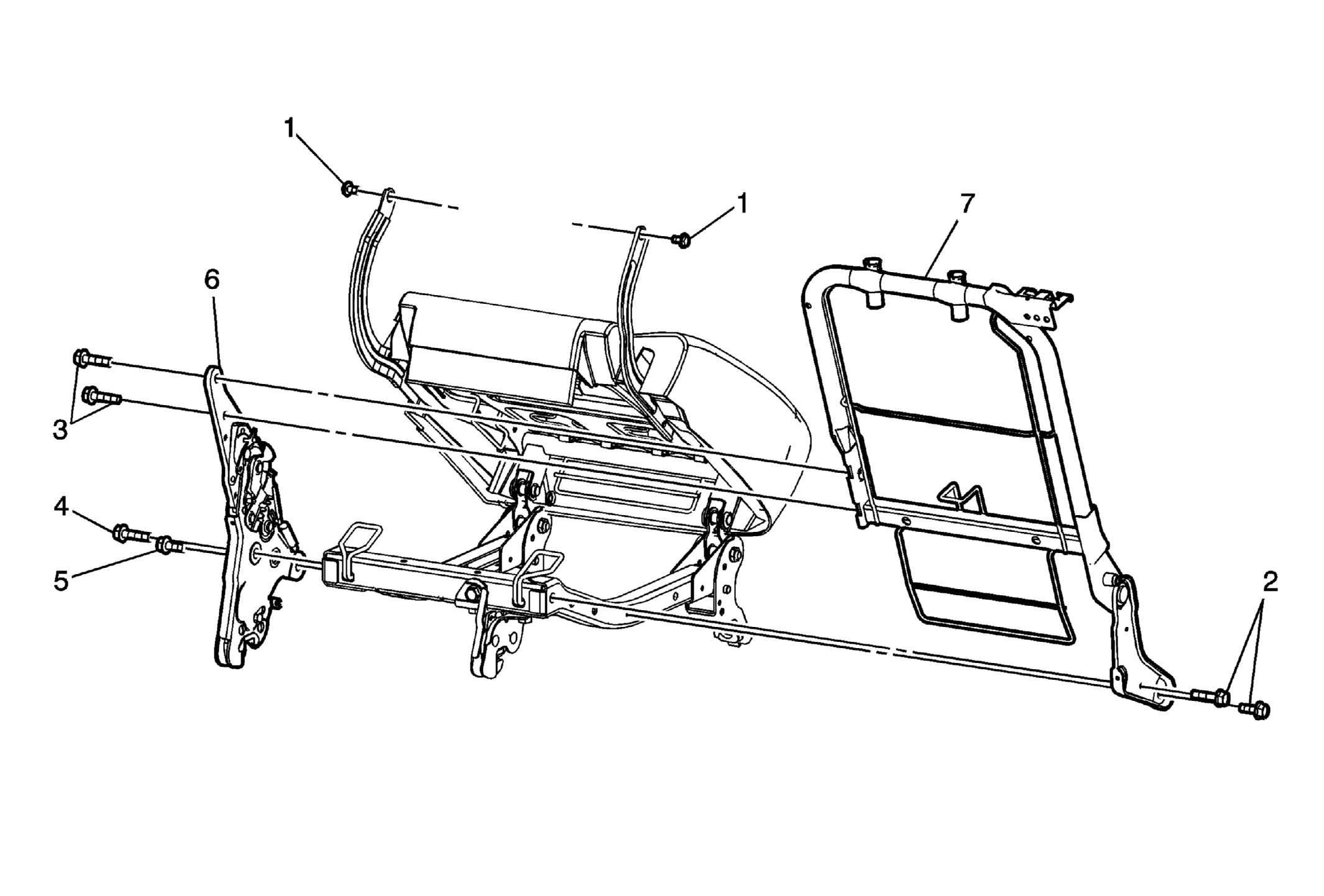

Fig 1: Rear Seat Back Cushion Frame

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Replacement . Remove the rear seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (with 60 Percent Seat) or Rear Seat Back Cushion Cover and Pad Replacement (with 40 Percent Seat) . Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (with 60 Percent Seat) .
1	Rear Seat Cushion Frame Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Rear Seat Cushion Frame Bolt (Qty: 2) Tighten: 45 N.m (33 lb ft)
3	Rear Seat Cushion Frame Bolt (Qty: 2) Tighten: 45 N.m (33 lb ft)
4	Rear Seat Belt Buckle Bolt Tighten: 28 N.m (21 lb ft)
5	Rear Seat Recliner Bolt Tighten: 28 N.m (21 lb ft)
6	Rear Seat Recliner Assembly
7	Rear Seat Back Cushion Frame Assembly
